Pacific Scientific 6410-007-N-N-N Stepper Drive

Product Introduction & Engineering Value

The 6410-007-N-N-N is useful in legacy motion-control equipment where the original stepper-drive configuration must be preserved rather than substituted with a physically similar modern drive. Its 24–75 VDC supply range and selectable phase-current settings accommodate a range of two-phase stepper motors.

For maintenance teams, the exact suffix matters. The -007 variant is listed separately from other 6410 configurations, while the three -N positions identify a specific mechanical/accessory configuration. Treat the complete part number as the replacement reference instead of assuming that another 6410 drive is electrically interchangeable.

Technical Specifications

The published specifications indicate that current capability depends strongly on thermal conditions. One reference lists 5 A RMS with a heat sink, while the no-heat-sink condition is substantially more restrictive.

Field Application & The “Trench” Experience

A practical replacement scenario would be an older packaging machine using a Pacific Scientific 6410 drive to index a web-handling axis. The machine still has a functional controller and motor, but the original drive begins tripping intermittently during acceleration. Rather than changing the PLC motion profile and motor wiring at the same time, the maintenance team verifies the complete drive number, supply voltage, motor phase current, and microstep settings before installing an exact 6410-007-N-N-N replacement.

The critical point is not simply getting the motor to turn. The replacement has to reproduce the expected current setting and step resolution so that the existing controller’s pulse-to-distance relationship remains valid.

Specific application scenarios include:

1. Packaging machine indexing axes — precise incremental positioning of sealing, cutting, or labeling mechanisms.
2. Web-handling equipment — controlled stepper movement where repeatable low-speed positioning is required.
3. Small pick-and-place mechanisms — open-loop stepper axes using high microstep resolution for fine positioning.

The 6410 family is documented for STEP/DIRECTION operation, microstepping, current regulation, and two-phase stepper-motor control.

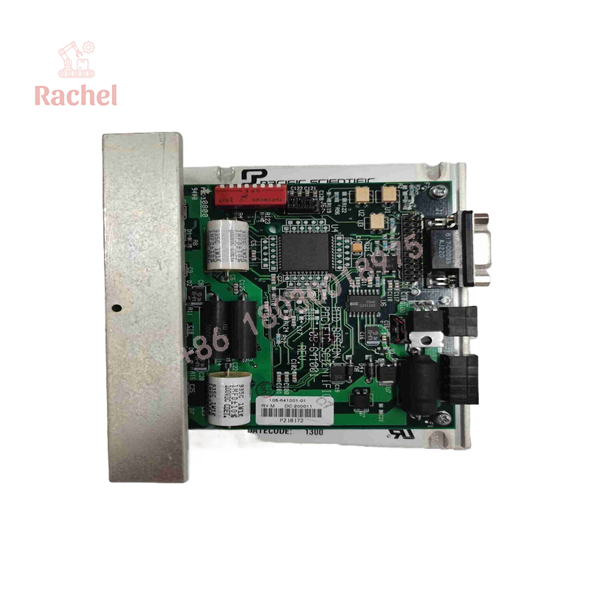

6410-007-N-N-N

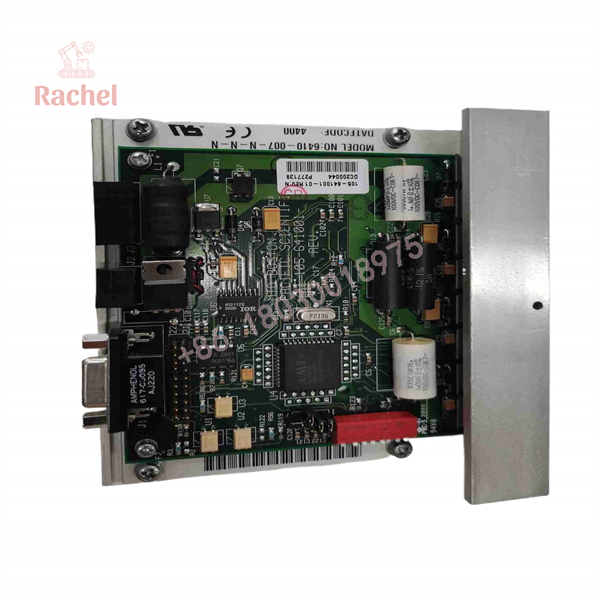

6410-007-N-N-N

QA & Testing

For new-surplus or refurbished 6410-007-N-N-N stock, a meaningful inspection should go beyond checking whether the PCB powers up.

1. Part-number verification — confirm 6410-007-N-N-N, board markings, revision information, and physical configuration.
2. Visual inspection — examine the PCB, power components, terminals, connectors, solder joints, and mounting areas for corrosion, impact, contamination, or previous repair work.
3. DC power test — apply controlled DC power within the specified 24–75 VDC range and monitor startup behavior and fault conditions.
4. Motion test — connect an appropriate two-phase stepper motor or controlled test fixture and verify STEP/DIRECTION response.
5. Current verification — check selectable current settings against the intended motor winding rating.
6. Microstep verification — verify the configured resolution and confirm that the drive responds consistently across the selected step modes.

Because the -N-N-N version does not include a factory heat sink or cover, thermal installation should be verified separately during commissioning.

Veteran’s Tech Trap Guide

⚠️ Trap #1 — Treating every 6410 as interchangeable.
The 6410 family contains multiple suffix configurations, including 001, 006, 007, 008, 009, 020, 024, and others. A physically similar drive is not automatically an equivalent replacement.

⚠️ Trap #2 — Ignoring thermal design.
The -N heat-sink configuration does not mean the drive can simply be left floating inside a cabinet. The published specifications distinguish current capability according to thermal conditions. Cooling-plate installation and cabinet airflow need to be considered before operating at higher phase current.

PRO TIP: Record the original drive’s current-switch and microstep settings before removing it. Replacing the hardware without documenting these settings can produce a motor that runs but no longer reaches the expected position or acceleration profile.

⚠️ Trap #3 — Forgetting ESD protection.
The bare-card -N-N-N configuration exposes the electronics more directly than an enclosed assembly. Handle the board using appropriate ESD controls during installation and inspection.

FAQ

What is the Pacific Scientific 6410-007-N-N-N?

It is a 6410 Series two-phase microstepping stepper drive designed to convert STEP/DIRECTION commands into regulated motor phase current.

What power supply does it use?

The published operating range is 24 to 75 VDC.

What is the maximum current rating?

The 6410 platform is specified for up to 5.0 A RMS with suitable thermal management, with a 7.1 A peak rating. Actual allowable continuous current depends on the installation and thermal conditions.

What does -N-N-N mean?

Available 6410 documentation identifies the three suffix positions as no cover, no heat sink, and no connector kit. Verify the exact configuration against the equipment documentation before ordering.

Is 6410-007-N-N-N a discontinued product?

A secondary equipment reference lists the 6410-007-N-N-N as discontinued, so current procurement is generally handled through existing inventory, new-surplus, exchange, or repair channels rather than ordinary new production.

How should I verify New Surplus authenticity?

Ask for clear photographs of the actual unit, including the complete 6410-007-N-N-N nameplate or identification marking, PCB condition, and connector area. For higher-value purchases, request documented functional testing and confirmation that the unit has not been substituted with another 6410 suffix.

Procurement note: For an exact replacement, specify Pacific Scientific 6410-007-N-N-N in the purchase request rather than simply requesting a “6410 stepper drive.” The 6410 family contains multiple configuration variants.
