Description
Product Introduction & Engineering Value
The Pacific Scientific 6445-001-K-N belongs to the company’s legacy motion-control hardware portfolio and is associated with servo-drive applications. These older Pacific Scientific systems remain relevant in machine tools, material handling, semiconductor equipment, and other machines where replacing the complete motion platform would be considerably more disruptive than maintaining the existing drive architecture.
For replacement procurement, the complete 6445-001-K-N designation matters. Servo drives are tightly coupled to motor characteristics, feedback devices, command signals, and tuning parameters. A superficially similar amplifier is not necessarily a valid substitute.
Technical Specifications
- Manufacturer: Pacific Scientific
- Part Number: 6445-001-K-N
- Series: 6445
- Product Category: Servo amplifier / drive
- Application: Industrial motion control
- Control Type: Closed-loop servo control
- Motor Compatibility: Must be matched to the original motor
- Feedback Compatibility: Must be verified against the installed feedback device
- Command Interface: Verify from system documentation
- Power Configuration: Verify from nameplate
- Drive Firmware/Revision: Verify before replacement
- Mounting: Cabinet/machine dependent
- Lifecycle: Legacy/discontinued equipment
Engineering note
I would not assign a specific input voltage, continuous current, peak current, motor horsepower, or feedback type to the 6445-001-K-N without the corresponding Pacific Scientific documentation or nameplate data. Servo-drive specifications can vary substantially between closely related catalog variants.

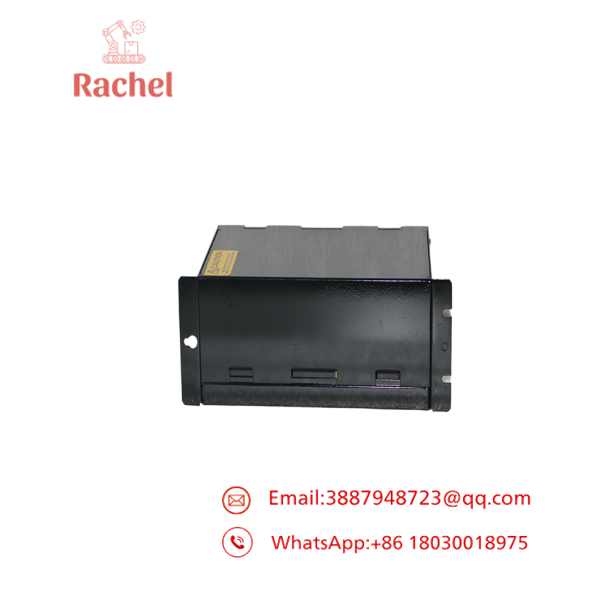

6445-001-K-N

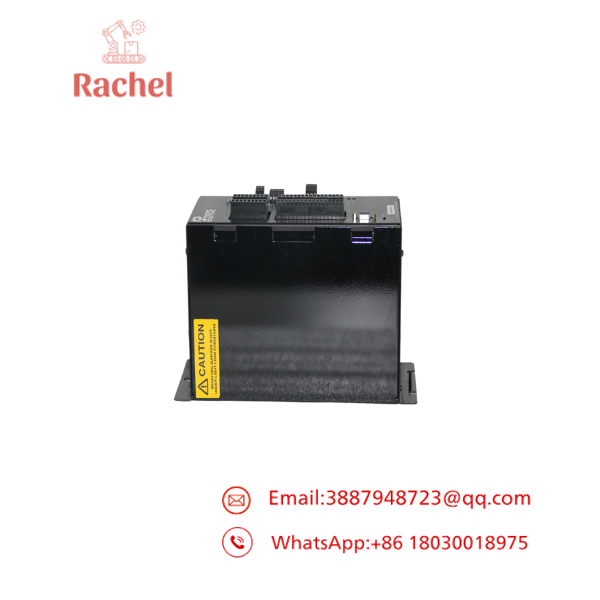

6445-001-K-N

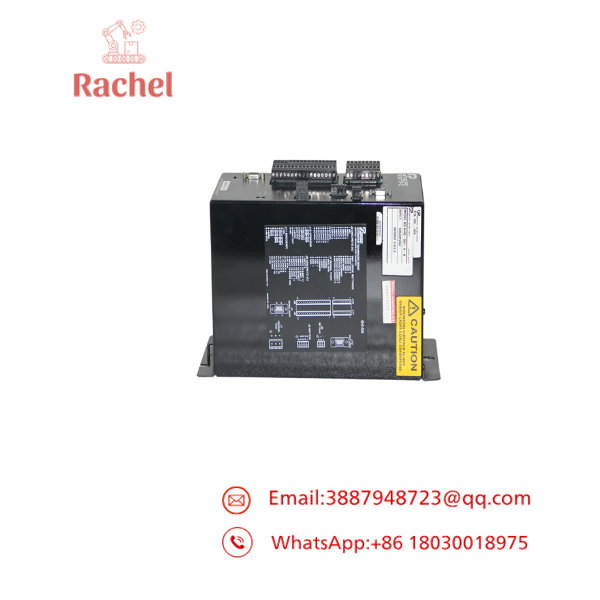

6445-001-K-N
Field Application & the “Trench” Experience
A machine has been running for years with a Pacific Scientific motion-control system. One axis suddenly faults during acceleration. The maintenance team has a spare marked 6445-001-K-N, but simply installing the spare does not guarantee that the axis will return to service.
The technician first records the original drive’s motor model, feedback type, command configuration, adjustment settings, and drive identification. The replacement is then compared against those records before power is applied.
That sequence matters. An incorrect servo amplifier can create a much larger problem than the original drive failure.
Specific application scenarios
- Precision machine-tool axis control — Maintaining an established servo axis without replacing the complete machine controller.
- Semiconductor equipment motion — Supporting legacy positioning mechanisms where drive/motor matching is critical.
- Material-handling machinery — Maintaining controlled acceleration, deceleration, and positioning on an established servo axis.
Transparency SOP: QA & Testing
For new-surplus or refurbished Pacific Scientific 6445-001-K-N inventory, a meaningful test should include both electrical inspection and servo operation.
- Part-number verification — Confirm the complete 6445-001-K-N identification.
- Visual inspection — Check terminals, connectors, housing, PCB condition, and signs of overheating.
- Component inspection — Look for damaged capacitors, power components, relays, and connectors.
- Static electrical testing — Check for obvious shorts or abnormal resistance before energizing.
- Controlled power-up — Apply the correct supply using appropriate current protection.
- Control-interface test — Verify command inputs and drive status signals.
- Motor test — Use a compatible Pacific Scientific motor or approved test fixture.
- Feedback test — Confirm proper feedback recognition.
- Motion test — Verify acceleration, deceleration, direction, and stable operation.
- Final documentation — Record drive revision, motor used for testing, fault status, and test results.
A seller stating that a servo drive “powers on” has demonstrated very little. Actual motor/feedback operation is the meaningful test.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Matching the drive without matching the motor.
The drive and motor form a system. Verify motor model, winding characteristics, current requirements, and feedback device before commissioning.
PRO TIP: Photograph the original drive and motor nameplates together before removing either component.
⚠️ Trap #2 — Forgetting the feedback device.
A servo motor can be mechanically correct while its resolver or encoder configuration is incompatible with the replacement drive.
⚠️ Trap #3 — Losing original tuning information.
Replacing the amplifier does not necessarily mean the machine will immediately have the same dynamic response. Record gain, compensation, current limits, and other application settings where accessible.
⚠️ Trap #4 — Powering an unverified surplus drive.
Before energizing a decades-old drive, inspect for failed capacitors, contamination, corrosion, and insulation problems. A controlled bench test is preferable to putting an unverified unit directly into a production machine.
Dynamic FAQ
What is Pacific Scientific 6445-001-K-N?
The 6445-001-K-N is a legacy Pacific Scientific motion-control component associated with servo-drive/amplifier applications.
Is it a servo motor?
No. The part is associated with the drive/amplifier side of a servo system. The compatible motor and feedback device must be identified separately.
Can I replace it with another Pacific Scientific 6445-series drive?
Not automatically. The exact part number, electrical ratings, motor compatibility, feedback type, command interface, and application configuration must match.
What should I check before ordering?
At minimum, verify:
- Complete 6445-001-K-N part number
- Original drive nameplate
- Motor model
- Feedback device
- Input power
- Command/interface wiring
- Drive revision
- Machine or controller model
Is refurbished stock suitable for a production spare?
It can be, particularly for obsolete equipment, but request evidence of functional servo testing, not merely a power-on test.
What should “new surplus” mean for this part?
New-surplus should mean unused inventory that was previously manufactured and stored rather than previously installed and repaired. Ask the supplier for photographs of the actual unit, original labels, storage condition, and warranty.
What warranty should I request?
Obtain written warranty coverage for functional operation. For a servo amplifier, also ask whether the warranty covers failures discovered during motor/feedback testing.
