Description
Product Introduction & Engineering Value
The 1FK7100-5AZ91-1ZZ9-ZS05 is a configured 1FK7-series permanent-magnet synchronous servo motor. The important detail is the complete ordering code. With Siemens/KUKA motor designations, the suffix is not decorative; it identifies configuration options that can affect mechanical installation, feedback, connection, and system compatibility.
For a KUKA robot application, replacing the motor with a generic 1FK7 motor is not a safe shortcut. Match the complete designation against the motor installed on the robot axis, the KUKA controller configuration, and the associated drive/feedback system.
Technical Specifications
- Manufacturer / Technology: Siemens SIMOTICS S; used in KUKA motion systems
- Motor Series: 1FK7
- Complete Order Number: 1FK7100-5AZ91-1ZZ9-ZS05
- Motor Type: Permanent-magnet synchronous servo motor
- Motor Class: SIMOTICS S servo motor
- Frame: 1FK7100
- Feedback: Configuration-dependent; verify the complete order code before replacement
- Mechanical Configuration: Configuration-dependent
- Electrical Ratings: Configuration-dependent
- Cooling: Configuration-dependent
- Connector/Cable Arrangement: Configuration-dependent
- Application: Servo-axis motion and robotic positioning
A critical ordering point
The complete 1FK7100-5AZ91-1ZZ9-ZS05 designation should be treated as the identification standard. Do not quote only 1FK7100 when purchasing a replacement.
The Siemens 1FK7 family contains numerous variants with different winding, feedback, mechanical, and connection configurations. A motor that shares the same basic frame designation can still be unsuitable for the installed KUKA axis.
Field Application & the “Trench” Experience
A typical failure occurs after years of robot operation: an axis begins generating drive faults, position errors, or abnormal following-error alarms. Maintenance initially suspects the drive or feedback circuit. Eventually, the motor itself is found to have degraded bearings, insulation problems, or feedback-related faults.
The maintenance mistake is ordering a motor based only on 1FK7100.
The installed unit carries the complete 1FK7100-5AZ91-1ZZ9-ZS05 designation for a reason. On a KUKA robot, the motor must agree with the axis drive and feedback configuration. Installing the wrong variant can turn a straightforward motor replacement into a commissioning problem.
Niche application scenarios
- KUKA robotic handling axis — Replacement of a failed servo motor on an established robot axis without changing the controller architecture.
- Automotive spot-welding robot — Restoring precise axis motion after motor bearing or feedback failure.
- High-duty material-transfer robot — Maintaining an existing servo package where matching the original motor configuration is more practical than redesigning the motion system.

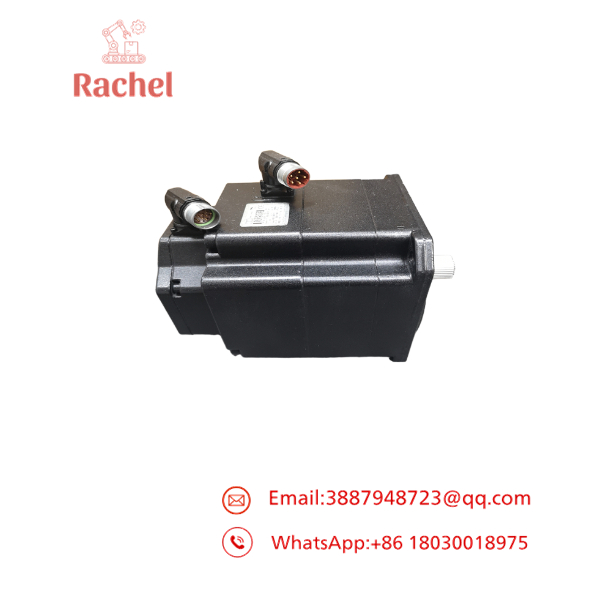

1FK7100-5AZ91-1ZZ9-ZS05

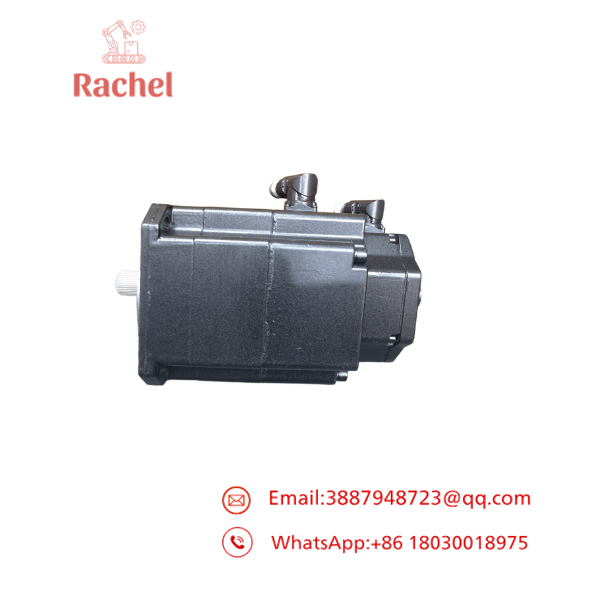

1FK7100-5AZ91-1ZZ9-ZS05
Transparency SOP: QA & Testing
For new-surplus or refurbished servo motors, QA should go beyond confirming that the shaft turns.
Incoming inspection checklist:
- Verify the complete 1FK7100-5AZ91-1ZZ9-ZS05 nameplate.
- Photograph the nameplate and connector configuration.
- Inspect the shaft, flange, housing, and mounting surfaces.
- Check connectors and cable interfaces for damage.
- Inspect for corrosion, impact damage, contamination, or evidence of previous repair.
- Perform appropriate winding resistance and insulation checks.
- Check shaft rotation and mechanical condition.
- Verify the feedback device where applicable.
- Perform a controlled drive test using compatible equipment.
- Record test results and serial information.
For a robot spare, the final acceptance test should ideally include operation with the applicable KUKA/Siemens drive system rather than relying solely on a bench electrical test.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Matching only the 1FK7100 prefix.
This is the classic procurement error. The complete suffix determines the actual configuration. 1FK7100 by itself is not enough information to establish interchangeability.
PRO TIP: Send the supplier a photograph of the original motor nameplate and request a photograph of the replacement nameplate before shipment.
⚠️ Trap #2 — Ignoring the feedback system.
A servo motor is not just a three-phase motor. The drive needs compatible position feedback. A motor with a different encoder/resolver configuration can produce an immediate commissioning problem even when the mechanical dimensions appear correct.
⚠️ Trap #3 — Checking only mechanical fit.
Same flange and shaft dimensions do not guarantee electrical compatibility. Winding data, feedback, rated speed, torque characteristics, and drive parameters all matter.
⚠️ Trap #4 — Treating a refurbished motor like a new motor.
For refurbished stock, ask whether the bearings, feedback device, seals, and winding insulation were tested. A visual refurbishment is not equivalent to a documented functional overhaul.
Dynamic FAQ
What is KUKA 1FK7100-5AZ91-1ZZ9-ZS05?
It is a 1FK7-series SIMOTICS S permanent-magnet synchronous servo motor associated with Siemens motor technology and used in industrial motion applications, including KUKA robotic systems.
Is 1FK7100-5AZ91-1ZZ9-ZS05 a KUKA-specific motor?
The 1FK7 designation is a Siemens SIMOTICS S motor designation. KUKA equipment can use Siemens motor technology, but the exact relationship depends on the robot and axis configuration. The complete order number should therefore be used when sourcing the replacement.
Can another 1FK7100 replace this motor?
Not automatically. The complete order code, winding configuration, feedback device, mechanical configuration, and KUKA/drive parameters must be checked before substitution.
What should I verify before ordering?
At minimum:
Complete order number → nameplate → motor revision → feedback type → mechanical configuration → drive compatibility → shaft/flange dimensions.
For a critical robot axis, also confirm the original motor’s serial number and physical connector arrangement.
Is new-surplus stock acceptable?
Yes, provided the supplier can establish the unit’s condition and identity. For new-surplus equipment, request confirmation that the motor has not previously been installed and ask for actual photographs of the nameplate.
What warranty should I request?
Warranty depends on the supplier and condition. For a production-critical servo motor, obtain written coverage for both the motor itself and the return procedure if the unit fails installation or functional testing.
Does the ZS05 suffix matter?
Yes. Treat as part of the complete order designation. Do not assume that a motor without the same suffix is equivalent until the relevant Siemens/KUKA documentation confirms the configuration.
