Description
Product Introduction
The Lam Research 810-046015-010 is an industrial-grade printed circuit board assembly engineered for high-precision signal routing and subsystem control in semiconductor processing tools. Installed directly inside the gas management, RF generator bay, or vacuum transfer module, this board handles crucial low-latency communications between local sensor networks and the main tool rack controller.
Designed specifically to meet strict fab uptime standards, the 810-046015-010 features multi-layer isolation designed to eliminate cross-talk and survive harsh electro-magnetic environments generated by nearby plasma sources. Its high-grade copper traces and corrosion-resistant surface coatings ensure long-term stability under continuous 24/7 manufacturing cycles.
Key Technical Specifications
| Parameter | Value / Description |
| Manufacturer | Lam Research Corporation |
| Part Number | 810-046015-010 |
| Board Assembly Type | Specialized Subsystem Interface PCBA |
| System Compatibility | Lam Etch / Deposition Process Modules |
| Operating Voltage | Logic Rail Driven (Typically 5V/24VDC depending on bus) |
| Signal Interconnects | High-density gold pin multi-pin headers / edge connector |
| Board Construction | Multi-Layer FR4 with conformal protective coating |
| Operating Temp Range | 10°C to +60°C |
Application Scenarios & The “Trench” Experience
Picture a fully loaded 300mm etch chamber dropping out of production at 3:00 AM due to a interlock bus communication error. The tool software flags an unrecoverable signal drop between the process module and the main rack interface card. Every minute that chamber sits idle costs thousands in lost wafer throughput. Trying to track down micro-cracks on an old PCB trace while under pressure from the yield management team is a night terror every fab technician knows too well. Pulling the suspect 810-046015-010 card out of the chassis and dropping in a tested, verified spare clears the bus fault, restores interlock handshakes, and gets the tool running baseline tests before the morning shift arrives.
- Etch Module Signal Interfacing – Handles low-noise sensor and feedback loops between the process chamber and host rack.
- CVD/ALD Deposition Bays – Routes critical timing and interlock logic to maintain gas flow and pressure safety conditions.
- Wafer Handling & Transfer Systems – Manages multi-axis sensor feedback logic during automated wafer transfers.

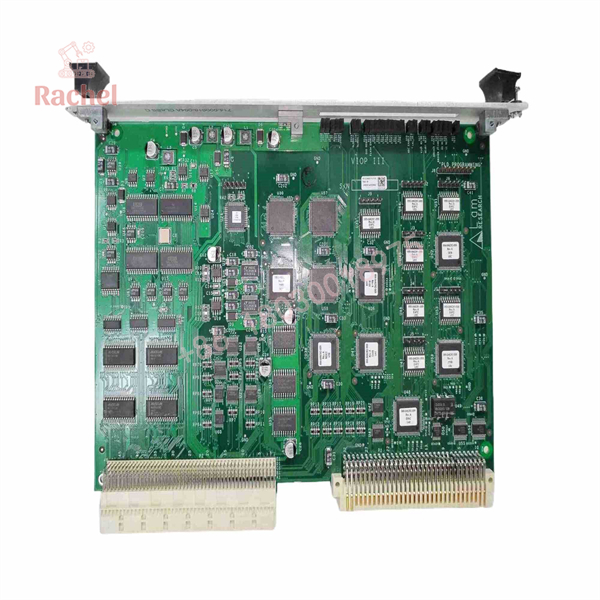

810-046015-010

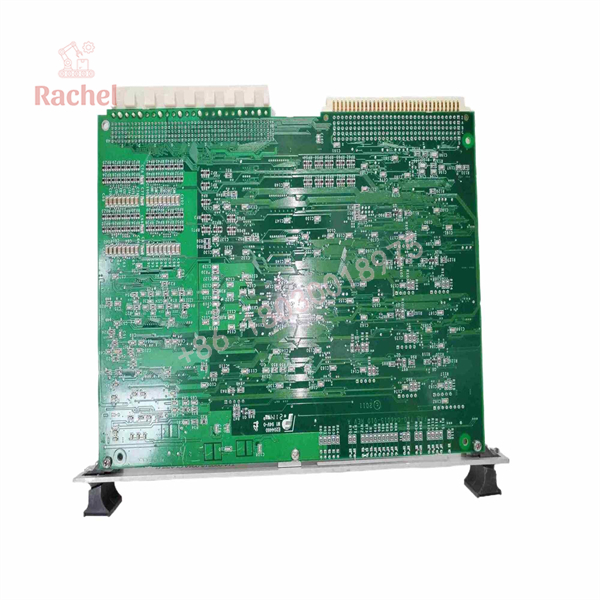

810-046015-010
Transparency SOP: Quality Assurance & Testing
We do not gamble with fab equipment uptime. Every 810-046015-010 board undergoes strict bench and system-level validation:
- Inbound Visual & Optical Inspection: Checked under high-magnification for trace erosion, damaged connector pins, cold solder joints, or swollen surface-mount components.
- Impedance & Shorts Test: Continuity and resistance checks across power rails to ensure zero dead-shorts exist on signal line paths.
- Simulated Signal I/O Handshake: Board is connected to custom test fixtures to verify signal continuity, logic state switching, and feedback accuracy.
- Thermal Stability Run-in: Powered under normal load conditions to monitor thermal signatures using infrared sensors to ensure no hidden hot spots exist.
- Clean Packaging: Cleaned, packed in anti-static ESD shielding bags, and securely boxed using shock-absorbing foam.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ 1. Verify Dash-Number Match: Lam Research PCBA part numbers rely heavily on dash numbers (e.g., -010 vs -001). Installing a different dash-numbered board might physically fit into the card cage, but subtle pinout changes or component substitutions can lead to instant communication faults or blown backplane fuses.
❗ 2. Power Down Module Completely: Do not attempt to hot-swap this card. The low-voltage logic gates on the 810-046015-010 are easily damaged by back-EMF or voltage transients if seated into a live backplane. Always turn off module logic power before pulling the card.
⚠️ 3. Inspect Mating Connectors: Before inserting the replacement board, use a flashlight to inspect the backplane female connector. Pins bent by previous card removals can mangle the male headers on your replacement board instantly.
❗ 4. Ground Yourself: Static damage doesn’t always kill a board outright—it can cause invisible latent damage that shows up as random, intermittent tool faults weeks later. Always wear a grounded ESD wrist strap when handling these boards.
Frequently Asked Questions (FAQ)
Q: Is the Lam 810-046015-010 board hot-swappable?
A: No. Removing or inserting this board while power is applied can damage the onboard micro-logic and corrupt communication channels. Always power down the system sub-rack prior to replacement.
Q: How do I know if my issue is the 810-046015-010 board or a cable failure?
A: In our field experience, if signal loss occurs across multiple channels simultaneously or causes a hard bus communication fault, the interface board is usually the prime suspect. For single-channel intermittent dropouts, verify cable continuity first.
Q: Are these boards brand new from the factory?
A: Because Lam Research discontinues older board revisions over time, these units are typically New Surplus (uninstalled spare parts from cleanroom inventories) or fully refurbished and re-certified units.
Q: What is the warranty coverage on this part?
A: Every 810-046015-010 board includes a 12-month full replacement warranty. If the board fails during normal operation, we will swap it out or refund your purchase.
Q: Does this PCBA require custom firmware loading upon installation?
A: Generally, no. Most board assemblies in this category function as hardware signal interfaces. Calibration and logic control are driven directly by the tool’s main host controller software.
