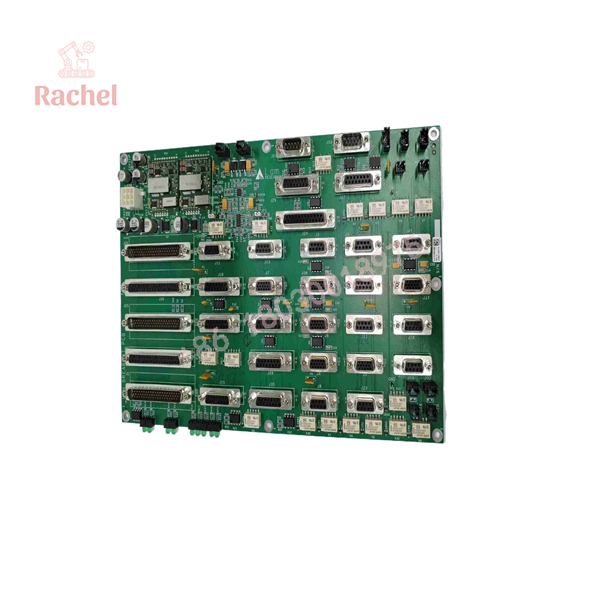

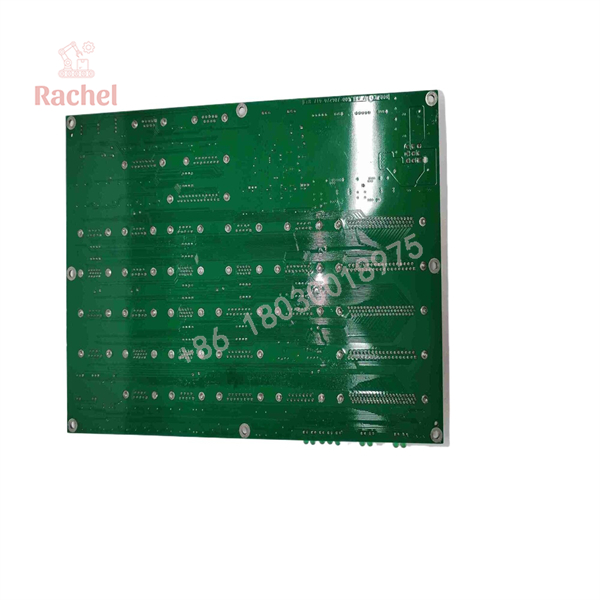

Lam 810-072907-005 Vacuum Transfer Module Breakout PCBA

Description

Product Introduction

The Lam Research 810-072907-005 is a specialized Vacuum Transfer Module (VTM) breakout circuit board assembly designed for advanced cluster etch and deposition systems. Located within the central wafer transport hub, this board acts as the primary hardware interconnect junction, routing high-density control signals, interlock logic loops, and sensor feeds between the transfer chamber, robotic handler, and surrounding process modules.

Engineered specifically to survive high-duty wafer exchange cycles, the 810-072907-005 features isolated ground planes and industrial-grade conformal coatings. This construction shields delicate sensor signals—such as slit valve position monitors and vacuum pressure switches—from the severe electromagnetic interference (EMI) generated by adjacent high-power RF generators.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

It’s 3:30 AM in a 300mm manufacturing fab, and a high-throughput etch tool drops offline with an unrecoverable “VTM Interlock Hardware Fault.” The host software locks out all wafer transfers because the main computer lost position feedback from the transfer robot’s arm and slit valves. Scrapping an active wafer lot due to a transport lockup is catastrophic for fab yield metrics.

Troubleshooting points to signal dropouts on the breakout interface board caused by cracked traces around a ribbon connector header. Pulling the suspect 810-072907-005 card and installing a bench-tested replacement restores clean sensor telemetry immediately. The transfer module passes automated alignment and pressure checks, getting the tool back online before the morning yield meeting.

• Etch & Deposition VTM Modules – Interfaces robotic transfer arm sensors, optical wafer-pass monitors, and vacuum level switches.
• Slit Valve Interlock Arrays – Routes discrete actuation commands and feedback verification for chamber isolation doors.
• Transfer Chamber Vacuum Control – Handles safety interlock loops to prevent door opening during pressure mismatches.

Transparency SOP: Quality Assurance & Testing

We understand that cleanroom downtime is brutally expensive. Every 810-072907-005 board goes through comprehensive testing before leaving our warehouse:

1. Optical Microscopic Inspection: Full 10x optical check for trace fractures, solder joint fatigue, bent pin headers, or conformal coating breakdown.
2. Power Rail Continuity & Shorts Check: Impedance testing across all internal power planes to ensure zero short-circuits exist before applying bench power.
3. Multi-Channel Loop & Signal Testing: Mounted to specialized test rigs to verify continuity and low-resistance signal throughput across every breakout trace and connector pin.
4. Thermal Signature Analysis: Bench-powered under simulated current loads while monitored with FLIR thermal imaging to verify no latent hot-spot components exist.
5. Clean ESD Packaging: Cleaned with electrical solvent, sealed in heavy-duty anti-static ESD bags, and packed in high-density protective foam.

810-072907-005

810-072907-005

The Veteran’s Tech Trap Guide (Crucial Value-Add)

⚠️ 1. Verify the Exact Dash Number (-005): Lam Research revision codes matter immensely. Installing a -003 or -004 board in a system expecting a -005 can cause subtle pinout mismatches, resulting in unexplainable sensor feedback errors on your VTM controller.

❗ 2. Inspect Ribbon Cables for Pin Damage: When pulling the old breakout board, inspect the female ribbon cable connectors. A bent pin on the old board often deforms the cable connector socket; plugging that damaged socket into your replacement 810-072907-005 will bend the new header pins instantly.

⚠️ 3. Isolate System Power Before Removal: Never pull or seat this breakout board with rack power energized. Inductive back-EMF from nearby valve solenoids can spike signal lines and destroy surface-mount logic diodes on the card.

❗ 4. Ground Yourself (Strict ESD Protocols): The high-density traces on this breakout card connect directly to sensitive node controllers down the line. Wear a properly grounded wrist strap during installation to avoid zapping downstream ICs with static electricity.

Frequently Asked Questions (FAQ)

Q: Is the Lam 810-072907-005 hot-swappable?

A: No. Always isolate power to the VTM sub-rack prior to pulling or installing this board. Seating it into a live backplane risks arcing header pins and tripping adjacent module interlocks.

Q: What is the primary function of a “VTM Breakout Board” in a Lam tool?

A: It acts as a centralized patch panel and signal conditioner. Instead of running dozens of individual sensor cables directly back to the main tool rack, signals from the transfer module plug into the 810-072907-005 breakout card to be organized and routed cleanly via high-density buses.

Q: Are these units original Lam Research parts?

A: Yes. We supply genuine Lam Research assemblies. Due to manufacturing lifecycles, these units are typically sourced as New Surplus (uncommissioned fab inventory) or fully refurbished, bench-certified spares.

Q: What kind of warranty covers this board?

A: Every 810-072907-005 card includes a 12-month full replacement warranty. If a module fails under standard cleanroom operating conditions within a year, we replace it or issue a full refund.

Q: Does this breakout card require onboard software or firmware loading?

A: No. The 810-072907-005 is a hardware breakout and signal routing assembly. Once properly seated and cabled, logic execution and signal interpretation are handled directly by the host VTM software controller.
