Description
Product Introduction & Engineering Value
The LAM 810-099175-012 is a VIOP Phase III PCB assembly designed for Lam Research semiconductor manufacturing platforms. It serves as an analog interface layer, handling continuous process signals that require more than simple digital switching. The assembly is identified as a VIOP board used in Lam equipment applications, with references connecting it to VME-based control architectures.
For fabs maintaining mature Lam process tools, this type of board is a critical lifecycle spare. Replacing it requires attention to VME compatibility, revision matching, stored configuration data, and the specific process module where the board is installed.
Technical Specifications
Core Technical Details
- Manufacturer: Lam Research
- Part Number: 810-099175-012
- Board Designation: VIOP Phase III PCB Assembly
- Interface Architecture: VMEbus-based control system
- Module Type: Analog Input/Output interface board
- Primary Role: Analog signal monitoring and output control
- Signal Category: Continuous process feedback signals
- Typical Applications: Semiconductor etch and deposition equipment control systems
- Installation Environment: Industrial semiconductor process equipment electronics chassis
- Replacement Class: OEM maintenance spare / lifecycle support component
- Handling Requirement: ESD-controlled handling required
Field Application & The “Trench” Experience
A semiconductor manufacturer operating older Lam process equipment began receiving unstable process alarms during wafer runs. Operators noticed chamber parameters occasionally drifting even though the sensors and field wiring tested correctly.
During troubleshooting, the engineering team isolated the issue to the VIOP Phase III analog interface board. The maintenance group replaced the existing assembly with a verified LAM 810-099175-012 unit, confirmed VME communication, restored configuration parameters, and completed process qualification checks before returning the tool to production.
The failure scenario was typical of aging semiconductor equipment: the mechanical system was healthy, but the signal-processing electronics had become unreliable.
Common application scenarios include:
- Etch Chamber Analog Feedback Control
Monitoring and controlling pressure, flow, and process-related analog feedback signals. - CVD / Deposition Equipment Maintenance
Supporting legacy Lam platforms where stable analog process control is required. - VME-Based Semiconductor Tool Refurbishment
Extending operational life for installed equipment without replacing the entire control platform.

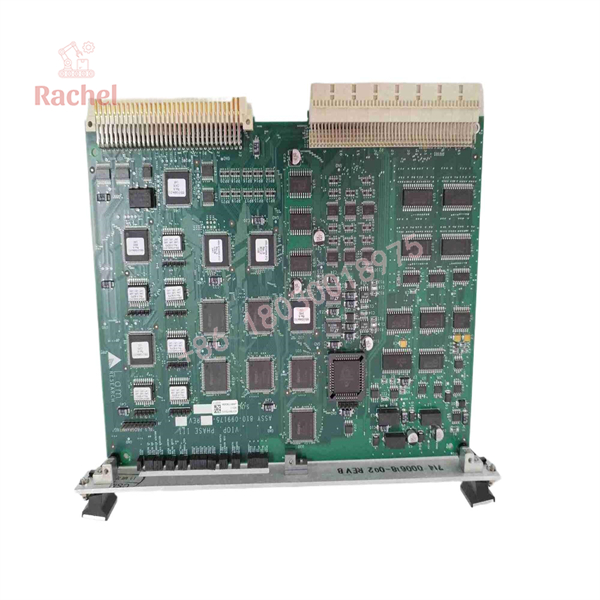

810-099175-012

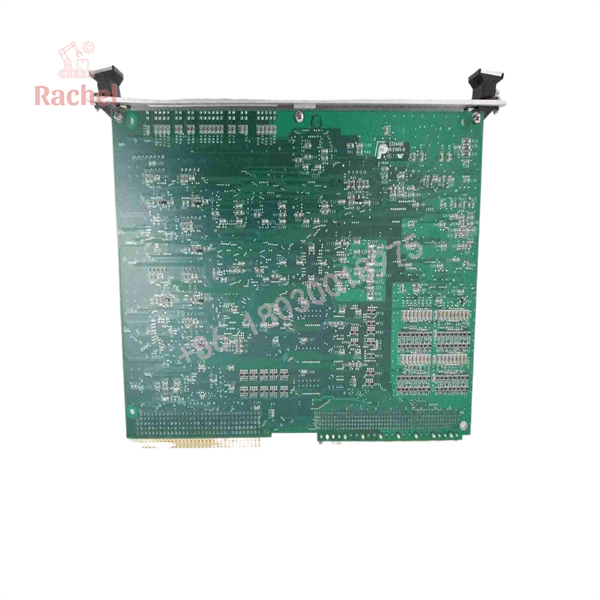

810-099175-012
Transparency SOP: QA & Testing
A proper inspection process for a LAM 810-099175-012 spare should include:
1. Identification Verification
- Confirm Lam Research marking.
- Verify complete part number: 810-099175-012.
- Check PCB revision information.
2. Physical Inspection
- Examine edge connectors and VME interface contacts.
- Inspect PCB traces, solder joints, and components.
- Check for contamination or storage damage.
3. Electrical Screening
- Perform continuity checks.
- Inspect power rails where applicable.
- Verify no obvious component failures exist.
4. Functional Evaluation
- When compatible test equipment is available:
- Confirm VME communication.
- Validate analog channel response.
- Check board status indicators.
The Veteran’s Tech Trap Guide
⚠️ Revision Matching Matters
VIOP Phase III boards exist in multiple variants. Similar-looking assemblies may not be interchangeable. Confirm the exact suffix before installation.
⚠️ Do Not Skip Parameter Backup
Replacing an analog interface board may require restoring calibration values or process configuration data. A hardware swap alone may not return the tool to production.
PRO TIP: Record all alarm history before removing the original board. Intermittent analog faults often leave diagnostic clues that disappear after power cycling.
⚠️ VME Connector Handling
Repeated insertion and removal can wear VME connectors. Inspect both the board edge connector and chassis slot before installation.
Dynamic FAQ
Q1. What is the LAM 810-099175-012 used for?
The 810-099175-012 is a Lam Research VIOP Phase III PCB assembly used in semiconductor equipment control systems, primarily for analog signal interface functions.
Q2. Is the 810-099175-012 compatible with all Lam machines?
No. Compatibility depends on the specific Lam platform, controller architecture, firmware, and installed hardware revision.
Q3. What does VIOP mean in this module designation?
VIOP refers to the I/O processing board family used within Lam equipment control architectures. The Phase III designation identifies a specific generation of the assembly.
Q4. How should a New Surplus 810-099175-012 be verified?
Check:
- Original part labeling
- Packaging condition
- PCB revision
- Connector condition
- Available test records
Q5. Can refurbished units be used for semiconductor production equipment?
Yes, provided they have been properly inspected and tested. Semiconductor equipment spares should be evaluated according to the risk level of the production tool.
Q6. What warranty should buyers expect?
Warranty terms depend on supplier classification. Confirm whether the unit is New Surplus, Refurbished, or Used, along with return conditions and test documentation before purchase.
