Description
Product Introduction
The Lam Research 810-072903-014 is a specialized LonWorks Parallel Input/Output (PIO) interface card designed for Lam etch, CVD, and deposition processing tools. Centered around the FT 50020R-10 free-topology smart transceiver, this board serves as a localized node controller within the tool’s distributed control network. It processes real-time sensor feedback, actuates discrete sub-system logic, and drives an onboard LCD screen for local status and diagnostic readouts directly at the module level.
Unlike standard industrial communication cards, the 810-072903-014 is specifically hardened against heavy electromagnetic interference (EMI) and RF noise generated by plasma power sources. It maintains low-latency data transmission across the internal LonWorks fieldbus, ensuring tight synchronization between chamber interlocks, gas delivery systems, and the main tool software.
Key Technical Specifications
| Parameter | Value / Description |
| Manufacturer | Lam Research Corporation |
| Part Number | 810-072903-014 |
| Assembly Type | LonWorks PIO Controller Board w/ LCD |
| Network Processor/Transceiver | Echelon FT 50020R-10 Smart Transceiver |
| Display Interface | Integrated Onboard LCD Module |
| System Compatibility | Lam Etch & Deposition Subsystem Modules |
| Operating Voltage | 5VDC / 24VDC (System Carrier Driven) |
| Interconnect Style | High-Density Ribbon Pin Headers & Card Edge |
| Conformal Coating | Standard Cleanroom Grade Protective Coating |
Application Scenarios & The “Trench” Experience
Picture a 300mm etch chamber going dark at 4:15 AM due to a “LonWorks Node Unresponsive” network error. The main tool screen locks out all process gas lines because the host controller lost handshake signal with the bay’s local PIO node. The yield engineer is watching the clock as every minute of downtime burns thousands in potential wafer revenue. After verifying power supply rails are healthy, the issue points directly to a blown transceiver IC on the local PIO board. Replacing the faulty 810-072903-014 with a tested unit restores the LonWorks node link, updates the local LCD readout, and passes tool self-diagnostics before the morning shift handoff.
- Etch & Deposition Gas Boxes – Interfaces mass flow control interlocks and valve switch feedback onto the LonWorks bus network.
- Vacuum Chamber Interlocks – Handles discrete PIO signals from pressure switches, throttle positioners, and safety isolation valves.
- Wafer Transfer & Load Lock Bay – Manages sensor feedback logic for door positioners and slit valve actuations via local LonWorks nodes.

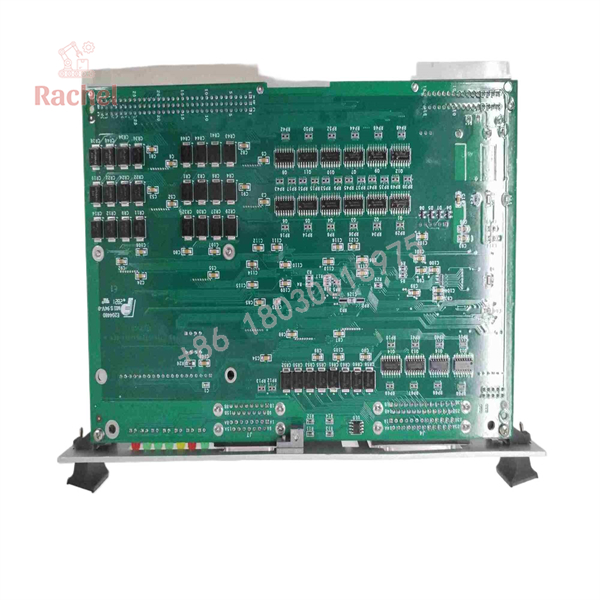

810-072903-014

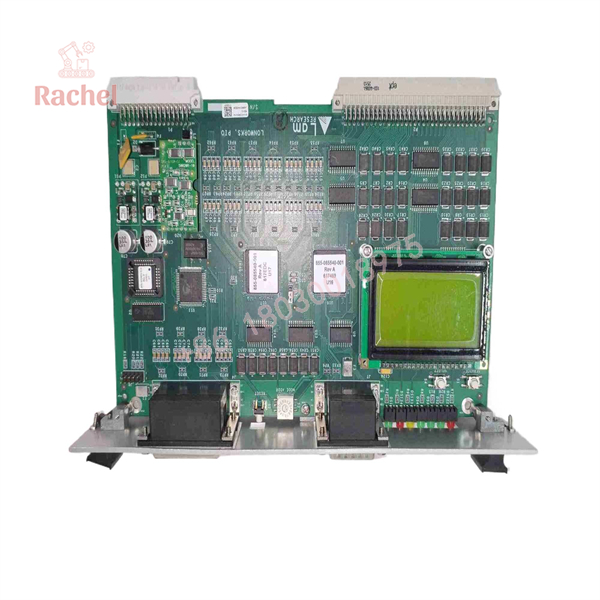

810-072903-014
Transparency SOP: Quality Assurance & Testing
We do not gamble with fab tool uptime. Every 810-072903-014 board goes through rigorous bench testing prior to shipment:
- Optical Inspection: High-magnification check for micro-fractures, trace burn marks, solder fatigue, or damaged connector pins.
- Power Rail Checks: Resistance and continuity measurements across logic rails to ensure no dead-shorts exist prior to powering up.
- LonWorks Bus & Node Verification: Mounted to a test bench to verify transceiver communication handshakes (FT 50020R-10), node addressing, and data packet transmission.
- Display & I/O Functional Check: Test inputs and outputs while monitoring the integrated LCD display to confirm clear character rendering and state switching.
- Clean ESD Packaging: Cleaned with approved electrical solvent, wrapped in anti-static ESD shielding, and safely packed in high-density foam containers.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ 1. Verify the -014 Dash Number: Lam Research boards have multiple sub-revisions. Installing a lower dash revision (like a -005 or -010) in place of a -014 can cause LonWorks node configuration errors or mismatched transceiver logic protocols.
❗ 2. Check the FT 50020R Transceiver IC: The onboard 50020R-10 transceiver chip is sensitive to fieldbus voltage transients. If your original board blew out, check your network wiring shielding and ground loops first—otherwise, a stray short will immediately zack the transceiver on your replacement board.
⚠️ 3. ESD Handling is Non-Negotiable: The CMOS components and display controller on this board are highly static-sensitive. Always connect a grounded wrist strap and handle the board exclusively by its edges or bracket.
❗ 4. Never Hot-Swap: Pulling or inserting this LonWorks card while the sub-rack backplane is live will spike the communication bus, potentially dropping adjacent nodes on the network or damaging logic gates. Power down the carrier rack first.
Frequently Asked Questions (FAQ)
Q: Is the Lam Research 810-072903-014 hot-swappable? A: No. Removing or inserting this board while power is applied can arc edge pins and corrupt LonWorks node addressing. Power down the sub-bay prior to replacement.
Q: Does this board include the onboard LCD screen and FT 50020R-10 chip? A: Yes. The complete board assembly features both the onboard diagnostic LCD screen and the central FT 50020R-10 LonWorks transceiver IC fully integrated.
Q: Are these boards brand new or refurbished? A: Due to the supply status of legacy Lam tool parts, these boards are offered as New Surplus (unassigned cleanroom inventory) or fully refurbished and bench-certified units.
Q: What is the warranty policy on this card? A: Every 810-072903-014 board comes with a 12-month full replacement warranty. If it experiences a hardware failure under normal operational conditions within a year, we will swap it out.
Q: Will I need to flash firmware onto the board after installation? A: Generally, no. Once the node address is recognized on the LonWorks network, the host tool controller pushes the required module configuration directly to the board.
