Lam Research 605-109114-003 Electronic PCB Assembly

Description

Product Introduction

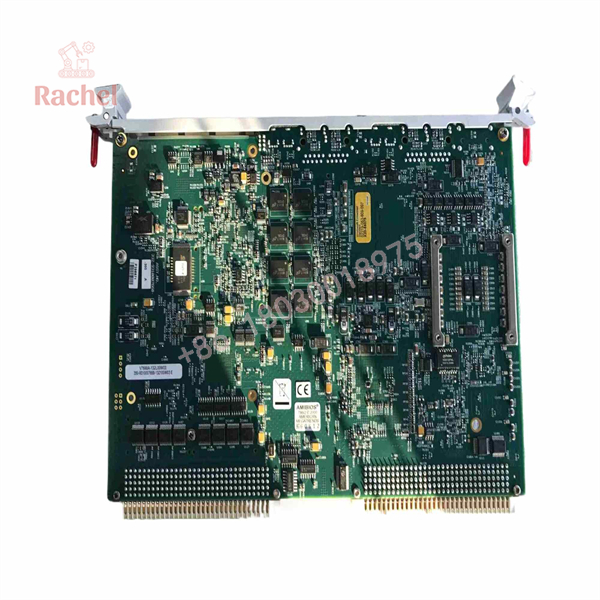

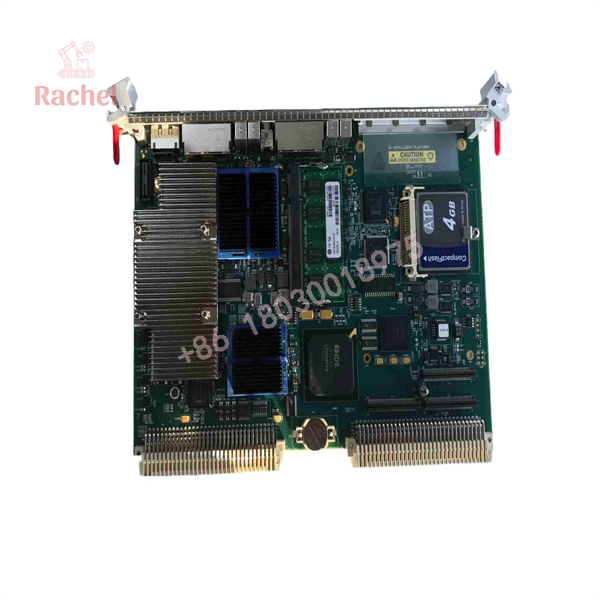

The 605-109114-003 is a specialized internal electronic circuit board assembly engineered for high-reliability OEM equipment racks. Operating as an updated iteration or specific subsystem variant within the 605-108114-xxx series architecture, this board acts as a key logic and signal conditioning bridge between field-level transducers/sensors and main system processing nodes.

Built to withstand demanding operational stress—such as continuous thermal cycling, electrical noise, and high-duty operational profiles—the 605-109114-003 handles real-time I/O processing and signal filtering. Swapping out a compromised board restores full communications across the system backplane, resolving latched controller alarms and intermittent telemetry dropouts.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

During continuous production or operations, an equipment rack may latch an un-clearable “Communication Timeout” or “Signal Fault” alarm, causing system interlocks to trip. While field cabling and main power supplies may test fine under static conditions, the root cause often traces back to component degradation (such as signal-isolation optocouplers or bus line transceivers) on the internal 605-109114-003 circuit board.

Installing a pre-tested, bench-verified 605-109114-003 replacement re-establishes pristine signal timing and voltage levels across the backplane, clearing latched system faults and bringing the equipment back online without replacing the complete enclosure.

Typical Applications:

• Semiconductor Wafer Processing – Chamber I/O, RF matching interface, and vacuum interlock monitoring.
• Marine Navigation & Radar Racks – Raw video, azimuth pulse, and transceiver timing signal processing.
• Industrial Automation & Process Control – High-speed signal conditioning sub-assembly.

605-109114-003

605-109114-003

Transparency SOP: Quality Assurance & Testing

Every surplus or refurbished 605-109114-003 PCB undergoes a strict 5-stage bench test protocol prior to dispatch:

1. Microscopic Component Audit: High-magnification check for conformal coating fractures, solder joint fatigue, thermal discoloration, or damaged connector pins.
2. Cold Static Impedance Sweep: Point-to-point resistance checks across primary power rails to ensure zero dead shorts prior to power application.
3. Bench Power-On Verification: Powered on a dedicated test backplane to confirm onboard voltage regulators and logic rails hit exact factory specifications.
4. Signal Loopback & Dynamic Sweep: Oscilloscope logic-sweep across input/output channels to verify signal rise times, timing accuracy, and noise suppression.
5. ESD Cleaning & Packaging: Decontaminated, sealed in static-shielding bags with moisture absorbers, and foam-encapsulated for shipping protection.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

⚠️ Confirm Specific OEM Application: Part numbers in the 605-108114-xxx and 605-109114-xxx formatting appear in both semiconductor tool lines (Lam Research) and marine electronic suites (Sperry Marine). Verify the machine model, host rack enclosure, and serial tag prior to installation.

❗ Match Hardware Jumpers and DIP Switches: Before powering up the replacement card, visually mirror all DIP-switch configurations, hardware jumpers, and daughterboard socket orientations from your original board onto the replacement unit.

⚠️ Observe Strict Anti-Static (ESD) Protocols: Unshielded circuit assemblies contain static-sensitive CMOS components. Always wear a grounded wrist strap when handling the 605-109114-003 and ensure the host card cage is fully powered down before insertion to prevent backplane arc-over.

Frequently Asked Questions (FAQ)

Q: Is the 605-109114-003 directly interchangeable with 605-108114-003?

A: Part number 605-109114-003 typically represents a specific revision, board layout update, or variant of the 605-108114-003 series. Always verify system documentation or backplane pinouts to confirm backward compatibility.

Q: Does this circuit board require firmware flashing upon installation?

A: Most sub-assembly interface cards in this hardware class rely on onboard hardware EEPROMs or receive boot configuration parameters directly from the host system controller upon power-up.

Q: What is the primary failure mode for this board?

A: Thermal stress from long-term continuous cabinet operation, voltage fluctuations across logic rails, and trace corrosion if operated in unconditioned environments.

Q: What warranty coverage comes with this part?

A: We back every surplus and reconditioned 605-109114-003 module with a full 12-month operational warranty. If the unit fails bench checks or exhibits hardware faults within 365 days, we provide an immediate exchange or full refund.
