Description
Product Introduction & Engineering Value
A semiconductor tool can remain mechanically productive for decades, but a single aging control PCB can stop an entire production process. The LAM Research 810-069751-114 represents the type of legacy electronics assembly that requires careful identification because these boards are designed around specific LAM equipment architectures.
For maintenance teams supporting mature fabrication equipment, replacing this type of assembly is not simply a board-level exchange. Correct restoration requires matching the complete part number, hardware revision, connector configuration, and installed machine environment.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | LAM Research |
| Part Number | 810-069751-114 |
| Product Type | OEM PCB assembly |
| Equipment Category | Semiconductor manufacturing equipment |
| Primary Function | Tool-specific electronic control/interface |
| Board Technology | Industrial control PCB |
| Installation Location | LAM equipment control electronics chassis |
| Compatibility | Dependent on host LAM platform |
| Hardware Revision | Confirm from board marking |
| Firmware / Software | Tool configuration dependent |
| Replacement Type | New surplus, used, or refurbished OEM spare |
| Documentation Source | OEM equipment manuals and board identification |
Engineering note:
LAM Research 810-series assemblies are generally not interchangeable based only on physical appearance. The suffix revision (-114) is part of the identification and should be verified during procurement.
Field Application & The “Trench” Experience
A wafer fabrication facility operating legacy LAM process equipment began experiencing intermittent equipment faults during automated processing. The system would complete startup checks but fail after extended operation, making troubleshooting difficult.
The maintenance team performed signal tracing and discovered abnormal behavior associated with a control electronics assembly. The replacement search identified 810-069751-114 as the required OEM board. Before installation, technicians compared the failed board against the replacement unit, confirming revision markings and connector arrangement.
The tool was restored without changing the validated process recipes or replacing the larger control architecture.
Specific application scenarios:
LAM legacy process equipment repair
Replacement of discontinued electronics assemblies in installed semiconductor tools.
Fab critical-spares programs
Maintaining inventory of high-impact PCB assemblies to reduce equipment downtime.
Semiconductor tool refurbishment projects
Supporting continued operation of mature production platforms.

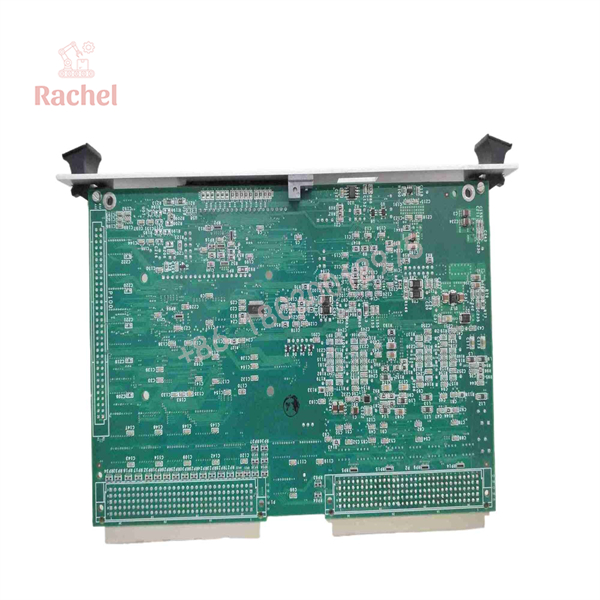

810-069751-114

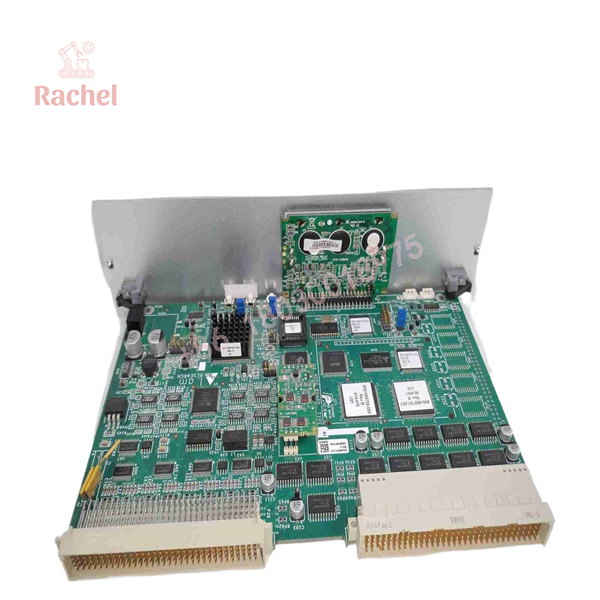

810-069751-114
Transparency SOP: QA & Testing
A controlled inspection process for 810-069751-114 should include:
Incoming verification
- Confirm LAM Research labeling.
- Verify exact part number.
- Record PCB revision and serial information.
Physical inspection
- Examine PCB surface condition.
- Inspect connectors and edge contacts.
- Check for corrosion, contamination, or previous repair marks.
Electrical checks
- Verify board power behavior.
- Inspect critical components.
- Perform available bench-level testing.
System validation
- Install only in a compatible LAM test environment when possible.
- Confirm communication and equipment initialization.
Documentation
- Record test results.
- Identify inventory condition.
- Provide refurbishment details if applicable.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Similar part numbers do not always mean replacement compatibility.
LAM boards frequently have closely related numbers with different revisions, firmware, or machine assignments. Verify the complete identifier before purchase.
PRO TIP:
Request photographs of:
- OEM label
- PCB front and rear sides
- Revision markings
- Connector layout
⚠️ Trap #2 — A successful power-on test is not enough.
A PCB can power correctly and still fail during process operation because communication timing, firmware, or machine-specific configuration does not match.
⚠️ Trap #3 — Avoid undocumented refurbished boards.
For semiconductor equipment, refurbishment quality matters. A board should have inspection records rather than only a visual cleaning process.
Dynamic FAQ
What is LAM Research 810-069751-114?
It is an OEM LAM Research semiconductor equipment PCB assembly used within legacy process-tool electronics systems.
Which LAM tools use 810-069751-114?
The exact equipment compatibility depends on the installed LAM platform and board configuration. Confirm using OEM documentation and physical board identification.
Is 810-069751-114 a PLC module?
No. It is a semiconductor equipment-specific control PCB assembly, not a standard industrial PLC I/O module.
Can a refurbished 810-069751-114 be installed directly?
Only after confirming hardware revision, compatibility, and functional testing. Legacy LAM electronics often require exact matching.
What should buyers provide when requesting availability?
Recommended information:
- Part number
- Tool model
- Current board photos
- Quantity required
- Required condition (new surplus/refurbished)
How do I verify new-surplus inventory?
Request:
- OEM packaging photos
- Identification label photos
- Serial information
- Storage condition details
What warranty should be included?
The supplier should specify:
- Condition classification
- Testing performed
- Warranty duration
- Replacement or repair policy
Procurement Recommendation:
For LAM Research 810-069751-114, prioritize identification accuracy over price. Confirm the exact revision, obtain inspection evidence, and verify tool compatibility before installing the board into a production semiconductor system.
