Description
Product Introduction & Engineering Value
A communication or I/O board failure inside a semiconductor tool can create production interruptions that appear unrelated to the actual hardware fault. The LAM 810-520659-001 is identified as a SER I/O 6 Channel PCB used in Lam Research semiconductor equipment applications.
This assembly is typically maintained as a critical spare for installed Lam platforms where equipment lifecycle extension is required. Exact compatibility depends on the process tool model, controller architecture, firmware configuration, and board revision.
Technical Specifications
Core Technical Parameters
- Manufacturer: Lam Research
- Part Number: 810-520659-001
- Assembly Description: SER I/O 6 Channel PCB
- Board Type: Semiconductor equipment interface PCB assembly
- Primary Function: Serial I/O signal interface and equipment communication support
- Channel Configuration: Six-channel I/O architecture
- Application Environment: Semiconductor fabrication equipment electronics systems
- Installation Type: Equipment controller chassis / electronics rack mounting
- Replacement Category: OEM spare / legacy equipment maintenance component
- Handling Requirement: ESD-controlled handling required
- Compatibility: Determined by Lam tool platform and installed control configuration
Field Application & The “Trench” Experience
A wafer fabrication facility running a mature Lam process module began experiencing intermittent subsystem communication faults. Operators reported occasional equipment alarms during automated sequences, but chamber hardware diagnostics showed normal mechanical operation.
The maintenance team traced the issue to the SER I/O communication layer. After comparing board identification records, engineers replaced the failed assembly with a tested LAM 810-520659-001 SER I/O 6 Channel PCB. The replacement restored stable subsystem communication after connector inspection, configuration verification, and equipment diagnostics.
This type of failure is common in older semiconductor tools where electronic interface assemblies age faster than mechanical components.
Typical application scenarios include:
- Semiconductor Process Tool Serial Communication Systems
Supporting communication paths between equipment controllers and peripheral devices. - Etch and Deposition Platform Maintenance
Maintaining installed Lam systems where replacing the complete controller is unnecessary. - Legacy Fab Equipment Recovery Projects
Restoring older production tools during refurbishment or capacity expansion programs.

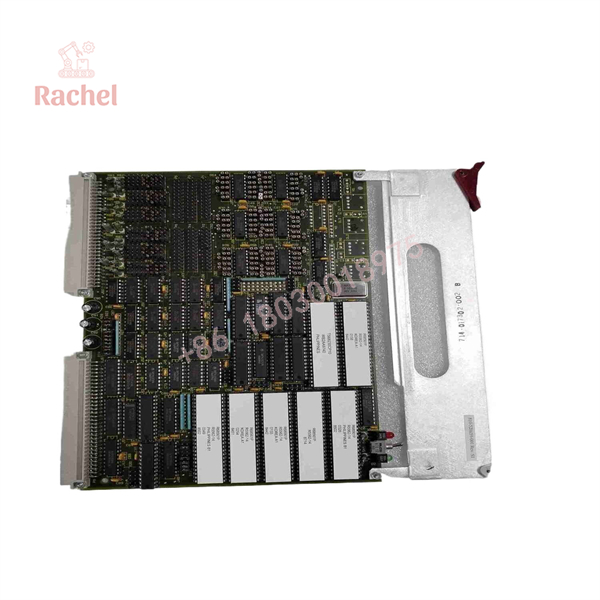

810-520659-001

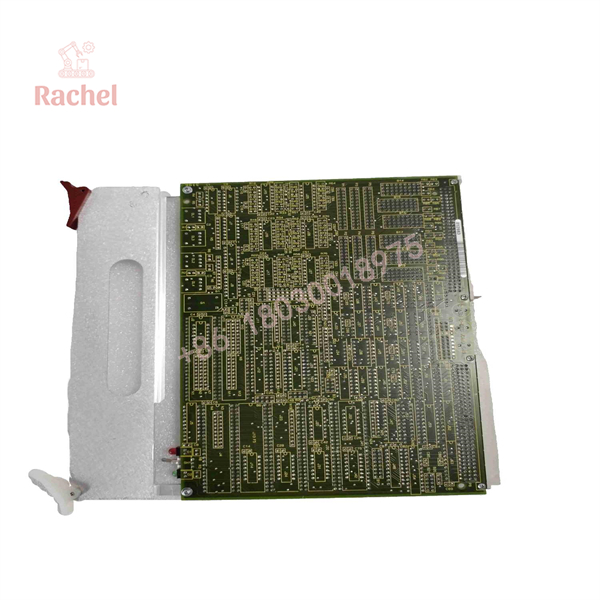

810-520659-001
Transparency SOP: QA & Testing
A controlled evaluation process for a LAM 810-520659-001 spare includes:
Inspection Checklist
✓ Confirm part number marking and manufacturer identification.
✓ Verify PCB revision and assembly labeling.
✓ Inspect connectors, edge contacts, and solder joints.
✓ Check for contamination, corrosion, or physical damage.
✓ Perform electrical screening where applicable.
✓ Validate I/O communication functions using compatible equipment when available.
✓ Record inspection results before inventory release.
The Veteran’s Tech Trap Guide
⚠️ A Matching Part Number Does Not Guarantee Compatibility
Lam equipment often uses multiple revisions of similar interface assemblies. Always verify the complete assembly number and revision before installation.
⚠️ Serial Communication Faults Can Be Misleading
A failed I/O board may appear as a sensor, actuator, or software problem. Check communication diagnostics before replacing field devices.
PRO TIP: Save the original system logs before removing the board. Intermittent I/O failures often leave valuable troubleshooting evidence.
⚠️ Connector Wear Is Frequently Overlooked
Repeated maintenance cycles can damage mating connectors. Inspect both the PCB and chassis connector before installation.
Dynamic FAQ
Q1. What is the LAM 810-520659-001 used for?
The LAM 810-520659-001 is a SER I/O 6 Channel PCB assembly used in Lam Research semiconductor equipment control systems.
Q2. Is this a main controller board?
No. This assembly is an I/O interface board designed to handle communication and signal exchange functions within the equipment architecture.
Q3. Can the 810-520659-001 replace every Lam SER I/O board?
No. Compatibility must be verified against the specific Lam equipment model, installed revision, and system configuration.
Q4. What should be checked when purchasing New Surplus inventory?
Verify:
- Original part labeling
- Packaging condition
- PCB revision
- Storage condition
- Available inspection records
Q5. Are refurbished 810-520659-001 boards suitable for production tools?
Yes, when they have passed appropriate inspection and functional testing procedures before installation.
Q6. What warranty coverage is normally provided?
Warranty terms depend on supplier classification. Buyers should confirm coverage period, return conditions, and whether the unit is New Surplus, Refurbished, or Used before purchase.
