Product Introduction & Engineering Value
A semiconductor tool can remain mechanically sound while becoming unavailable because a single controller assembly fails. The LAM 810-810202-013 is an equipment controller module associated with Lam Research semiconductor manufacturing systems and is maintained as a replacement component for installed process tools.
For fabs operating mature Lam platforms, this type of spare helps avoid extended downtime caused by obsolete electronics. Before replacement, engineers should confirm equipment model compatibility, hardware revision, firmware requirements, and stored configuration data.
Technical Specifications
Core Technical Parameters
- Manufacturer: Lam Research
- Part Number: 810-810202-013
- Component Type: Semiconductor equipment controller module / electronic assembly
- Primary Function: Equipment control and process subsystem management
- Application Environment: Semiconductor fabrication equipment
- Control Role: Interfaces with process tool electronics and subsystem controls
- Installation Location: Tool electronics cabinet or controller assembly area
- Compatibility: Dependent on specific Lam equipment platform and configuration
- Replacement Category: OEM lifecycle spare component
- Maintenance Use: Corrective repair, planned replacement, and equipment restoration
- Handling Requirement: ESD-controlled procedures required
- Storage Requirement: Controlled environment with protective packaging recommended
Field Application & The “Trench” Experience
A wafer fabrication facility operating an older Lam process platform experienced repeated controller initialization failures during equipment startup. The symptoms were inconsistent: some power cycles completed normally, while others stopped before chamber preparation.
The maintenance team reviewed controller diagnostics, inspected the electronics rack, and identified the 810-810202-013 assembly as the suspected failure point. During a scheduled maintenance window, the failed module was replaced with a verified spare. After configuration checks and equipment diagnostics, the process tool returned to normal operation.
This type of repair scenario is common in semiconductor fabs where maintaining existing production assets is more practical than replacing an entire process platform.
Typical applications include:
- Semiconductor Etch Process Equipment Control
Supporting controller functions for chamber operation, sequencing, and subsystem communication. - Process Module Electronics Maintenance
Replacing aging controller assemblies during preventive maintenance activities. - Legacy Lam Equipment Refurbishment
Extending operational service life for installed production tools.

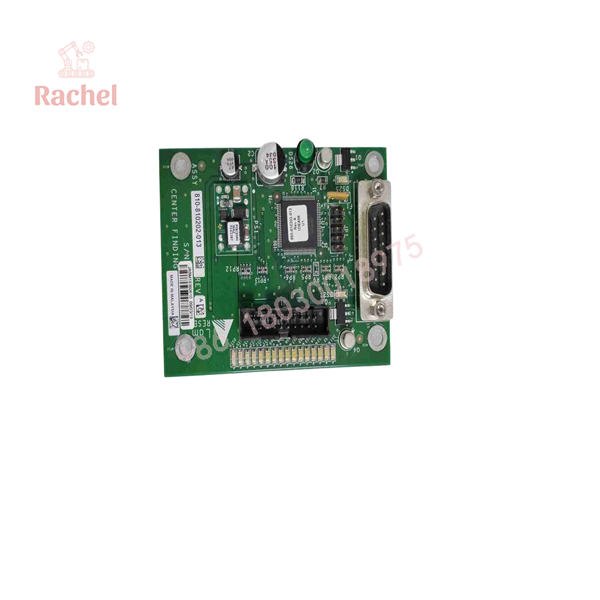

810-810202-013

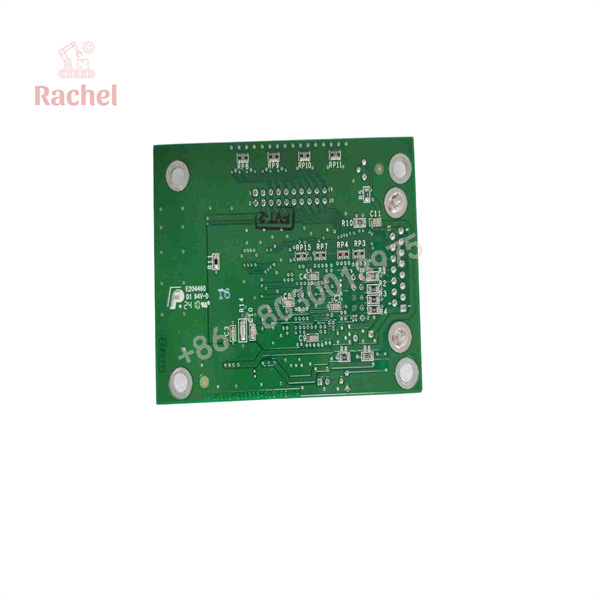

810-810202-013
Transparency SOP: QA & Testing
A replacement LAM 810-810202-013 module should be evaluated through a structured inspection process:
Inspection Workflow
- Part Authentication
- Verify Lam Research markings.
- Confirm complete part number and revision identifiers.
- Compare labeling with procurement records.
- Physical Examination
- Inspect PCB surfaces, connectors, mounting points, and components.
- Check for corrosion, contamination, or mechanical damage.
- Electrical Screening
- Perform continuity and power checks where applicable.
- Identify abnormal readings before installation.
- Functional Verification
- Validate controller communication using compatible equipment.
- Confirm startup sequence and system response after installation.
The Veteran’s Tech Trap Guide
⚠️ Firmware Compatibility Can Stop a Successful Swap
A controller board may appear identical but fail during initialization if firmware versions or configuration files do not match the installed Lam platform.
⚠️ Save Configuration Data Before Removal
Controller assemblies may contain parameters required for proper operation. Always back up available settings before removing the original module.
PRO TIP: Record every alarm code before shutdown. Semiconductor tools often provide valuable diagnostic information that disappears after replacing the failed hardware.
⚠️ Do Not Skip Connector Inspection
A damaged connector can create symptoms that look like a controller failure. Inspect the mating interface before installing the replacement module.
Dynamic FAQ
Q1. What is the LAM 810-810202-013 used for?
The 810-810202-013 is a Lam Research semiconductor equipment controller module used within process tool control architectures.
Q2. Is this module compatible with all Lam Research tools?
No. Lam equipment uses platform-specific controller assemblies. Compatibility must be verified against the exact tool model, revision, and configuration.
Q3. Is the 810-810202-013 a CPU module?
The exact internal architecture depends on the Lam equipment platform. It should be treated as an equipment-specific controller assembly rather than assumed to be a general-purpose PLC CPU.
Q4. What should buyers verify before purchasing New Surplus inventory?
Recommended checks include:
- Complete part number
- Revision level
- Original labeling
- Storage condition
- Inspection documentation
Q5. Can refurbished units be used in semiconductor production equipment?
Yes, when properly inspected, electrically tested, and verified for compatibility before installation.
Q6. What warranty coverage is normally available?
Warranty depends on supplier classification and testing level. Confirm whether the unit is New Surplus, Refurbished, or Used and review return conditions before purchase.
