Product Introduction & Engineering Value
A failed semiconductor equipment controller is rarely just a component swap. The bigger challenge is restoring the exact hardware configuration that the process recipe, software revision, and machine architecture expect. The LAM Research 685-247270-101 is an OEM equipment assembly designed for integration within LAM manufacturing platforms where exact part-number matching matters.
Maintenance teams dealing with legacy semiconductor tools often face long lead times and limited OEM availability. A correctly identified 685-247270-101 replacement can reduce extended equipment downtime, but engineers should validate revision level, connectors, firmware compatibility, and installed subsystem configuration before installation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | LAM Research |
| Part Number | 685-247270-101 |
| Equipment Category | Semiconductor manufacturing equipment |
| Assembly Type | Electronic control / process-support assembly |
| Application | LAM process equipment systems |
| System Role | Tool-specific control or monitoring function |
| Installation Method | OEM equipment rack/chassis installation |
| Compatibility | Determined by host LAM platform |
| Replacement Type | OEM spare / refurbished replacement |
| Interface Details | Verify from physical unit documentation |
| Firmware Requirements | Verify against installed machine configuration |
| Operating Parameters | Tool dependent |
Engineering note:
LAM Research spare assemblies frequently have tool-specific revisions. The suffix revision (-101) should be treated as part of the complete identification number, not ignored as a cosmetic variation.
Field Application & The “Trench” Experience
A semiconductor fab maintenance team running older LAM process equipment experienced intermittent process interruptions traced to a failed electronic assembly. The machine would complete initialization but generate abnormal communication behavior during process execution.

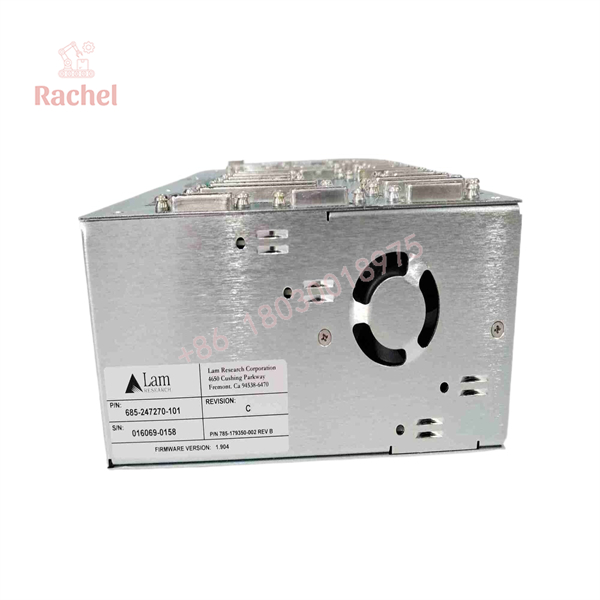

The replacement investigation showed that several visually similar LAM assemblies existed in the secondary market. The maintenance engineer rejected generic substitutes and matched the exact 685-247270-101 assembly, confirming connector layout, revision markings, and system compatibility before installation.
After replacement, the tool returned to normal operation without requiring changes to established process recipes.
Specific application scenarios:
Plasma etch chamber monitoring systems
Used within equipment architectures where stable electronic communication between process subsystems is required.
Semiconductor wafer fabrication maintenance programs
Maintained as a critical spare to reduce downtime risk for installed LAM platforms.
Legacy LAM tool lifecycle extension
Supports continued operation of production equipment when original supply channels become limited.
685-247270-101
685-247270-101
Transparency SOP: QA & Testing
A professional inspection process for a 685-247270-101 spare should include:
- Identity confirmation
- Verify OEM label.
- Confirm exact part number: 685-247270-101.
- Record serial and revision information.
- Physical examination
- Inspect PCB condition.
- Check connectors and mounting points.
- Look for contamination, corrosion, or previous repair evidence.
- Electrical evaluation
- Perform continuity and power checks where applicable.
- Inspect components for abnormal heat damage.
- Functional verification
- Test communication and operating behavior using compatible equipment when available.
- Documentation
- Record inspection results.
- Document refurbishment work.
- Provide condition report.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Revision numbers matter.
LAM assemblies can appear identical while containing different hardware revisions. Installing the wrong revision may create communication faults or unexpected tool behavior.
⚠️ Trap #2 — Do not match only by appearance.
A board with the same connector arrangement is not automatically interchangeable. Always verify the complete OEM part number.
PRO TIP:
Before ordering, capture:
- Full label information
- PCB markings
- Connector photos
- Existing machine model
- Current software revision if available
⚠️ Trap #3 — A failed module may not be the root cause.
Communication alarms can originate from cables, power supplies, backplanes, software configuration, or neighboring assemblies.
Dynamic FAQ
What equipment does LAM 685-247270-101 fit?
The exact compatible tool family depends on the installed LAM system configuration. Confirm compatibility using the OEM part number and equipment documentation.
Is 685-247270-101 a direct plug-and-play replacement?
Not always. Hardware revision, firmware requirements, and machine configuration should be verified before installation.
Is this part available as new surplus?
Availability varies. Suppliers should identify whether the unit is new surplus, used service stock, or refurbished inventory.
What information should be provided when requesting a quote?
Provide:
- Part number: 685-247270-101
- Equipment model
- Quantity required
- Required condition (new surplus/refurbished)
- Delivery requirements
How can buyers verify authenticity?
Request clear photographs of:
- OEM label
- Serial information
- Assembly markings
- Connector side
- Packaging if claimed as new surplus
What warranty should be expected?
Warranty depends on supplier and condition. A proper quotation should clearly define coverage period and whether failures are covered for functional testing, repair, or replacement.
Procurement Recommendation:
For LAM Research semiconductor spare assemblies such as 685-247270-101, the safest purchasing approach is not price comparison alone. Match the exact OEM identifier, confirm revision compatibility, and obtain inspection evidence before committing the replacement into a production tool.
