Description
Product Introduction & Engineering Value
A semiconductor process tool can continue running mechanically while losing critical measurement feedback from internal monitoring systems. The LAM 853-150806-001 is identified as an ASM EIOC CONTA MINI module used in Lam Research semiconductor equipment applications.
This assembly supports equipment-level monitoring and interface functions where accurate process information is required for stable production. In legacy Lam platforms, replacing a failed EIOC module is often preferred over larger control-system changes because it preserves existing tool architecture and validated process recipes.
Technical Specifications
Core Technical Parameters
| Parameter | Specification |
|---|---|
| Manufacturer | Lam Research |
| Part Number | 853-150806-001 |
| Assembly Description | ASM EIOC CONTA MINI Module |
| Product Family | Lam 853 Series Equipment Hardware |
| Module Type | Electronic interface / process monitoring assembly |
| Primary Function | Equipment communication and monitoring interface |
| Application Environment | Semiconductor fabrication equipment |
| Typical System Role | Process feedback and subsystem interface |
| Installation Area | Tool electronics enclosure / control assembly |
| Compatibility | Lam platform specific; verify equipment model before installation |
| Handling Requirement | ESD-controlled handling required |
| Maintenance Category | Critical semiconductor equipment spare |
Field Application & The “Trench” Experience
A wafer fabrication facility operating an older Lam plasma process platform began receiving intermittent process monitoring alarms. The chamber hardware, RF generator, and vacuum system all passed initial checks, but the equipment occasionally reported missing measurement feedback during recipe execution.
The maintenance team traced the issue through the tool communication chain and identified the ASM EIOC CONTA MINI module as the suspected failure point. A replacement LAM 853-150806-001 assembly was installed during a scheduled maintenance window. Engineers verified communication status, completed equipment diagnostics, and returned the chamber to production.
This type of repair is common in semiconductor fabs where a small electronics assembly can affect an entire process module.
Typical application scenarios include:
- Plasma Etch Process Monitoring
- Supporting measurement and feedback functions required for stable chamber operation.
- Lam Legacy Equipment Service
- Replacing aging electronics in installed process platforms without full system migration.
- Semiconductor Equipment Refurbishment
- Restoring used production tools for additional manufacturing capacity.

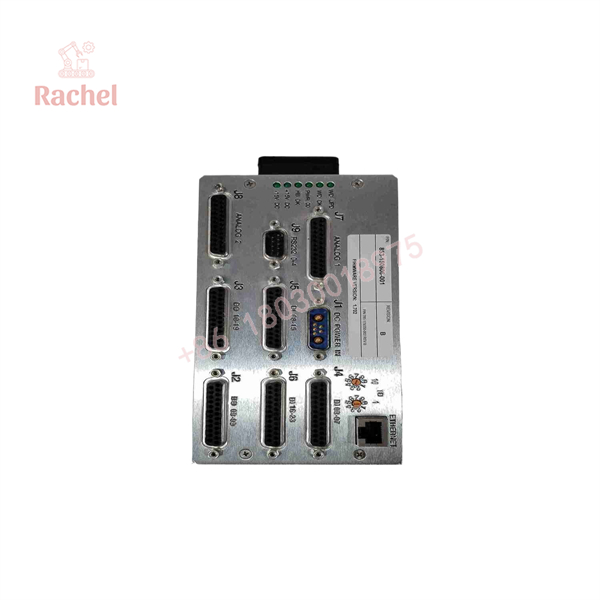

853-150806-001

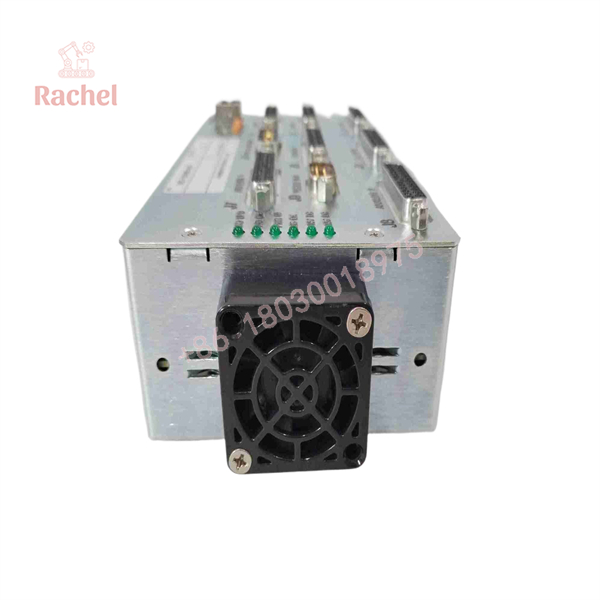

853-150806-001
Transparency SOP: QA & Testing
A replacement LAM 853-150806-001 should follow a controlled inspection procedure:
1. Incoming Inspection
- Verify Lam Research identification labels.
- Confirm complete part number.
- Check assembly condition and packaging.
2. Physical Review
- Inspect connectors, PCB surfaces, mounting points, and components.
- Check for contamination, corrosion, or mechanical impact.
3. Electrical Screening
- Perform applicable continuity and power checks.
- Verify communication interface conditions.
4. Functional Verification
- Test module communication with compatible Lam equipment when available.
- Confirm status indicators and subsystem response.
The Veteran’s Tech Trap Guide
⚠️ Do Not Assume Similar EIOC Modules Are Interchangeable
Lam EIOC assemblies may look similar but can contain different firmware, addressing, or hardware revisions. Always match the complete part number.
⚠️ Calibration Data May Matter
Measurement-related modules can rely on stored parameters. Replacing hardware without preserving configuration information may create new process alarms.
PRO TIP: Capture the original module status, alarm history, and communication settings before removal. This information speeds up troubleshooting if the replacement requires adjustment.
⚠️ Handle Like a Semiconductor Instrument
Even when removed from the cleanroom environment, these assemblies should be protected from static discharge and contamination.
Dynamic FAQ
Q1. What is the LAM 853-150806-001 used for?
The 853-150806-001 is a Lam Research ASM EIOC CONTA MINI module used in semiconductor equipment control and monitoring applications.
Q2. Is this module a PLC-style controller?
No. It is an equipment-specific semiconductor tool assembly rather than a general-purpose industrial PLC module.
Q3. Can the 853-150806-001 replace any Lam EIOC module?
No. Verify the exact part number, revision, installed tool model, and system configuration before replacement.
Q4. What should buyers confirm for New Surplus inventory?
Recommended checks include:
- Original Lam labeling
- Packaging condition
- Revision information
- Storage history
- Inspection records
Q5. Are refurbished 853-150806-001 modules suitable for production equipment?
Yes, when they have passed appropriate inspection, electrical checks, and compatibility verification before installation.
Q6. What warranty is normally available?
Warranty depends on supplier classification. Confirm whether the unit is New Surplus, Refurbished, or Used and review testing documentation before purchase.
