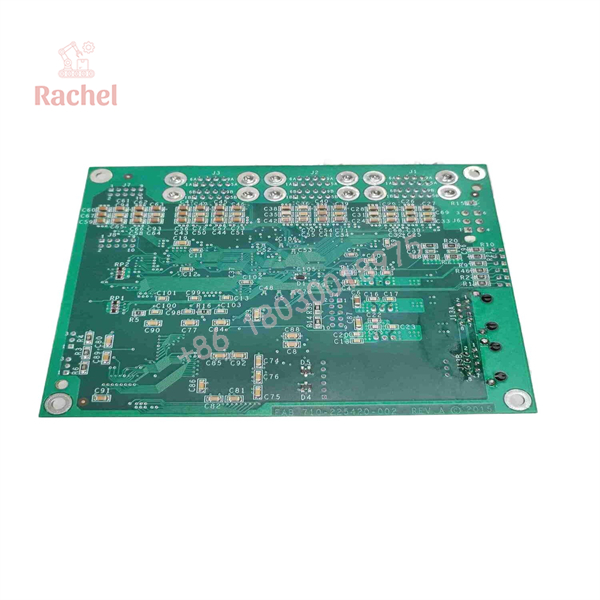

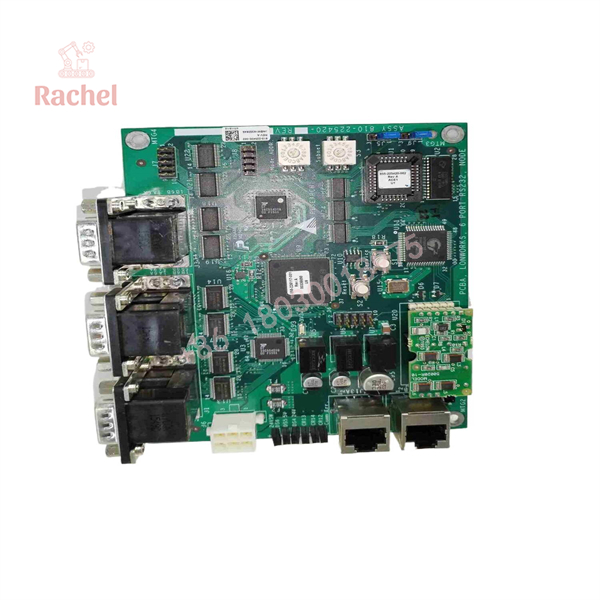

LAM 810-225420-002 LonWorks RS-232 Control Node PCBA

Description

Product Introduction & Engineering Value

Communication failures inside semiconductor process tools are difficult to troubleshoot because the equipment may appear mechanically healthy while internal controllers lose connectivity. The LAM 810-225420-002 is a PCBA identified as a LonWorks, 6 Port RS-232 Node assembly used in Lam Research equipment architectures.

This board functions as a communication bridge between equipment subsystems and controller networks. For fabs maintaining mature Lam platforms, keeping a tested spare available can reduce extended downtime caused by obsolete electronics and discontinued assemblies.

Technical Specifications

Core Technical Parameters

• Manufacturer: Lam Research
• Part Number: 810-225420-002
• Assembly Description: PCBA, LonWorks, 6 Port RS-232 Node
• Board Type: Communication interface PCB assembly
• Network Interface: LonWorks industrial communication network
• Serial Interface: Six RS-232 communication ports
• Primary Function: Equipment subsystem communication and serial device integration
• Application Environment: Semiconductor manufacturing equipment control electronics
• Installation Type: Tool electronics rack / controller enclosure installation
• Maintenance Role: Critical spare for legacy Lam equipment platforms
• Handling Requirement: ESD-safe handling procedures required
• Compatibility: Dependent on specific Lam tool model, firmware, and configuration

Field Application & The “Trench” Experience

A semiconductor facility operating older Lam process equipment began seeing intermittent subsystem communication alarms. The chamber hardware was functioning, but several peripheral controllers periodically disappeared from the equipment network.

The maintenance team initially investigated cabling and external communication devices. After reviewing diagnostic logs, engineers traced the fault to the internal communication node assembly. A replacement LAM 810-225420-002 PCBA was installed during a scheduled maintenance window, followed by communication verification and subsystem checks. The tool returned to stable operation without replacing the larger controller system.

Typical application scenarios include:

1. Lam Process Tool Communication Networks
   Supporting internal communication between controllers, sensors, and equipment subsystems.
2. RS-232 Device Integration
   Maintaining legacy serial-connected modules used for monitoring and control functions.
3. Semiconductor Equipment Refurbishment Projects
   Restoring older Lam platforms where original communication assemblies are no longer supplied through standard channels.

810-225420-002

810-225420-002

Transparency SOP: QA & Testing

A replacement LAM 810-225420-002 should be processed through a controlled inspection sequence:

1. Identification Review

• Verify part number marking.
• Confirm board revision and manufacturer labels.
• Compare against the removed assembly.

2. Physical Examination

• Inspect RS-232 connectors and board edge contacts.
• Check PCB condition, solder joints, and components.
• Look for corrosion, contamination, or mechanical damage.

3. Electrical Screening

• Check for abnormal resistance conditions.
• Verify power-related circuits where applicable.
• Inspect communication interface components.

4. Functional Testing

• Confirm LonWorks communication where test equipment is available.
• Verify RS-232 port operation.
• Record test results before inventory release.

The Veteran’s Tech Trap Guide

⚠️ Communication Boards Are Configuration Sensitive

A replacement communication node may power up normally but still fail integration if addressing, communication parameters, or controller configuration data do not match the installed system.

⚠️ Do Not Mix RS-232 Cables

Older semiconductor tools often use custom serial cable pinouts. A standard RS-232 cable may physically connect but create communication failures.

PRO TIP: Label every serial connection before removing the old board. A single swapped port can create confusing downstream alarms.

⚠️ Check Firmware and Revision History

Legacy Lam assemblies may have multiple revisions. Always compare revision markings before installing a replacement.

Dynamic FAQ

Q1. What is the LAM 810-225420-002 used for?

The 810-225420-002 is a Lam Research PCBA used as a LonWorks communication node with six RS-232 ports for semiconductor equipment control applications.

Q2. Is the 810-225420-002 a controller CPU board?

No. This assembly is primarily a communication interface board rather than a main equipment processor.

Q3. Can this board be installed directly as a replacement?

Only after confirming tool compatibility, revision level, communication configuration, and connector assignments.

Q4. What should buyers verify when purchasing New Surplus inventory?

Confirm:

• Original part labeling
• Board revision
• Packaging condition
• Storage history
• Available inspection records

Q5. Are refurbished LAM 810-225420-002 boards suitable for production equipment?

Yes, when they have been properly inspected, electrically screened, and functionally tested before installation.

Q6. What warranty coverage should be expected?

Warranty terms depend on supplier classification. Buyers should confirm coverage period, return conditions, and whether the unit is New Surplus, Refurbished, or Used before purchase.
