Lam Research 810-082745-003 Semiconductor Etch Controller Board

Description

Product Introduction

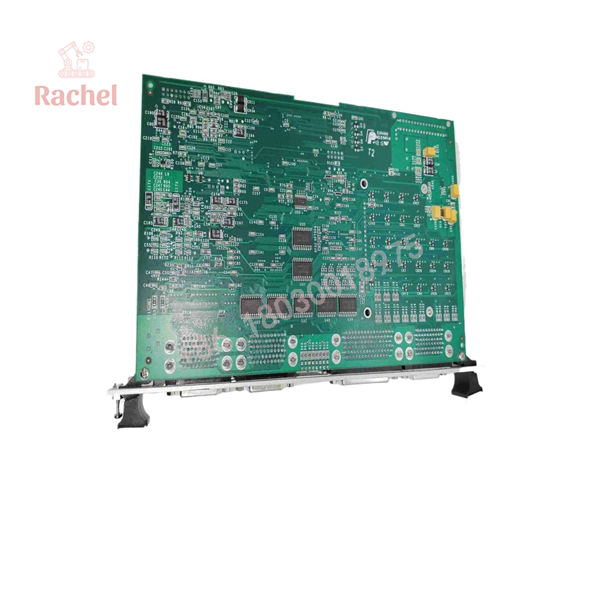

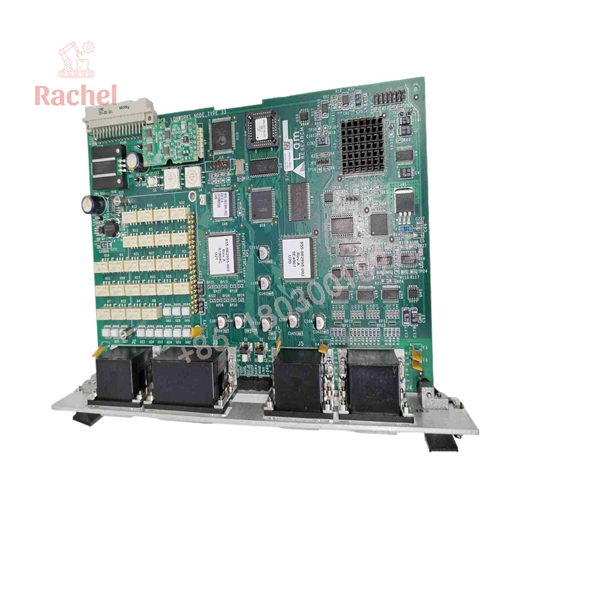

The Lam Research 810-082745-003 is a specialized LonWorks node printed circuit board designed specifically for distributed control architectures within Lam semiconductor manufacturing equipment. Deployed across legacy 200mm Alliance and 2300 series dry etching and thin-film deposition platforms, this module routes real-time telemetry between subsystem sensors, mass flow controllers, and the host system rack.

Engineered for precision fabrication environments, the 810-082745-003 uses the LonWorks Node Type 33 architecture to deliver low-latency control loop execution. By offloading local I/O handling from the central single-board computer, it maintains steady chamber signal timing, prevents data packet loss under heavy RF interference, and keeps plasma etching parameters within tight semiconductor tolerances.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: You’re running a critical 200mm wafer etch lot at 3 AM when a chamber suddenly drops out of process with a “LonWorks Comm Timeout” fault. The host computer loses handshake with the gas box, immediately aborting the recipe and risking thousands of dollars in scrapped silicon. A degraded line transceiver on the node board inside the bay controller is the culprit. In a high-yield fab, every minute of unscheduled tool downtime costs real money, and waiting weeks for an OEM replacement is not an option.

• Semiconductor Dry Etch Equipment – Lam Alliance/2300 Etch Chambers – Routes local sensor data, pressure readings, and valve actuation commands back to the main tool controller.
• Chemical Vapor Deposition (CVD) Platforms – Gas Box & Distribution Panels – Coordinates real-time mass flow controller (MFC) handshakes and chamber isolation interlocks.
• Subsystem I/O Networking – Fab Distributed Control – Functions as an isolated LonWorks node to pass high-speed digital/analog logic through noisy RF plasma environments.

Field Replacement Case: A fab in Texas encountered intermittent recipe aborts on an Alliance C upgraded chamber. Signal tracing showed corrupted LonWorks frames originating from a thermally stressed node card. Swapping the faulty board with a pre-tested 810-082745-003 unit restored clean bus handshakes in under 30 minutes, getting the chamber back online before the shift ended.

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual test benches before signed clearance:

1. Inbound Visual Inspection: Verify PCB physical integrity under magnification—checking for micro-cracks, trace delamination, trace burn, or cold solder joints.
2. Power-On Self Test (POST): Apply 24V DC bench power to check current draw, rail voltages, and thermal profiles via FLIR imaging to catch leaky capacitors.
3. LonWorks Bus Verification: Mount board in a LonWorks test loop to confirm node address assignment, packet transmission rates, and zero frame-loss under load.
4. Signal Waveform Analysis: Check differential communication line drivers with a digital oscilloscope to ensure rise/fall times meet EIA-709 standards.
5. Anti-Static Packaging: Clean contact fingers, seal board in a heavy-duty conductive ESD bag, and pack in custom anti-static foam enclosure.

810-082745-003

810-082745-003

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Match LonWorks Node Address Switches: Before taking the failed board out of the rack, take a photo of any onboard rotary or DIP address switches. Installing the replacement card with default zero addresses will cause the host controller to reject the node during system boot.
• ❗ Power Down Cabinet Breakers: Never pull this card while the tool’s 24V bus is energized. Live-swapping LonWorks node boards can cause voltage transients that fry adjacent I/O modules or corrupt the backplane bus.
• ⚠️ Watch out for RF Noise Grounding: Check the board’s chassis grounding tabs and mounting screws. Corrosion or a loose screw on the board mounting bracket leaves the card vulnerable to stray RF interference from the plasma generator, causing random comm faults.
• ❗ Verify Firmware & Sub-revision Match: Make sure the suffix (-003) matches your bill of materials. Sub-revision changes on Lam boards sometimes alter firmware transceiver timings, causing timing mismatches on older tool architectures.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the Lam 810-082745-003 board hot-swappable?

A: No. Pulling this card live will drop the LonWorks loop and risks damage to the backplane edge connector. Always shut down system DC power to the target bay before extraction.

Q: Does this card require software flashing upon installation?

A: Generally, no. As a hardware LonWorks node, the host system handles node configuration upon boot up once the hardware DIP/rotary switches match the original node address.

Q: Why buy Surplus/Refurbished rather than buying directly from Lam Research?

A: Lead times for legacy 200mm/300mm tool parts from the OEM can stretch for months or carry steep legacy pricing. Our pre-tested surplus units ship immediately, keeping your chamber producing without long lead times.

Q: How do you verify this board isn’t counterfeit or broken?

A: Every unit undergoes visual, thermal, and LonWorks functional bench testing. We inspect part silk-screening, solder mask signatures, and board layout against factory original standards.

Q: What warranty comes with this module?

A: We provide a full 12-month replacement warranty. If the board fails during normal operation within 365 days, we replace it or issue a full refund.
