Product Introduction & Engineering Value
If a Vector Extreme system has been running for years, a failed controller board can become a procurement problem before it becomes a troubleshooting problem. The 61-428059-00 is identified as an EIOC 1 controller associated with Lam Research Vector Extreme semiconductor-processing equipment. It is therefore best treated as an equipment-specific replacement assembly rather than a generic industrial I/O card.
That distinction matters. A visually similar controller with the same connector arrangement is not automatically interchangeable. Revision, firmware, board configuration, and the host system’s software expectations should be checked before installation.
Technical Specifications
Because Lam Research does not appear to publish a broadly accessible public datasheet for this exact spare-part number, the following table intentionally avoids inventing electrical specifications.
| Specification | Available Identification |
|---|---|
| OEM | Lam Research |
| OEM Part Number | 61-428059-00 |
| Equipment Family | Vector Extreme |
| Assembly | EIOC 1 |
| Board Revision | Rev. A reported |
| Application | Semiconductor manufacturing equipment |
| Component Category | Controller / control board |
| Associated P/N | 785-179350-002 reported by secondary-market source |
| Reported Firmware | V1.514 |
| Documented Condition Examples | Used / tested / as-is depending on supplier |
| Exact I/O Architecture | Verify against OEM documentation and installed board |
| Electrical Ratings | Verify from equipment documentation/nameplate |
| Firmware Compatibility | Verify before substitution |

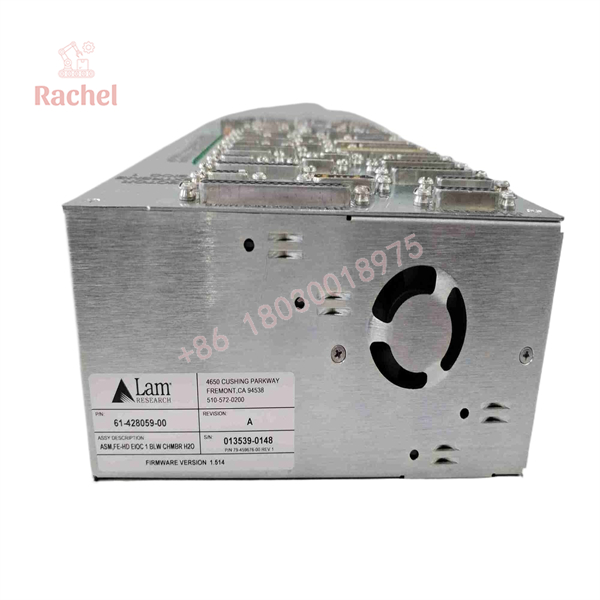

A current secondary-market listing explicitly describes the assembly as “LAM RESEARCH 61-428059-00 VECTOR EXTREME EIOC 1 REV A.” Another supplier identifies it as a Vector Extreme EIOC 1 controller and reports two used units available.
Do not treat the absence of published specifications as permission to estimate them. For semiconductor equipment, incorrect assumptions about board-level voltage, communication buses, or I/O assignments can damage equipment or create a difficult-to-diagnose process fault.
61-428059-00
61-428059-00
Field Application & the “Trench” Experience
Consider a fab maintenance team dealing with a Vector Extreme tool that will not complete its normal initialization sequence after a controller failure. Power supplies test normally. The cabinet wiring is intact. The fault follows the controller assembly.
The maintenance engineer finds a replacement listed as 61-428059-00, but the seller’s photograph shows a different revision marking. This is where experienced technicians slow down rather than speed up. The correct procedure is to compare the complete board number, revision, connectors, firmware information, and physical configuration before authorizing installation.
For a production tool, an apparently cheaper substitute that requires several rounds of compatibility testing can cost more than a correctly identified spare.
Specific Application Scenarios
- Vector Extreme process-tool controller replacement after an EIOC-related hardware failure.
- Fab spare-parts inventory stocking for an older Vector Extreme installation where OEM lead time is uncertain.
- Emergency controller exchange during semiconductor-equipment maintenance when an identical board is available.
- Obsolescence management for legacy Lam equipment where maintaining tested replacement assemblies is preferable to an uncontrolled controls retrofit.
Transparency SOP: QA & Testing
For this type of semiconductor-equipment controller, visual inspection alone is inadequate.
A sensible receiving procedure is:
1. Identity check
Confirm 61-428059-00, board revision, serial number, labels, connector layout, and any secondary part numbers.
2. Physical inspection
Check PCB condition, connectors, edge contacts, mounting hardware, component damage, corrosion, contamination, and evidence of previous repair.
3. Configuration comparison
Compare the replacement against photographs or records from the failed board. Pay particular attention to revision markings and configuration components.
4. Firmware verification
Where equipment access permits, record the installed firmware/software information before placing the board into production service. One current secondary-market source reports V1.514, but this should not be assumed to apply to every 61-428059-00 assembly.
5. Controlled functional test
Where appropriate test equipment and a compatible Vector Extreme system are available, verify initialization, communication, diagnostics, and normal equipment operation.
6. Documentation
Record the tested serial number and revision. For critical fab spares, retain this information with the inventory record.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Confusing the board number with the equipment model
61-428059-00 is a Lam Research spare-part number. Vector Extreme identifies the equipment platform. Do not purchase another Vector Extreme controller simply because its description contains the same equipment family name.
⚠️ Trap #2 — Ignoring revision
The commonly listed unit is specifically described as EIOC 1 Rev. A. A different revision may have different firmware, hardware changes, or compatibility requirements.
PRO TIP: Photograph the original board’s complete label before removal. Include every revision code and secondary P/N in the purchasing record.
⚠️ Trap #3 — Assuming firmware is universal
One supplier associates the part with firmware V1.514, but that does not establish V1.514 as a universal firmware requirement for every board carrying 61-428059-00.
⚠️ Trap #4 — Buying “tested” without defining the test
A seller may describe a controller as tested without having tested it in an actual Vector Extreme system. Ask what was tested: power-up only, bench diagnostics, communication, or complete system operation.
Dynamic FAQ
What is Lam Research 61-428059-00?
It is identified in secondary-market documentation as a Lam Research Vector Extreme EIOC 1 controller, with Rev. A specifically documented for some units.
Is 61-428059-00 a PLC module?
Not in the conventional Siemens, Allen-Bradley, or Schneider PLC sense. It is an equipment-specific controller assembly used within Lam Research semiconductor-processing equipment.
What is the associated part number 785-179350-002?
A secondary-market listing associates 785-179350-002 with 61-428059-00. Because public OEM documentation is limited, this relationship should be confirmed against the label on the actual board before treating the numbers as interchangeable.
Does every 61-428059-00 have firmware V1.514?
No conclusion that strong can be made from the available evidence. V1.514 has been reported for a listed unit, but firmware should be checked on the actual replacement assembly and against the target Vector Extreme system.
Is New Surplus 61-428059-00 available?
It may be available through secondary industrial inventory channels, but current listings vary considerably in condition. Public listings include used and as-is units, so New Surplus status should be confirmed from the supplier’s actual inventory record rather than inferred from the part number.
What should I request before purchasing?
Request a clear photograph of the actual 61-428059-00 label, revision marking, connector side, and PCB assembly. Also request the condition classification, test procedure, firmware information if available, warranty period, and return terms.
What warranty should apply?
Warranty is supplier-specific. One current marketplace listing specifies a 30-day satisfaction guarantee for its used Rev. A unit, while other suppliers may provide different terms. The purchase order should state the exact warranty rather than relying on a generic “tested” description.
