Lam Research 810-234640-312 Chamber I/O Control PCB

Description

Product Introduction

The Lam Research 810-234640-312 is a core circuit board assembly engineered for high-precision signal processing inside Lam 200mm and 300mm wafer processing equipment. Deployed across legacy and modern dry etch platforms—including the 2300, Kiyo, and Exelan tool sets—this module functions as a critical interface between local chamber instrumentation and the main tool rack controller.

Designed to operate in harsh semiconductor fab environments, the 810-234640-312 manages localized telemetry from mass flow controllers (MFCs), vacuum switches, and temperature loops. Built-in optoelectronic isolation and precision line conditioning shield delicate sensor signals from extreme electromagnetic interference (EMI) generated by high-power RF match networks during plasma execution.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: You are managing a 300mm etch bay during a high-volume run when Chamber A drops out of process with an unrecoverable “MFC Communication Timeout” alarm. The tool halts instantly, threatening to scrap a full cassette of advanced node wafers. Replacing individual mass flow controllers yields nothing; the root cause is a failing line driver IC on the chamber control PCB. In high-throughput wafer fabs, every minute of unscheduled tool downtime costs serious money, making fast hardware replacement mandatory.

• Conductor & Dielectric Etch Chambers (Kiyo / 2300 Series) – Controls high-speed signal routing between gas delivery manifolds, pressure transducers, and the main tool CPU.
• Vacuum & Exhaust Systems – Coordinates digital interlocks for throttle valves, gate valves, and turbo pump status monitoring.
• Chassis Signal Isolation – Prevents plasma RF energy from coupling into low-voltage analog sensor lines back at the bay controller.

Field Replacement Case: A wafer fab in Oregon experienced intermittent recipe aborts caused by phantom temperature spikes on a 2300 series chamber. Oscilloscope traces revealed thermal drift on the old board’s analog buffer section. Swapping in a pre-tested 810-234640-312 replacement board resolved the drift immediately, clearing the tool for qualification in under 45 minutes.

810-234640-312

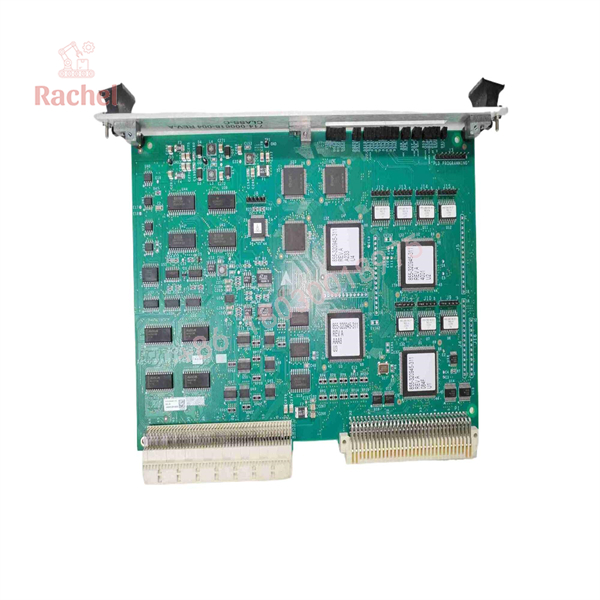

810-234640-312

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual bench setups before signing off for shipment:

1. Inbound Microscopic Inspection: Check PCB traces, solder joints, and edge connectors for micro-fractures, thermal stress, or chemical residue under high magnification.
2. Power Rail Integrity Test: Apply 24V DC bench power to measure baseline current draw and identify leaky capacitors using FLIR thermal imaging.
3. I/O Channel Verification: Drive test signals across all digital and analog channels to verify optocoupler switching speeds and signal gain accuracy.
4. Noise Isolation Check: Test onboard isolation barriers to ensure zero cross-talk between high-voltage control lines and sensitive analog telemetry channels.
5. Anti-Static Packaging: Clean backplane edge pins with electrical contact cleaner, seal the board in a conductive ESD bag, and ship in custom foam-lined boxes.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Match Suffix Revision Identifiers: Pay close attention to the dash number (e.g., -312 vs. -310 or -314). Lam periodically updates component tolerances or onboard PAL/GAL logic between dash revisions. Mixing dash numbers can cause timing faults or calibration errors in software.
• ❗ Power Down System Rack Breakers: Never pull this board while 24V DC auxiliary power is applied to the card cage. Live-swapping can trigger voltage arcs across edge connectors, frying sensitive onboard chips or damaging adjacent cards.
• ⚠️ Inspect Connector Pins Before Installation: Card cage backplane pins are prone to bending if cards are inserted unevenly. Align the PCB guide rails carefully and push straight in using balanced pressure on the card ejector handles.
• ❗ Verify RF Grounding Straps: Ensure all card cage grounding straps and mounting hardware are clean and torqued tight. Loose grounding allows stray RF noise from plasma match units to bleed directly into sensor channels.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the 810-234640-312 board hot-swappable?

A: No. Extracting this card while power is applied risks arcing edge connectors and causing DC bus transients. Always shut down power to the card cage prior to replacement.

Q: What is the difference between part numbers 810-234640-312 and 855-234640-312?

A: The 810- prefix designates the bare PCB or sub-level assembly number, while the 855- prefix indicates the complete, fully populated top-level printed circuit board assembly (PBA) ready for tool installation.

Q: Does this card require firmware flashing upon installation?

A: Typically no. The board functions primarily as a hardware signal conditioning and driver interface. Once physically installed, the host controller initializes communication automatically during tool boot-up.

Q: Why buy New Surplus or Refurbished stock over ordering directly from the OEM?

A: OEM lead times for legacy 200mm and 300mm chamber electronics can stretch for weeks or months. Our pre-tested surplus stock ships immediately, getting your chamber back into production without delay.

Q: What warranty comes with this board?

A: We back all our 810-234640-312 units with a full 12-month replacement warranty. If the card fails under normal operating conditions within 365 days of purchase, we will replace it or issue a full refund.
