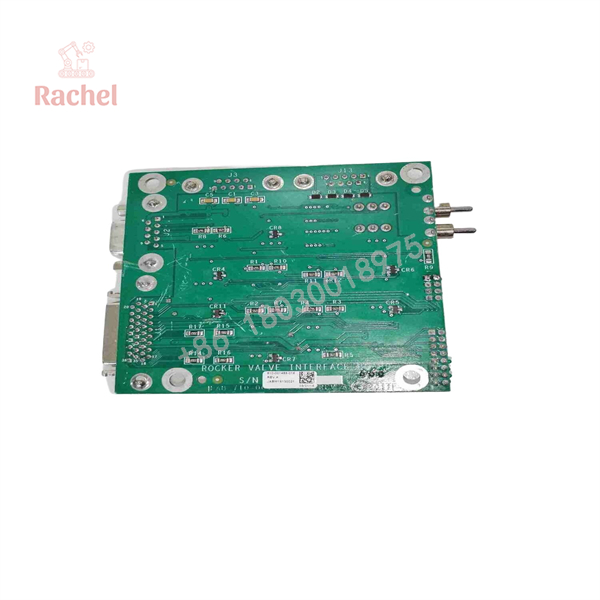

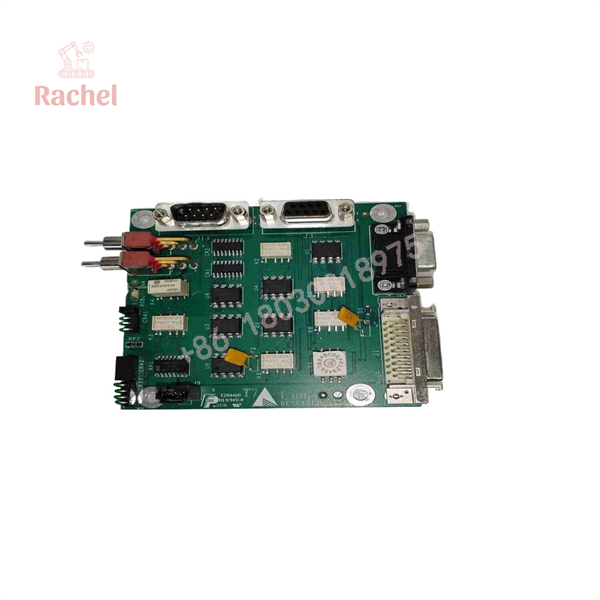

Lam Research 810-001489-016 Rocker Valve Interface Board

Description

Product Introduction

The Lam Research 810-001489-016 is a specialized rocker valve interface board designed for semiconductor etch and deposition tools. Mounted directly within the process module’s gas delivery or vacuum management sub-bay, this board translates digital control commands into high-precision drive signals for electro-pneumatic rocker and isolation valves while transmitting real-time open/close limit switch feedback to the host controller.

Unlike off-the-shelf valve drivers, the 810-001489-016 is built to survive the extreme electromagnetic interference (EMI) generated by high-power RF generators in plasma chambers. It handles rapid valve actuation without signal bounce or relay degradation, keeping chamber pressure transitions tight and protecting high-vacuum environments from dangerous cross-contamination.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

It is 4:45 AM in an active 200mm/300mm wafer fab. The etch chamber drops offline mid-process due to a “Rocker Valve Timeout Fault.” The tool controller refuses to cycle gas lines because the interface card isn’t acknowledging the valve position sensors. Scraping a single lot of production wafers costs tens of thousands of dollars, and every hour the chamber sits idle destroys tool utilization metrics. Swapping the entire valve cabinet is out of the question. Pulling the suspect 810-001489-016 interface card and replacing it with a bench-verified unit resolves the feedback fault immediately, allowing the tool to pass pump-down checks and return to production before the morning shift change.

• Plasma Etch (Dry Etching) – Process Gas Line & Chamber Isolation – Controls rapid-cycling rocker valves to manage process gas delivery and roughing line isolation.
• Chemical Vapor Deposition (CVD) – Load Lock Vacuum Control – Manages actuation timing for slit valves and chamber isolation rocker valves.
• Wafer Transport Modules – Transfer Chamber Pressure Balancing – Interfacing position logic on differential pressure isolation valves between main transfer chambers.

Transparency SOP: Quality Assurance & Testing

We treat semiconductor spares with the absolute rigor fab cleanrooms require. Every board undergoes strict verification before shipment:

1. Inbound Physical Inspection: Complete optical inspection under magnification for trace micro-cracks, damaged connectors, component discoloration, and confirmation of genuine OEM trace layouts.
2. Power Rail Integrity Check: Bench-tested with regulated laboratory power to confirm zero shorts on power/ground planes and verify onboard voltage regulators.
3. Simulated Signal Handshake: Installed in a dedicated signal simulation jig to verify valve actuator outputs and read-back logic from simulated optical/magnetic position sensors.
4. Thermal Stress & Resistance Testing: Verified under continuous load to check for thermal drift or intermittent trace breaks.
5. Clean Packaging: Degreased, treated with anti-static spray, sealed inside heavy-duty anti-static ESD bags, and packed in reinforced foam containers.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

⚠️ 1. Beware of Micro-Revision Differences: Lam Research often updates board revs (-002, -010, -016). While physical dimensions match, pinouts or component logic can vary slightly between tool generations. Verify that your system schematics match the -016 dash number before dropping it in.

❗ 2. Check the Solenoid Coils First: If your old 810-001489-016 failed due to a shorted drive transistor, do not plug the new board straight in without testing the resistance of the valve solenoids. A shorted 24V valve coil will instant-fry the output stage of your replacement board the millisecond you hit power.

⚠️ 3. Inspect the Edge Connector Pins: Corrosive trace gases inside sub-fab cabinets can degrade backplane contacts over time. Before seating the replacement PCBA, clean the rack connector pins with electrical contact cleaner to prevent high-resistance logic errors.

❗ 4. Strict ESD Precautions Required: Semiconductor interface cards use high-density, low-voltage logic chips that are extremely sensitive to static. Wear a grounded wrist strap when pulling or installing this board—holding it by the raw PCB edges is non-negotiable.

810-001489-016

810-001489-016

Frequently Asked Questions (FAQ)

Q: Is the Lam Research 810-001489-016 hot-swappable?

A: Absolutely not. Pulling or seating this card while the 24V supply or tool backplane is live risks triggering voltage spikes that can corrupt board micro-logic or trip adjacent interlocks. Always rack-power down the module before swap-outs.

Q: Can I use an older -002 dash number board in place of the -016?

A: To be honest, we don’t recommend it. While older revisions like the -002 handle basic valve control, the -016 revision incorporates updated component revisions and CE-compliant filtering required for stable performance on newer tool sets.

Q: How do you verify this board works if you don’t own an entire Lam etch tool?

A: We use specialized test jigs that emulate the I/O handshake, signal voltages, and sensor feedback loops of the host tool. If a card fails to switch states accurately or drops sensor feedback during bench testing, it never leaves our warehouse.

Q: Does this board come with a warranty?

A: Yes. All our tested surplus and refurbished 810-001489-016 boards include a comprehensive 12-month replacement warranty. If it fails under standard operational parameters, we replace it immediately.

Q: Is there any onboard calibration required after installation?

A: No. The board functions purely as an interface hardware layer. Once properly seated and connected, parameter timing and valve logic are managed directly by the main Lam tool software.
