Product Introduction
The Lam Research 605-108114-003 is a high-reliability internal electronic circuit card assembly engineered specifically for Lam Research semiconductor manufacturing equipment. Deployed in high-uptime fabrication environments (fabs), this board operates within the main electronics bay or tool controller rack to manage critical real-time sub-system signals.
Built to withstand 24/7 continuous cleanroom operations, the 605-108114-003 handles sensor signal conditioning, valve/actuator driver interfacing, or system bus communications. Replacing a compromised or thermal-stressed board restores precise tool feedback loop control, eliminating interlock faults and preventing costly wafer-in-process aborts.
Key Technical Specifications
| Parameter | Value |
| Part Number | 605-108114-003 |
| Manufacturer | Lam Research Corporation |
| Equipment Compatibility | Lam Etch & Deposition (CVD/ALD) Tool Platforms |
| Board Type | System I/O & Signal Interface Sub-Assembly |
| Mounting Style | Card Cage Chassis / Rack-Mount Slot |
| Logic Supply Voltage | Standard Tool Rack Power Rail (e.g., ±15V, +5V DC) |
| Environmental Standard | Class 10/100 Cleanroom Safe Enclosure Component |
| Operating Temp | 0°C to +55°C (Industrial Fab Ambient) |
Application Scenarios & The “Trench” Experience
In a high-volume 300mm wafer fab, an Etch chamber unexpectedly latches a “Chamber I/O Timeout” or signal drift alarm, halting the process recipe mid-cycle. The external sensors and mass flow controllers (MFCs) test fine, but the tool controller reports inconsistent digital handshake states.
The root cause is often thermal degradation on the internal signal-isolation optocouplers or bus line logic of the 605-108114-003 board after years of continuous high-duty cycling. Swapping out the faulted board with a pre-tested 605-108114-003 module clears the latched communication fault, re-establishes precise sub-system telemetry, and allows the tool to pass its chamber requalification routine quickly.
Typical Applications:
- Semiconductor Plasma Etching – Signal interfacing for RF matching units, gas box valves, and pressure control modules.
- Chemical Vapor Deposition (CVD) – Real-time I/O monitoring for thermal and vacuum chamber interlocks.
- Fab Automation Racks – Sub-assembly controller card in mainframe rack enclosures.
Transparency SOP: Quality Assurance & Testing
Every surplus or refurbished Lam Research 605-108114-003 PCB undergoes a strict 5-stage testing protocol before cleanroom-compliant packaging:
- Microscopic Component Audit: Inspection under high magnification for trace damage, solder joint integrity, thermal stress on ICs, and capacitor degradation.
- Cold Resistance & Short Sweep: Point-to-point static resistance checks across primary power supply rails to ensure zero dead shorts.
- Power-On Voltage Rail Verification: Bench-powered testing on a dedicated test backplane to confirm onboard voltage regulators and logic levels hit exact OEM tolerances.
- I/O & Signal Line Verification: Oscilloscope logic-sweep across input/output channels to verify signal rise times and noise suppression.
- ESD & Cleanroom Packaging: Decontaminated, sealed in anti-static shielding bags with moisture absorbers, and foam-padded for transit.

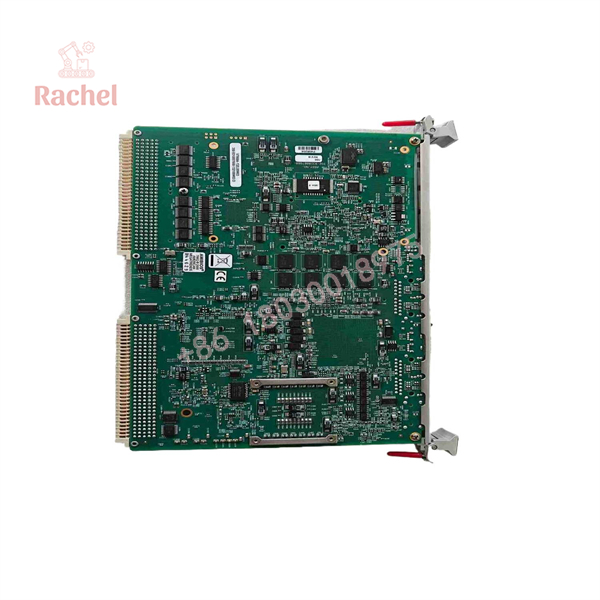

605-108114-003

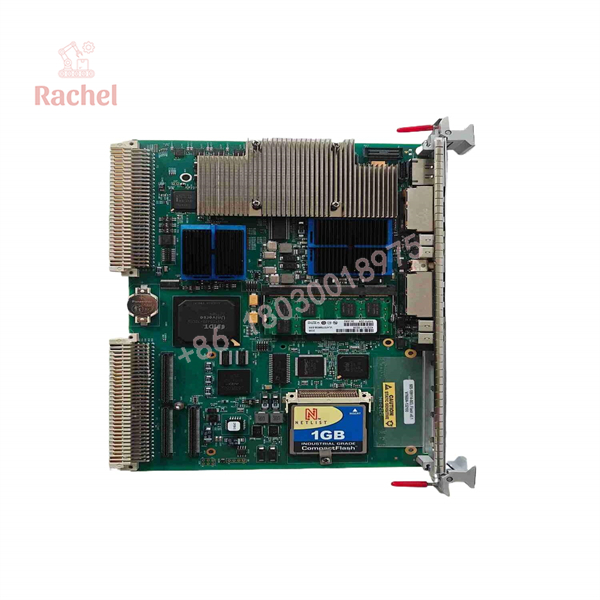

605-108114-003
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ Observe Strict Cleanroom & ESD Protocols: Semiconductor PCBs contain highly static-sensitive CMOS and FPGA components. Always handle the 605-108114-003 board using ESD-grounded wrist straps in an ESD-safe workspace, and clean the board exterior according to your fab’s contamination guidelines before introducing it to the cleanroom bay.
❗ Verify Revision and Firmware Dash Numbers: Confirm that the -003 revision code matches your tool’s hardware baseline configuration. In Lam Research systems, different revision suffixes can denote changes in FPGA code, jumper settings, or pinout configurations.
⚠️ Power Down Tool Rack Before Extraction: Never hot-swap this board while the tool’s card cage backplane is energized. Removing or inserting card-edge connectors under load can cause arc-over damage to gold connector finger traces and corrupt adjacent rack cards.
Frequently Asked Questions (FAQ)
Q: Is the Lam 605-108114-003 a plug-and-play replacement?
A: Yes, physically and electrically it is designed for direct insertion into the target Lam card cage slot. However, you should check any hardware dip-switches or jumper settings on the replacement card against your original unit before power-up.
Q: What is the difference between this Lam part number and similarly numbered marine/industrial parts?
A: Part number 605-108114-003 is utilized by Lam Research for semiconductor equipment. While other manufacturers (such as Sperry Marine) share similar numerical formatting, this board is specific to Lam Research platform architectures.
Q: Does this board require software flashing after installation?
A: Most hardware interface boards in this series rely on onboard firmware or receive configuration parameters directly from the tool’s host computer during boot-up. Re-calibrating affected chamber I/O points in the service menu is recommended.
Q: What warranty is provided with this surplus component?
A: We back every surplus and reconditioned Lam Research 605-108114-003 board with a full 12-month operational warranty. If the module fails bench checks or exhibits hardware faults within 365 days, we provide an immediate replacement or full refund.
