Lam Research 853-001983-011 Printed Circuit Board Module

Description

Product Overview

The Lam Research 853-001983-011 is an OEM electronic circuit board module utilized across Lam’s semiconductor processing equipment platforms (such as dry etch and plasma deposition systems). Engineered for high-reliability semiconductor cleanroom environments, this assembly processes critical control signals, communication protocols, or low-voltage power distribution between the main system controller and chamber-level hardware.

Technical Specifications

Application Scenarios & Fab Integration

• Semiconductor Wafer Processing: Functions as a critical control module managing sensor feedback, valve actuation, or RF matching communication loops inside plasma etch tools.
• Fab Maintenance & Tool Upkeep: Used by equipment engineers and field service teams to resolve tool interlock alarms, communication dropouts, or power rail faults on Lam toolsets.
• Preventative Overhaul: Swapped during scheduled tool rebuilds to maintain tight process repeatability and minimize unscheduled chamber downtime.

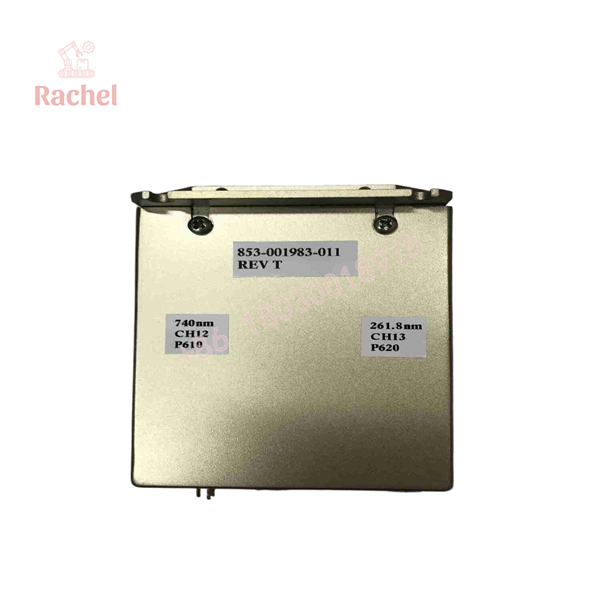

853-001983-011

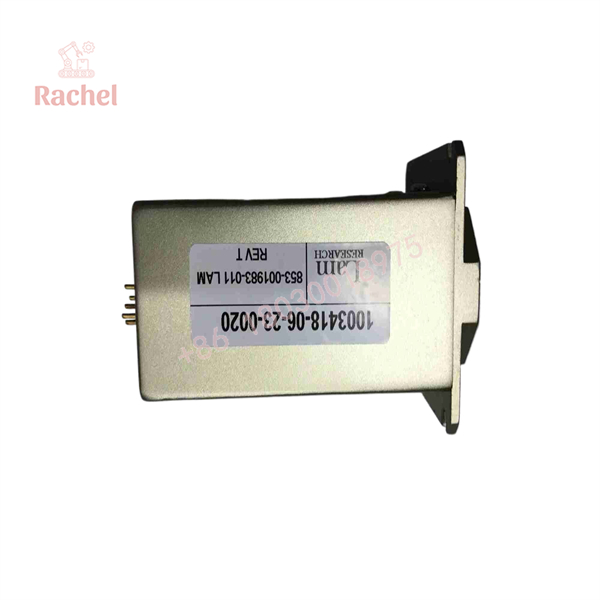

853-001983-011

Common Troubleshooting & Replacement Tips

• ⚠️ ESD Sensitivity: Always handle this assembly with grounded wrist straps inside an ESD-safe environment to prevent static damage to sensitive ICs.
• ❗ Verify Revisions: Check the revision suffix (e.g., Rev A, Rev T) on your existing module label to ensure exact functional and firmware compatibility before swapping boards.
• ⚠️ Inspect Connector Pins: Before inserting into the tool chassis backplane, inspect the multi-pin connector for bent or recessed contacts to prevent short circuits.
