Core Product Summary
The Lenze E84AHWMC1534V-V003 is a 15 kW industrial frequency inverter built on the Lenze 8400 motion platform structure. Engineered for demanding speed-controlled and positioning applications, the module operates from a 3-phase 400/480 VAC power supply to deliver precise torque and frequency regulation to three-phase AC induction and servo motors.
Configured with specialized hardware and firmware parameters (including WindMotion pitch-control drive setups), the E84AHWMC1534V-V003 manages high-dynamic motion profiles. It features an integrated power stage, dedicated control terminals, and onboard diagnostic capabilities, providing reliable power conversion inside industrial control cabinets and renewable energy pitch-control enclosures.
Key Technical Specifications
| Parameter | Specification |
| Manufacturer | Lenze |
| Model / Order Code | E84AHWMC1534V-V003 |
| Product Series | 8400 Inverter Series / WindMotion Pitch Drive Architecture |
| Power Rating | 15 kW (20 HP class) |
| Input Supply Voltage | 3-Phase 400 / 480 VAC |
| Output Voltage | 0 to 3-Phase Mains Voltage |
| Power Stage Identifier | 1534 (corresponds to 15 kW, 400V class) |
| Enclosure Rating | IP20 (intended for cabinet mounting) |
| Cooling Method | Forced air cooling via integrated heat sink fan assembly |
Detailed Product Overview
The Lenze E84AHWMC1534V-V003 fulfills a specialized role in variable-speed motor management and automated positioning systems. Derived from the proven Lenze 8400 drive platform, this unit converts line AC power into a controlled, variable-frequency output to drive motors under fluctuating mechanical loads.
The “1534” power designation indicates a 15 kW nominal output rating within the 400/480V product range. Equipped with dynamic motor control algorithms, the inverter maintains tight speed accuracy and high torque response across low-to-high speed ranges. The unit’s internal logic processes field feedback signals and executes motion profiles directly at the drive level, reducing processing demand on external supervisory PLCs.
In heavy-duty applications—such as wind turbine pitch-control systems (“WindMotion”) and automated material handling—the inverter manages braking power, acceleration ramps, and emergency position holding routines. Built-in diagnostic routines monitor overcurrent, overvoltage, motor thermal overload, and earth-fault conditions to prevent drive damage during operation.
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
| Mains Supply | 3-Phase 400 / 480 VAC (50/60 Hz) | Ensure proper line fusing or circuit breaker sizing upstream. |
| Motor Compatibility | 3-Phase AC Induction & Servo Motors | Match motor current limits and thermal protection parameters during software setup. |
| Cabinet Installation | Standard Electrical Control Cabinet | Mount vertically on a flat metallic surface inside an IP54 or higher cabinet enclosure. |
| Engineering Tool | Lenze Engineer / EASY Starter Software | Used for parameter configuration, diagnostic trace analysis, and firmware updates. |

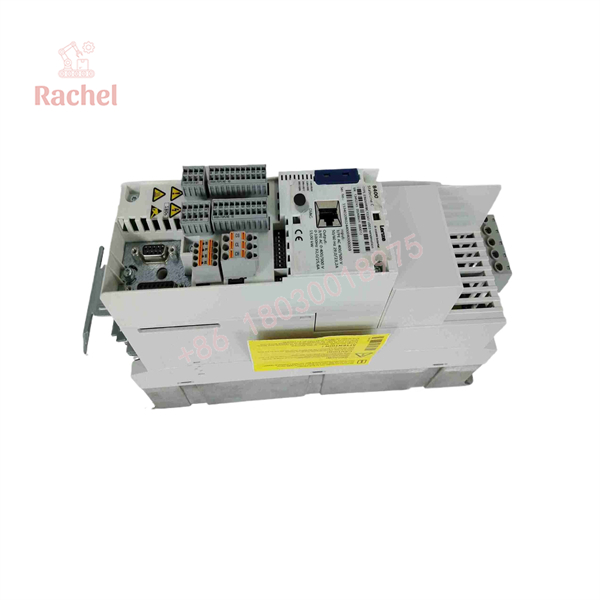

E84AHWMC1534V-V003

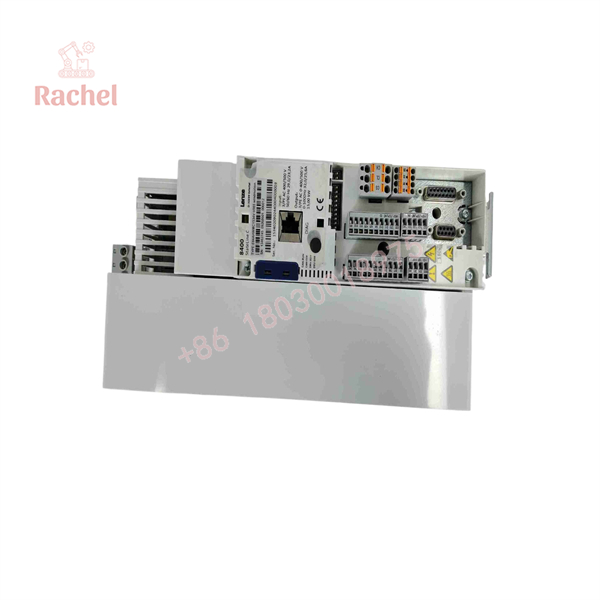

E84AHWMC1534V-V003
Dimensions, Mounting & Connection Notes
- Mounting Orientation: Must be mounted vertically inside a control cabinet to facilitate natural and forced air convection across the rear cooling fins.
- Cooling Clearances: Maintain sufficient vertical clearance above and below the drive chassis to ensure unimpeded airflow through the internal cooling fan assembly.
- Power Wiring: Connect 3-phase mains lines to L1, L2, and L3 terminals; connect motor leads directly to U, V, and W terminals using shielded cable to reduce high-frequency electromagnetic emissions (EMI).
- Grounding Practice: Connect the protective earth (PE) cable directly to the central cabinet grounding bus bar using low-impedance ground straps.
