Description
Core Product Summary
The Lenze E84AVSCE3712SX0 is a 0.37 kW frequency inverter from the Lenze 8400 StateLine C range. It is a vector-controlled inverter for industrial speed-control applications, supplied from a 1/N/PE AC 230/240 V network and configured for installation mounting.
The drive provides a rated output current of 2.4 A and an output-frequency range of 0–599 Hz. Its product designation identifies a standard industrial environment version without integrated drive-based safety technology. CANopen is available on board, while the MCI slot accepts a Lenze communication module for fieldbus integration. Parameters are retained on the removable memory module, and commissioning can be performed locally through the diagnostic interface or through Lenze engineering software.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Lenze |
| Exact model / order number | E84AVSCE3712SX0 |
| Product family | Lenze 8400 Inverter Drives |
| Series / version | 8400 StateLine C |
| Drive type | Vector-controlled frequency inverter |
| Typical motor power | 0.37 kW |
| Mains connection | 1/N/PE AC 230/240 V |
| Mains frequency | 50/60 Hz |
| Rated output current | 2.4 A |
| Output frequency | 0–599 Hz |
| Mounting type | Installation |
| Ambient-condition version | S — standard industrial environment, IE33 according to IEC 60721-3-3 |
| Integrated safety technology | None; product suffix X0 identifies a version without safety technology |
| On-board communication | CANopen |
| Expansion communication | MCI slot for Lenze communication modules |
| Control terminals | Digital inputs/outputs, analog input/output, relay output |
| Parameter storage | Removable memory module |
| Diagnostic interface | X6 diagnostic interface for keypad or PC connection |
| Enclosure protection | IP20 |
Detailed Product Overview
The Lenze E84AVSCE3712SX0 belongs to the 8400 StateLine C family of vector-controlled frequency inverters. It is intended for speed control and simple motion-control tasks in industrial machinery, where a compact 230 V single-phase supply is available. The model code identifies a 0.37 kW device in the 230/240 V voltage class, with standard industrial environmental protection and no integrated safety technology.
For integration, the inverter provides conventional hardwired control interfaces as well as CANopen communication. The control section includes digital inputs and outputs, an analog input and output, and a relay output. The factory pre-assignment uses the analog input for the main speed setpoint, digital inputs for functions such as fixed speed setpoints, DC-injection braking, and direction reversal, and the relay output for an error-pending status signal. These assignments can be reconfigured through the drive parameter set.
The unit has an integrated brake-management function and supports the Lenze “VFC eco” energy-saving function. It is suitable for drive tasks with or without speed feedback. The MCI communication slot allows a Lenze communication module to be fitted for protocols beyond the on-board CANopen interface, including EtherCAT, EtherNet/IP, POWERLINK, PROFIBUS, and PROFINET, subject to the appropriate module and system configuration.
Parameterization is stored in the removable memory module. This allows drive settings to be retained independently of mains power and transferred between compatible 8400 StateLine C units during maintenance or replacement work. Commissioning can be carried out with the Lenze keypad connected to diagnostic interface X6, with the EASY Starter software, or with Lenze Engineer. A USB diagnostic adapter and connecting cable are among the documented commissioning accessories.
The E84AVSCE3712SX0 is an installation-type IP20 device and must be installed in an appropriate electrical enclosure or control cabinet. It is a component for incorporation into a machine or electrical system rather than a standalone consumer appliance. Installation, protective earthing, EMC measures, cable sizing, fusing, and cooling must follow the applicable Lenze mounting and hardware documentation and local electrical regulations. Power terminals can remain live for several minutes after mains disconnection because of capacitor discharge, so isolation and discharge-time precautions are required before working on the power connections.

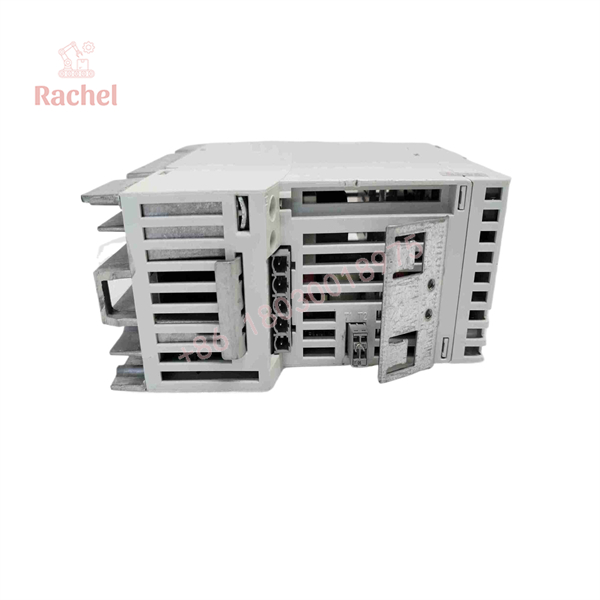

E84AVSCE3712SX0

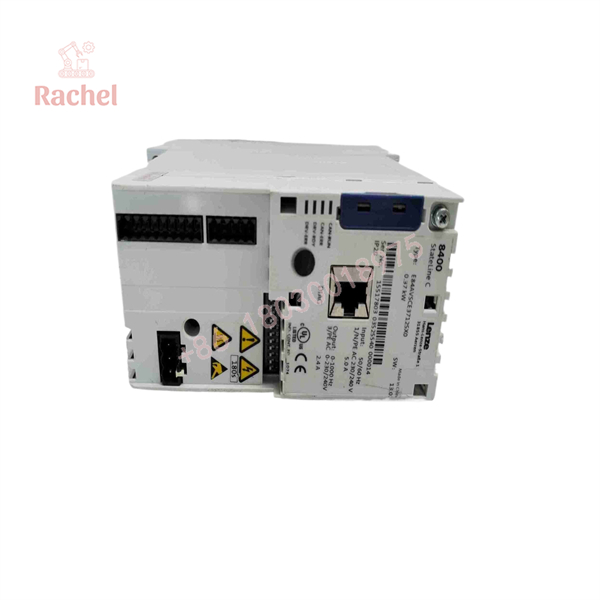

E84AVSCE3712SX0
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
|---|---|---|
| Drive family | Lenze 8400 StateLine C, E84AVSC product range | Confirm the full order number and nameplate data before substitution or parameter transfer. |
| Supply connection | 1/N/PE AC 230/240 V, 50/60 Hz | This model is a single-phase 230 V input inverter. |
| Motor connection | Three-phase motor output via terminals U, V, W | Output current rating is 2.4 A. |
| On-board fieldbus | CANopen | CANopen settings include bus termination, baud rate, and node address. |
| Additional fieldbus | Communication module installed in the MCI slot | EtherCAT, EtherNet/IP, POWERLINK, PROFIBUS, and PROFINET are supported through the StateLine communication-module concept. |
| Control I/O | Digital inputs/outputs, analog input/output, relay output | The analog voltage and current inputs must not be used simultaneously. |
| Parameter storage | Removable memory module in the MMI slot | Parameters are retained against mains failure and can be transferred using the memory module. |
| Commissioning tools | Keypad X400, EASY Starter, or Lenze Engineer | The keypad connects to diagnostic interface X6; PC connection can use a USB diagnostic adapter. |
| Installation environment | Standard industrial environment, IE33 according to IEC 60721-3-3 | The S suffix in the order number identifies this environmental version. |
| Safety functionality | No integrated drive-based safety technology | The X0 suffix identifies the version without safety technology. |
Dimensions, Mounting & Connection Notes
| Item | Verified detail |
|---|---|
| Mounting type | Installation mounting |
| Enclosure protection | IP20 |
| Power terminals | Mains input L1, N, PE; motor output U, V, W; brake-resistor terminals Rb1/Rb2 |
| Motor temperature monitoring | Terminal group X106 |
| Relay output | X101 |
| Control terminals | X3 for analog I/O and 10 V reference; X4 for digital I/O, external 24 V supply, and 24 V output |
| CANopen connection | X1, with S1 settings for termination, baud rate, and node address |
| Diagnostic interface | X6 for keypad or PC connection |
| Memory-module interface | MMI slot for the removable memory module |
| Communication-module interface | MCI slot |
| Installation requirement | Install and cool the controller according to the Lenze mounting instructions; use an EMC-compliant enclosure where required |
| Electrical safety | Fixed installation and protective-earth connection in accordance with EN 61800-5-1 |
Power terminals remain live for several minutes after disconnection from the mains. Connect or disconnect plug-in terminals only in the de-energized condition.
FAQ
What is the Lenze E84AVSCE3712SX0?
It is a Lenze 8400 StateLine C vector-controlled frequency inverter rated 0.37 kW, with a 1/N/PE AC 230/240 V supply connection and a 2.4 A rated output current.
Which Lenze series does E84AVSCE3712SX0 belong to?
It belongs to the Lenze 8400 Inverter Drives family, specifically the 8400 StateLine C version.
What motor power does it support?
The model is rated for a typical motor power of 0.37 kW.
What supply voltage does it require?
It requires a 1/N/PE AC 230/240 V supply at 50/60 Hz.
What communication interfaces are available?
CANopen is available on board. The MCI slot accepts a Lenze communication module for other supported fieldbus systems, including EtherCAT, EtherNet/IP, POWERLINK, PROFIBUS, and PROFINET.
Does this model include integrated safety technology?
No. The X0 suffix identifies a version without drive-based safety technology.
How are parameters stored and transferred?
Drive parameters are stored on the removable memory module in the MMI slot, providing mains-failure-safe parameter retention and a means of transferring settings between compatible units.
Which tools are used for commissioning?
The drive can be commissioned with the Lenze keypad X400, the EASY Starter software, or Lenze Engineer. The keypad and PC diagnostic adapter connect through diagnostic interface X6.
Documented Performance Data
| Metric | Value / range | Operating condition |
|---|---|---|
| Rated output current | 2.4 A | Exact-model rating for the E84AVSCE3712SX0 |
| Output frequency | 0–599 Hz | Exact-model output-frequency range |
| Typical motor power | 0.37 kW | Exact-model rating |
