LENZE EPL10200 Drive PLC Industrial Controller

Description

Core Product Summary

The LENZE EPL10200 is a compact Drive PLC basic unit for industrial automation. It combines programmable logic control with integration into the Lenze drive-control environment.

The unit provides 8 digital inputs, 4 digital outputs, 3 analog inputs, and 1 analog output. The documented basic-unit configuration also includes an integrated CAN system-bus interface, an automation interface for compatible option modules, and a function interface for expansion modules.

Technical Specifications

Specifications are drawn from the Drive PLC documentation and supplier identification data. Confirm the hardware revision and relevant manual before commissioning or replacing an installed unit.

Engineering Highlights

Integrated PLC and Drive Control

The EPL10200 combines programmable control functions with a drive-oriented automation platform. It is intended for applications requiring machine logic and coordinated interaction with compatible Lenze drive equipment.

Built-In Digital and Analog I/O

The basic unit includes digital inputs and outputs for discrete control signals, plus analog channels for supported voltage-based signals. This allows it to handle a range of basic machine-control and drive-interface tasks without relying exclusively on external I/O modules.

CAN System-Bus Integration

The documented system bus supports process-data and parameter-data exchange through CAN-based communication objects. Network configuration includes node addressing, baud-rate selection, process-data handling, and monitoring functions.

Expansion Through Compatible Modules

The platform documentation describes automation-interface (AIF) and function-interface (FIF) modules, including options for additional I/O and communication functions. Supported expansion depends on the module type and the installed configuration.

IEC 61131-3-Oriented Programming Environment

Lenze’s Drive PLC Developer Studio documentation describes the use of system blocks, variables, and programmable control elements for application development. The exact software version must match the controller’s installed firmware and hardware generation.

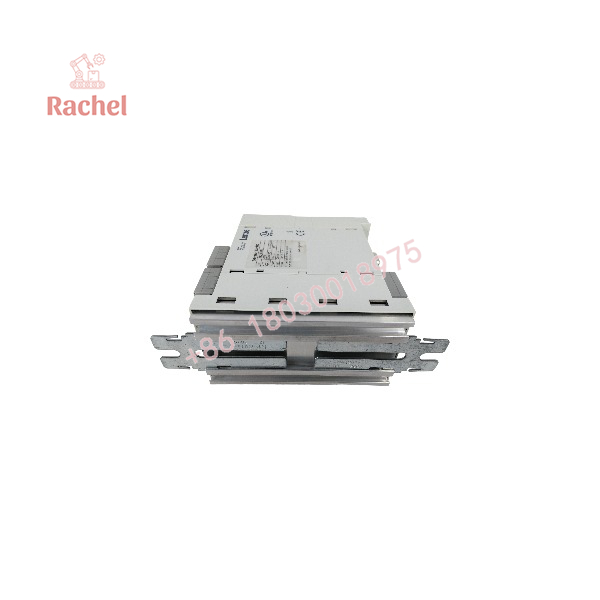

EPL10200

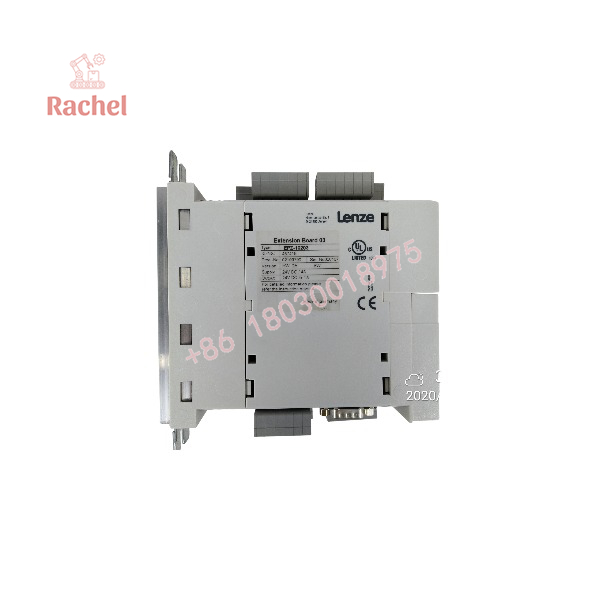

EPL10200

Compatibility and Integration

Before integrating or replacing a LENZE EPL10200, verify the following:

• Drive compatibility: Confirm the connected drive family and the intended control architecture.
• Programming software: Match the Drive PLC Developer Studio version to the installed firmware and hardware revision.
• System bus: Check CAN baud rate, node address, process-data configuration, and network monitoring settings.
• I/O wiring: Verify terminal assignments, signal polarity, analog ranges, and output load limits.
• Expansion modules: Confirm that any installed AIF or FIF module is supported by the specific unit and software version.
• Application program: Back up the existing control program and parameters before replacing the controller.
• Commissioning: Test I/O, communication, interlocks, and machine behavior under the site’s approved startup procedure.

Do not assume that a replacement controller is ready for operation simply because the part number matches. Existing program data, parameters, and hardware configuration may need to be restored or verified.

Dimensions and Mounting

The exact physical dimensions and mounting requirements should be confirmed against the applicable EPL10200 installation documentation and the installed unit.

For a retrofit, inspect:

• Enclosure and mounting arrangement
• Terminal and connector positions
• Space required for any installed expansion modules
• Wiring and service access
• Cooling and ventilation clearances
• Grounding and electrical separation requirements

The EPL10200 is a controller within a drive-system platform; it should not be confused with a standalone AC motor inverter based solely on some reseller category labels.

Detailed Product Overview

LENZE EPL10200 Global Drive PLC Basic Unit

The LENZE EPL10200 is a compact programmable controller belonging to the Global Drive product family. Unlike a conventional general-purpose PLC used only for centralized machine logic, the Drive PLC is intended for control tasks associated with compatible Lenze drive systems.

The basic unit integrates programmable logic functions with onboard I/O and a CAN-based system bus. Its documented I/O configuration consists of eight digital inputs, four digital outputs, three analog inputs, and one analog output. The digital channels support 24 V DC signals, while the analog channels use ±10 V ranges with 10-bit-plus-sign resolution.

The integrated system bus enables process and parameter data to be exchanged with compatible system participants. Configuration involves communication parameters such as node addressing and baud rate, together with the process-data objects used by the application. Additional functions can be provided through supported automation-interface and function-interface modules.

Application development is associated with Lenze Drive PLC Developer Studio. The documented programming workflow uses system blocks and configurable variables to expose hardware and system functions to the application program. Correct software and firmware matching is important because manuals and features can differ between hardware and software revisions.

For maintenance teams, the EPL10200 is best treated as a programmable controller rather than a plug-and-play power converter. When replacing a unit, confirm the complete part number, hardware revision, firmware, connected drive model, I/O wiring, and the availability of the original application program. Preserve existing configuration data before removing the original controller whenever practical.

The EPL10200 is appropriate for installations designed around the Lenze Drive PLC architecture. Replacement suitability should be determined from the installed system documentation rather than from a general description or a reseller’s broad product category.

Applications and System Role

The LENZE EPL10200 can serve as the programmable control element in compatible industrial drive systems and machine-control applications.

Typical application contexts include:

• Machine automation: Logic sequencing, signal processing, and coordination of machine functions.
• Drive coordination: Control functions associated with compatible Lenze drive equipment.
• Material handling: Automation logic for equipment such as conveyors and handling machinery, where supported by the overall system design.
• Manufacturing equipment: Integration of digital and analog signals into a drive-centered control architecture.
• Industrial retrofits: Replacement of an existing Drive PLC where hardware, software, and application compatibility have been confirmed.

The suitability of the EPL10200 for any particular machine depends on the program, connected drive equipment, available I/O, and required communication interfaces.

Frequently Asked Questions

What is the LENZE EPL10200?

The LENZE EPL10200 is a compact Global Drive PLC basic unit used for programmable industrial control in compatible drive-system applications.

What is the supply voltage?

The product is identified as a 24 V DC Drive PLC unit. Verify the electrical connections and supply requirements against the exact hardware documentation before energizing it.

How many I/O channels does the EPL10200 have?

The documented basic unit provides eight digital inputs, four digital outputs, three analog inputs, and one analog output.

What analog signals does it support?

The documented analog inputs and output use a ±10 V range. The analog channels have 10-bit-plus-sign resolution; the analog output is rated for a maximum load current of 2 mA.

Does the EPL10200 support CAN communication?

Yes. Lenze documentation describes an integrated CAN-based system bus with process-data, parameter-data, and monitoring functions. The exact network configuration must be checked against the application.

Which software is used to program the EPL10200?

The associated development environment is Lenze Drive PLC Developer Studio (DDS). Select a version compatible with the controller’s hardware and installed firmware.

Can additional I/O be added?

The platform documentation describes supported expansion options through AIF and FIF interfaces. Confirm module compatibility and available interface slots before ordering expansion hardware.

Is the EPL10200 an AC drive or a PLC?

It is a Drive PLC basic unit. It provides programmable control functions for drive-related automation; it should not automatically be specified as a standalone AC inverter.

What should be checked before ordering a replacement?

Confirm the complete model number, hardware revision, firmware, existing application program, drive-system compatibility, I/O wiring, and installed expansion modules. These checks are important for avoiding an incompatible replacement.
