Core Product Summary
The Leuze DDLS 200/200.2-60 is an optical data transmission transceiver designed for non-contact, point-to-point wireless communication in automated industrial environments. Operating over an infrared light beam, the module enables transparent data transfer without physical cable wear or trailing cable assemblies. It is primarily deployed on automated guided vehicles (AGVs), rail-guided gantry cranes, stacker cranes, and transfer cars where mechanical cable carriers are impractical or prone to fatigue.
This model supports a working range from 200 mm up to 200,000 mm (200 m) and operates on transmission frequency F2. It provides real-time data transmission at speeds up to 2 Mbit/s for optical signals while interfacing with standard industrial Ethernet protocols (TCP/IP, UDP). Featuring integrated optical alignment displays, an IP65 metal enclosure, and immunity to ambient light interference, the unit maintains stable point-to-point communication across moving machinery axes.
Key Technical Specifications
| Parameter | Specification |
| Product Type | Optical Data Transmission Transceiver |
| Series | DDLS 200 |
| Light Source | LED, Infrared |
| Working Operating Range | 200 mm to 200,000 mm (0.2 m to 200 m) |
| Transmission Frequency | F2 |
| Optical Angle / Beam Spread | 1° |
| Optical Transmission Speed | Up to 2 Mbit/s (Fx) |
| Interface Protocol | Ethernet (TCP/IP, UDP) |
| Supply Voltage | 18 V DC to 30 V DC (PELV / Class 2) |
| Switching Inputs / Outputs | 1 Digital Switching Input, 1 Digital Switching Output (Warning/Status) |
| Enclosure Material & Protection | Metal housing, IP65 degree of protection |
| Dimensions (W × H × L) | 89.25 mm × 196.5 mm × 111.8 mm |
| Net Weight | 1,245 g |
| Operating Ambient Temperature | -5 °C to +50 °C |
| Approvals / Certifications | cULus, CE, EN 61000-6-2, EN 61000-6-4 |
Detailed Product Overview
The Leuze DDLS 200/200.2-60 establishes a contact-free, optical communication link across moving system components where hardwired connections suffer from mechanical stress or flexural fatigue. In automated material handling setups, stacker cranes and transfer carriages move continuously along fixed tracks; replacing festoon cables or drag chains with optical data transmission eliminates mechanical wear points and increases communication reliability.
The DDLS 200 series uses modulated infrared light to create an interference-free transmission path that remains immune to ambient lighting and reflective background surfaces. Data handling is protocol-transparent, allowing Ethernet frame transfer (TCP/IP, UDP) between the moving device and stationary control cabinets without altering the network payload.
The transceiver includes built-in signal diagnostics displayed directly on the unit via an integrated LED bargraph. This visual feedback simplifies mechanical alignment during commissioning and provides continuous signal margin monitoring. An integrated digital switching output can trigger a pre-failure warning signal if optical path attenuation occurs due to dirt buildup on the optics or structural misalignment, allowing maintenance prior to communication interruption.

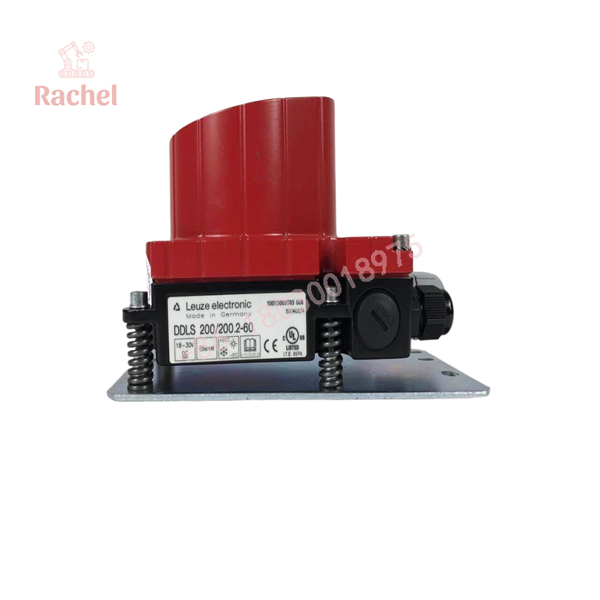

DDLS 200/200.2-60

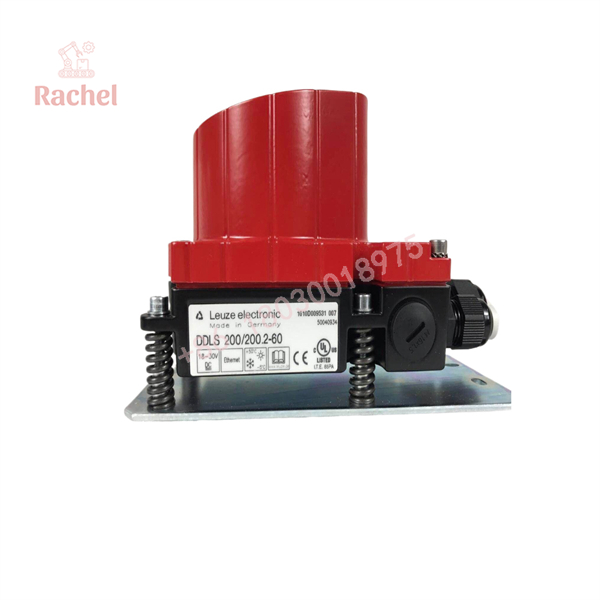

DDLS 200/200.2-60
Dimensions, Mounting & Connection Notes
- Physical Dimensions: 89.25 mm (W) × 196.5 mm (H) × 111.8 mm (L).
- Housing & Protection: Die-cast metal housing with IP65 ingress protection.
- Mounting Method: Secured using 4 mounting holes on an adjustable mounting plate to align opposing optical axes.
- Line-of-Sight Alignment: Mounting structures must offer a rigid, flat, plane-parallel orientation with an unobstructed line-of-sight path between opposing transceiver units.
- Status & Signal Display: LED bargraph display indicates alignment accuracy and optical signal strength.
- Environmental Operating Limits: Rated for operation from -5 °C to +50 °C. Storage temperature rated from -30 °C to +70 °C.
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
| Opposing Link Partner | Requires a paired DDLS 200 device operating on complementary Frequency F1 | Optical data transceivers must be installed in opposing pairs with complementary transmission frequencies (F1/F2) along a clear line of sight. |
| Network Interface | Ethernet TCP/IP, UDP protocols | Communicates transparently over standard industrial network traffic. |
| Terminal / Connection Options | Screw terminals via M25 cable gland or M12 connector variant | Terminal connections or M12 connectors handle power supply and network lines depending on specific order variant. |
| Power Supply | 18–30 V DC (PELV / NEC Class 2) | System requires stabilized low-voltage DC power supply. |
FAQ
What is the function of the Leuze DDLS 200/200.2-60?
The Leuze DDLS 200/200.2-60 is an optical data transceiver that transfers network communication signals via modulated infrared light across moving equipment without mechanical cables.
What maximum distance can the DDLS 200/200.2-60 cover?
This model supports an operational working range from 0.2 meters (200 mm) up to 200 meters (200,000 mm).
What frequency does the DDLS 200/200.2-60 use?
The DDLS 200/200.2-60 operates on transmission frequency F2. To establish a bidirectional communication link, it must be paired with a corresponding DDLS 200 unit operating on frequency F1.
What communication interfaces and protocols are supported?
The unit supports Ethernet communication, operating transparently with TCP/IP and UDP protocols.
How do engineers check signal quality and alignment during installation?
The transceiver includes an integrated LED bargraph display on the unit that shows live optical signal strength, allowing precise mechanical alignment during installation.
What warning feature is available if optical path quality degrades?
The unit includes a digital switching warning output that activates if signal reception drops near minimum threshold limits, signaling the need for cleaning or alignment before data transmission drops.
