MAN B&W 3171197-4 Base Module Engine Control Board

Description

Product Introduction

The MAN B&W 3171197-4 is a critical Base Module control PCB deployed across MAN B&W Holeby marine auxiliary diesel generator sets (such as L16/24, L21/31, L23/30, and L27/38 engines). Positioned inside the engine-mounted local control panel (LCP), this unit serves as the physical hardware interface connecting field-mounted sensors, solenoid valves, speed pick-ups, and actuator governors to the vessel’s central Alarm and Monitoring System (AMS).

Engineered specifically to withstand intense engine vibration, extreme heat, and harsh maritime environments, the 3171197-4 manages vital engine functions including auto-start sequencing, speed sensing, lube oil pressure monitoring, cooling water temperature safeguards, and emergency overspeed trip logic.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: You are the Chief Engineer on a 14,000 TEU container vessel transiting the Malacca Strait. During a generator load swap, Auxiliary Engine No. 2 suddenly fails to start, displaying an elusive “Base Module Comm Fault” on the local panel. The vessel’s Power Management System (PMS) locks out the engine, leaving you reliant on a single auxiliary generator during heavy traffic maneuvering.

In our maritime service experience, keeping a fully tested, pre-configured MAN B&W 3171197-4 Base Module in your critical engine spares locker turns a high-stress emergency into a straightforward 30-minute changeout. Swapping out the faulted board restores local governor control, safety trips, and generator synchronizing capabilities instantly—ensuring your vessel stays compliant with class requirements and safe at sea.

• Container Vessels & Tankers – Primary local engine control and safety trip processor for 24/7 auxiliary power generation.
• Bulk Carriers – Manages start/stop logic and safety shutdowns for Holeby diesel gen-sets during heavy cargo crane operations.
• Offshore Support Vessels (OSV/DP2) – Delivers real-time speed sensing and load signal processing required for dynamic positioning power management.

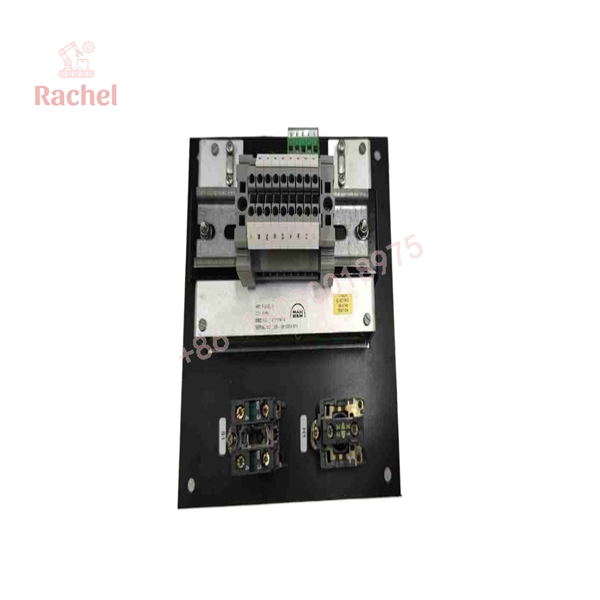

3171197-4

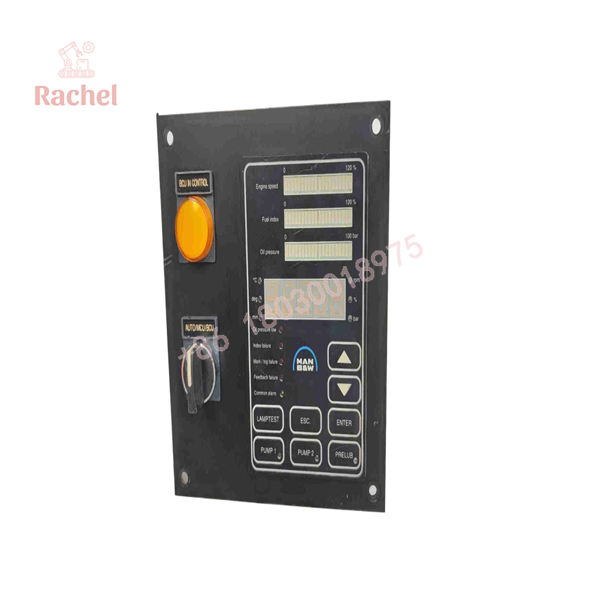

3171197-4

Transparency SOP: Quality Assurance & Testing

We understand that marine electronics must perform reliably the moment they are installed. Here is our rigorous verification process for every 3171197-4 board:

1. Inbound Visual & Structural Inspection: Inspect the PCB for heat stress around power resistors, verify solder joint integrity, check screw terminal block conditions, and confirm intact conformal coating.
2. 24V DC Power Rail Bench Test: Apply 24V DC power to verify onboard voltage regulators, power-on diagnostic LEDs, and baseline current draw.
3. Signal Input & Relay Output Emulation: Simulate pickup pulse signals (RPM) and analog sensor inputs (PT100/4-20mA) to confirm A/D converter accuracy and test all relay output contact closures under load.
4. Serial / CAN Bus Communication Verification: Connect the board to a diagnostic test rig to confirm stable data packet transmission across communication ports.
5. Vibration-Resistant Clean & Anti-Static Packaging: Treat terminal pins with anti-corrosion contact cleaner and seal the module in heavy-duty ESD shielding with marine-grade desiccant.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Match DIP Switches & Jumper Settings Before Power-Up! The 3171197-4 Base Module utilizes onboard DIP switches and configuration jumpers to define engine model parameters (e.g., flywheel tooth count for RPM pickup, shutdown delays). Always match the switch positions from your old board exactly before applying 24V DC power!
• ❗ Never Disconnect Terminals Under Live Battery Power! Disconnecting live 24V DC engine battery feeds while the board is active can induce inductive voltage spikes, damaging the board’s onboard optocouplers and communication transceivers. Always isolate the 24V supply breaker first.
• ⚠️ Check Pickup Sensor Air Gaps: If the replacement board fails to register engine RPM during cranking, don’t assume the module is faulty. Inspect the magnetic speed pickup sensor gap on the engine flywheel ring gear first—metallic dust accumulation on the sensor tip is the #1 cause of false RPM signal losses.
• ❗ Verify Auxiliary Battery Voltage Stability: Marine 24V battery systems often hover around 27.6V during float charge. If charger voltage exceeds 30V DC due to a faulty battery charger, it will over-stress the voltage regulator diodes on the 3171197-4 board. Trust me.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the MAN B&W 3171197-4 board plug-and-play?

A: Hardware-wise, yes. However, you must verify that onboard DIP switches, configuration jumpers, and firmware revisions match your specific engine variant (e.g., L21/31 vs. L28/32H) before putting the engine in “Auto” mode.

Q: Can this module be repaired if my original board suffered a short circuit?

A: In many cases, yes. We offer repair and reconditioning services for MAN B&W control modules, including component-level PCB repair, relay replacement, and post-repair bench testing.

Q: Does this module carry Marine Class approvals?

A: Yes. The 3171197 series is designed and certified according to major IACS class society requirements (including DNV, ABS, LR, and GL) for installation inside engine room local control panels.

Q: What warranty coverage is included with this spare module?

A: We provide a full 12-month operational replacement warranty on all bench-tested surplus and reconditioned MAN B&W electronics, backed by immediate worldwide dispatch.

Q: How fast can this module be shipped to a vessel in port?

A: We offer expedited courier and air freight dispatch directly to major global ports (e.g., Singapore, Rotterdam, Houston, Dubai) to meet tight vessel port call schedules.
