MAN MCU-0230-F Master Control Unit PCB

Description

Product Introduction & Engineering Value

A failed control board on a marine propulsion system is not a component you casually substitute. The MAN B&W MCU-0230-F is identified as a Master Control Unit PCB, with 1142352-0 and 3157167-5 appearing as key cross-reference numbers. Available records also identify MCU Ver. 7 and document reference 14.0230.0.

The important procurement issue is revision matching. Publicly listed MCU-0230-F units show different revision and COI markings, including Rev. 1.2 and Rev. 1.4. That does not automatically mean they are interchangeable. Match the complete board identification against the installed unit before ordering.

Technical Specifications

Important: The revision and COI information is unit-specific. For example, one documented listing identifies MCU-0230-F / 1142352-0 as Rev. 1.2 / COI 579-A, while another lists Rev. 1.4 / COI 632-A. Treat those markings as identification data, not as a universal specification for every MCU-0230-F assembly.

Field Application & the “Trench” Experience

A plausible replacement scenario looks like this:

A vessel maintenance team has an intermittent fault in a control cabinet associated with its MAN B&W propulsion control system. The fault follows the MCU board after cabinet-level checks fail to identify a wiring or power problem. The maintenance engineer removes the installed board and photographs every identification label before touching the connectors.

That step matters.

The replacement is not selected simply because the front label says MCU-0230-F. The engineer compares 1142352-0, 3157167-5, MCU version, document revision, COI marking, connector arrangement, and board revision. Only after those identifiers are checked is the replacement candidate approved.

This is the right way to approach a legacy control-board replacement. Part-number similarity is not enough.

Specific application scenarios

• Marine propulsion control cabinet replacement — replacement of a failed MCU board during scheduled vessel maintenance.
• MAN B&W engine control system service — maintaining a tested spare for an installed assembly.
• Emergency marine automation repair — sourcing an identified 1142352-0 board when OEM lead time or original production availability becomes a concern.

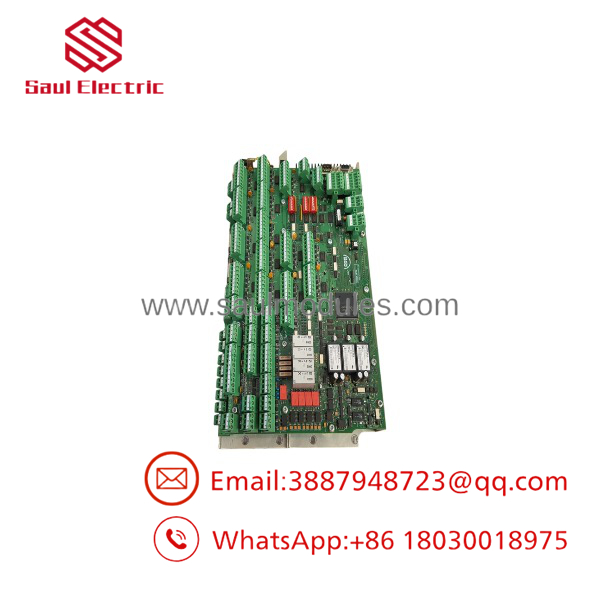

MCU-0230-F

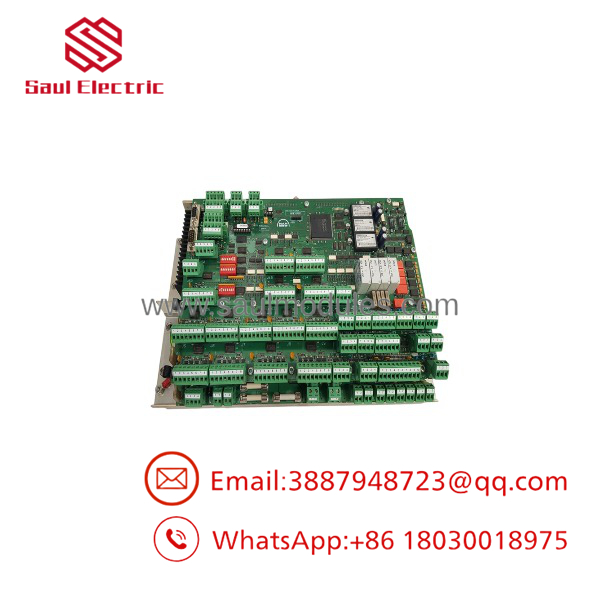

MCU-0230-F

Transparency SOP: QA & Testing

For New Surplus or Refurbished stock, a credible inspection process should focus on identification first and electrical condition second.

1. Identity check — confirm , 1142352-0, 3157167-5, version and visible revision markings against the purchase specification.
2. Visual inspection — inspect the PCB for corrosion, cracked components, damaged connectors, lifted pads, contamination, previous repair work, and heat damage.
3. Component inspection — examine capacitors, connectors, IC packages, solder joints, and other accessible components for signs of deterioration.
4. Electrical testing — perform applicable bench-level continuity, isolation, power-rail, and functional checks using suitable test equipment and an appropriate test fixture.
5. Documentation — record serial/identification markings, revision information, test results, and condition before shipment.

A critical distinction: a visual inspection is not the same as a functional test. If a seller cannot state what was actually tested, procurement should not assume that a used or surplus board has been functionally verified.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Matching only “.”
Do not stop there. Public listings show the same designation with different COI and revision markings. The complete identification should be compared before installation.

⚠️ Trap #2 — Assuming Rev. 1.2 and Rev. 1.4 are interchangeable.
The available records demonstrate that both revisions exist, but they do not establish interchangeability. Obtain confirmation from the applicable MAN documentation or compare the installed board documentation before substituting one revision for another.

⚠️ Trap #3 — Ignoring ESD and connector handling.
This is a PCB-level control assembly. Use appropriate ESD controls, avoid unnecessary handling of exposed circuitry, and document connector positions before removal. A photograph takes seconds; troubleshooting a misconnected replacement can take considerably longer.

PRO TIP: Photograph the entire installed board before removal. Capture the part-number label, revision/COI marking, connector positions, and any configuration labels. For legacy marine control equipment, those photographs can be more useful than a generic catalog description.

Dynamic FAQ

Is MAN the same as 1142352-0?

Available product records identify as the model/designation and 1142352-0 as the associated PCB part number. 3157167-5 is also repeatedly identified as the MBD number.

What is used for?

It is identified as a Master Control Unit PCB associated with MAN B&W control equipment. The available records do not provide enough authoritative information to specify the complete system architecture or every supported engine configuration, so the installed system documentation should be used for final compatibility confirmation.

Does every have the same revision?

No. Publicly documented examples show different revision and COI markings. Examples include Rev. 1.2 / COI 579-A and Rev. 1.4 / COI 632-A. Therefore, the board’s physical identification should be checked before purchase.

What should I provide when requesting a replacement?

Provide the model, 1142352-0 part number, 3157167-5 MBD number, MCU version, revision, COI marking, and clear photographs of the installed board. This substantially reduces the risk of receiving a visually similar but unsuitable revision.

How can I verify New Surplus authenticity?

Request photographs of the actual unit showing the original identification labels and PCB markings. The markings should correspond with the quoted identification. Do not treat a generic stock photograph or a seller’s model title as sufficient proof of identity.

What warranty should I expect?

Warranty terms depend on the supplier and condition category. Before purchasing, confirm the warranty period, whether the board is actually tested, the applicable return window, and what documentation accompanies the unit. New Surplus should also be distinguished clearly from used or refurbished stock.

Procurement note: For this particular MAN board, the safest purchasing practice is part-number + revision + COI + physical-board verification, rather than model-number-only matching. The available market records support the existence of multiple identification variants under the designation.
