Description
Product Introduction & Engineering Value
When a marine propulsion control system experiences widespread communication faults, the Master Control Unit is one of the first assemblies experienced engineers evaluate. As the central processing element of the Electronic Control System, it coordinates communication between distributed engine control modules and executes essential operating logic.

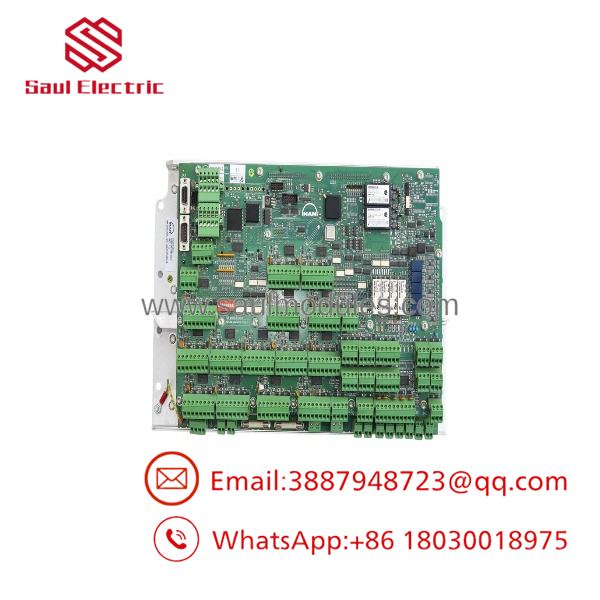

The MAN 1881369-9 Master Control Unit (MCU) is installed in electronically controlled MAN B&W marine diesel engines. Designed for continuous operation in demanding marine environments, it supports engine management, diagnostics, and coordination of subsystem controllers while maintaining deterministic control during vessel operation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | MAN B&W / MAN Energy Solutions |
| Model | 1881369-9 |
| Product Name | Master Control Unit (MCU) |
| Product Type | Processor / Control PCB |
| Hardware Revision | Rev. 1.3 (commonly available) |
| Associated MDT Number | 1881610-7 |
| PCB Number | 1142038-2.3 |
| System Platform | MAN Electronic Control System (ECS) |
| Installation | Marine Engine Control Cabinet |
| Primary Function | Engine Control Processing & Communication Management |
| Cooling Method | Passive Convection |
| Typical Service Options | New Surplus, Refurbished, Exchange Repair |
Field Application & The “Trench” Experience
During sea trials following an overhaul of a two-stroke propulsion engine, engineers observed intermittent synchronization faults between the cylinder control units and the engine automation cabinet. Power quality, CAN network wiring, and field sensors all passed inspection, yet communication timeouts continued under varying engine loads.
The investigation ultimately identified an unstable 1881369-9 Master Control Unit. After replacing the controller with a verified module of the correct hardware revision and restoring the engine configuration, communication stabilized immediately. Functional testing confirmed normal synchronization across all cylinder controllers before the vessel returned to commercial service.
Typical applications include:
- MAN B&W electronically controlled two-stroke propulsion engines
- Main engine Electronic Control Systems (ECS)
- Marine propulsion automation and vessel power management systems
1881369-9
Transparency SOP: QA & Testing
Every 1881369-9 controller is inspected and documented before shipment.
- Verify the complete MAN part number, PCB number, and hardware revision.
- Inspect the PCB for corrosion, cracked solder joints, vibration damage, and previous repair work.
- Confirm processor initialization and onboard diagnostics.
- Verify communication interfaces using compatible ECS hardware whenever available.
- Test connector integrity and indicator functions.
- Package the module using anti-static protection and reinforced industrial packaging.
For New Surplus inventory, original identification labels and storage condition are documented whenever available. Refurbished modules undergo functional verification prior to shipment.
The Veteran’s Tech Trap Guide
⚠️ Match More Than the Base Part Number
The 1881369-9 MCU is commonly associated with MDT No. 1881610-7 and Revision 1.3. Verify all identification numbers printed on the module label before installation. Different hardware revisions may not be interchangeable.
⚠️ Don’t Blame the MCU Too Quickly
Intermittent communication alarms can originate from unstable 24 VDC control power, damaged backplane connectors, or network faults. Always verify the supporting infrastructure before replacing the controller.
PRO TIP:
Before removing the original MCU, save diagnostic logs and controller parameters. Configuration backups significantly reduce commissioning time and help avoid synchronization issues after installation.
Dynamic FAQ
Q1. What is the primary function of the MAN 1881369-9?
The 1881369-9 is the Master Control Unit (MCU) processor board used within MAN B&W Electronic Control Systems. It executes engine control logic and coordinates communication between distributed control modules.
Q2. What is the relationship between 1881369-9 and 1881610-7?
The 1881369-9 designation identifies the MCU PCB assembly, while 1881610-7 is commonly referenced as the associated Master Control Unit assembly number in supplier documentation.
Q3. Is Rev. 1.3 important when ordering?
Yes. Always verify the hardware revision shown on the module label. Installing an incorrect revision can result in compatibility issues with the engine control software or connected subsystems.
Q4. Can this module be supplied as New Surplus?
Yes. Depending on inventory availability, suppliers commonly offer New Surplus, professionally refurbished, and exchange-repaired 1881369-9 Master Control Units.
Q5. What should be checked before replacing the MCU?
Verify the 24 VDC power supply, communication network integrity, cabinet backplane connectors, hardware revision, and engine diagnostic history. Many apparent MCU failures are caused by external electrical or communication problems.
Q6. Is warranty coverage available?
Most industrial and marine automation suppliers provide warranty coverage for New Surplus and Refurbished 1881369-9 modules. Warranty duration varies according to the module condition and supplier’s service policy.
