Product Introduction & Engineering Value
A machine vision system can fail production inspection even when the camera and lighting hardware appear normal. In many legacy installations, the actual failure point is the image acquisition interface that transfers camera data into the inspection computer. The Matrox 979-0101 is an industrial imaging board designed for machine vision applications requiring reliable camera communication and image processing integration.
For factories maintaining older automated inspection systems, this type of Matrox imaging hardware remains valuable because replacing the entire vision platform can require software redevelopment, camera changes, and production validation. Exact compatibility depends on the installed Matrox software environment, camera interface, operating system, and host computer configuration.
Technical Specifications
Core Technical Parameters
| Parameter | Specification |
|---|---|
| Manufacturer | Matrox Imaging |
| Part Number | 979-0101 |
| Product Category | Industrial machine vision interface board |
| Board Function | Image acquisition and camera communication |
| Application Type | Automated inspection and vision processing systems |
| Host Interface | Legacy computer expansion bus architecture (system dependent) |
| Camera Support | Dependent on board configuration and installed drivers |
| Software Compatibility | Matrox Imaging software environment dependent |
| Installation Type | Industrial PC expansion slot installation |
| Operating Environment | Factory automation and inspection systems |
| Replacement Role | Legacy vision system spare component |
| Handling Requirement | ESD-safe handling recommended |
Field Application & The “Trench” Experience
A packaging manufacturer operating an older automated inspection station began experiencing random inspection failures. The cameras were producing images, lighting levels were correct, and the vision software was running, but image transfer interruptions caused false rejects on the production line.
The maintenance team isolated the problem to the image acquisition hardware inside the industrial PC. Instead of replacing the complete inspection station, engineers installed a verified Matrox 979-0101 replacement board, restored driver settings, and validated image capture performance using production samples.
The inspection system returned to normal operation without changing the validated inspection algorithms.
Typical application scenarios include:
- High-Speed Packaging Inspection
- Capturing product images for defect detection and quality verification.
- Electronic Component Inspection
- Supporting automated visual checks for assembly accuracy and component presence.
- Legacy Manufacturing Vision Stations
- Maintaining older inspection equipment where software and camera systems are still operational.

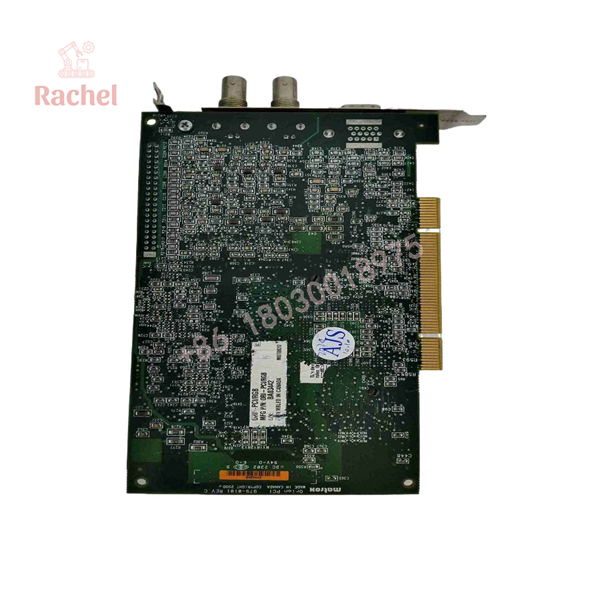

979-0101

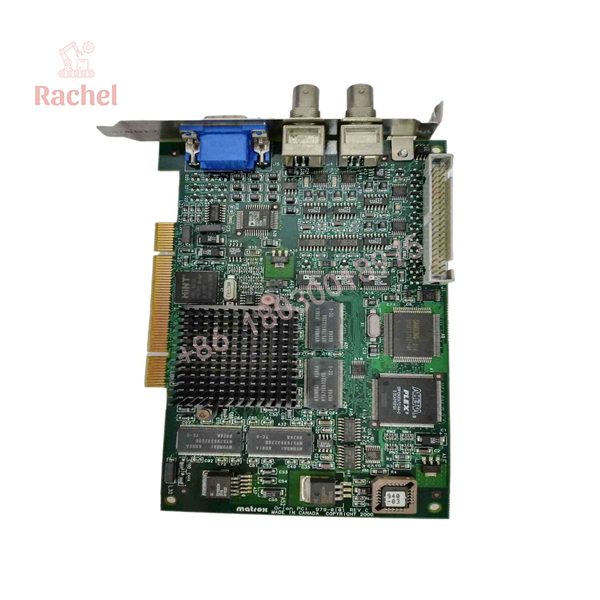

979-0101
Transparency SOP: QA & Testing
A Matrox 979-0101 replacement board should be evaluated through a controlled process:
Inspection and Validation Checklist
✓ Verify Matrox label, model number, and board identification.
✓ Inspect PCB condition, connectors, and expansion interface contacts.
✓ Check for corrosion, damaged components, or storage-related issues.
✓ Verify board recognition in a compatible host system.
✓ Install required drivers and imaging software.
✓ Test camera communication and image acquisition.
✓ Record functional test results before shipment.
The Veteran’s Tech Trap Guide
⚠️ Driver Compatibility Is Critical
A replacement Matrox board may physically install correctly but fail operation if the imaging software version or driver package does not match.
⚠️ Do Not Ignore Camera Configuration
Machine vision systems often depend on saved camera timing, acquisition parameters, and communication settings. Hardware replacement may require restoring these values.
PRO TIP: Save the original vision system image, driver versions, and configuration files before removing the old board.
⚠️ Check the Host PC Environment
Legacy Matrox boards may depend on specific operating systems, PCI slot characteristics, or industrial computer hardware. Confirm the replacement environment before installation.
Dynamic FAQ
Q1. What is the Matrox 979-0101 used for?
The Matrox 979-0101 is an industrial vision interface board used for image acquisition and camera communication in machine vision systems.
Q2. Is the 979-0101 a PLC module?
No. It is a machine vision component used in industrial PCs and inspection systems rather than a PLC control module.
Q3. Can the Matrox 979-0101 replace any Matrox imaging board?
No. Compatibility depends on the exact Matrox model, software drivers, camera interface, and host computer configuration.
Q4. What should buyers verify before purchasing New Surplus inventory?
Confirm:
- Board model marking
- PCB revision
- Connector condition
- Packaging/storage condition
- Available functional test records
Q5. Can refurbished Matrox 979-0101 boards be used in production inspection systems?
Yes, when they have passed visual inspection, electrical checks, and image acquisition testing with compatible equipment.
Q6. What warranty is normally provided?
Warranty depends on supplier classification. Buyers should confirm whether the unit is New Surplus, Refurbished, or Used and review return terms before purchase.
