3. Product Introduction & Engineering Value
I have pulled more than one of these out of a running pulp-mill rack when a valve positioner started drifting. The Metso AO4H (D201190) is the four-channel HART analog output card that still shows up in Metso DNA systems and related automation platforms.
It drives control valves, positioners, and variable-speed references with stable current loops. HART pass-through lets you interrogate the smart transmitter without a separate modem. Hot-swap capability and solid isolation make it a practical spare for plants that cannot afford a full I/O rebuild.
4. Technical Specifications
Channels: 4 independent analog outputs
Output Signal: 0/4–20 mA (standard for actuators)
HART Support: Yes – transmits HART frames over the fieldbus
Isolation: Electrical isolation between output/bus and output/power
Detection: Short-circuit and open-circuit (break) detection
Grounding: Common ground configuration
Mounting: DIN-rail or control-cabinet / rack installation
Compatibility: Metso Automation / DNA DCS systems
Environment: Industrial process temperatures and humidity typical of pulp, paper, power, and chemical plants
Part Number Cross-Reference: D201190 (various revision letters such as Ver. F / Ver. G)
5. Field Application & The “Trench” Experience
A paper machine wet-end in the Pacific Northwest lost position control on three stock valves after an older output card failed. The process engineer grabbed a surplus AO4H (D201190), slid it into the I/O chassis, and re-mapped the four channels in the DNA engineering station. Within forty minutes the valves were tracking setpoints again and HART diagnostics confirmed the positioners were healthy. No system reboot, no extended downtime.
Typical niche uses:
- Bleach-plant chemical dosing valves on a Metso DNA node
- Boiler drum level and feedwater valve control in power generation
- Thickener underflow valve positioning in minerals processing

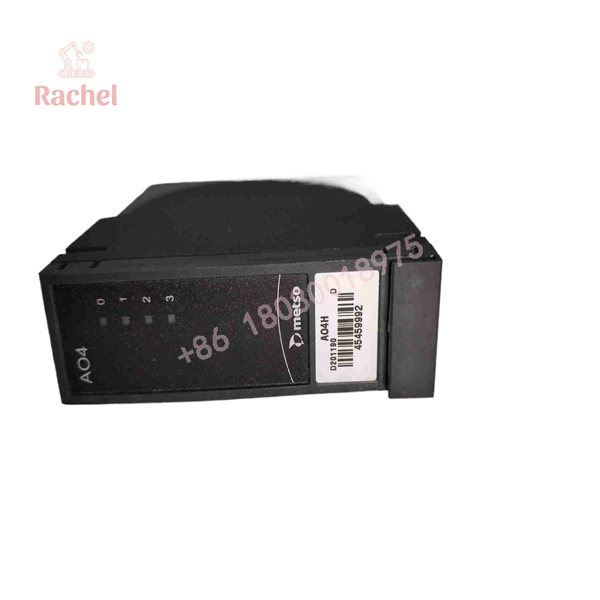

AO4H

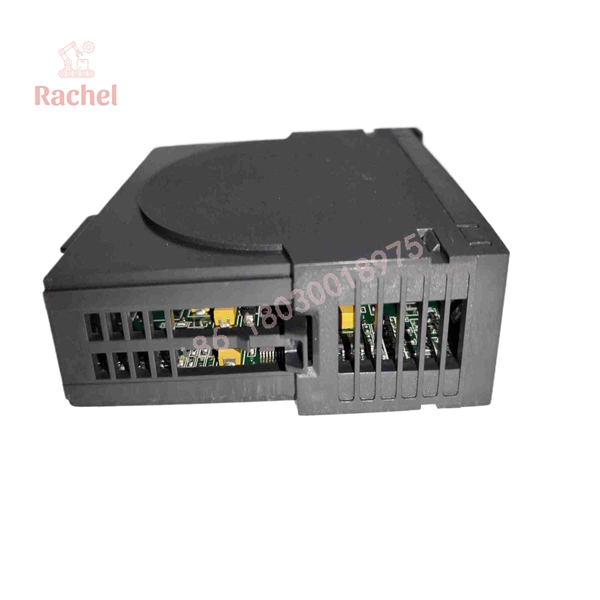

AO4H
6. Transparency SOP: QA & Testing
Every unit we release as new-surplus or refurbished is powered on a Metso-compatible backplane simulator. Each of the four channels is driven through the full 4–20 mA range while load resistance and loop current are measured. Short and open detection is verified, HART communication is confirmed with a communicator, and isolation is checked channel-to-bus. Final firmware and configuration are left at factory defaults so the card is ready for immediate insertion into a live DNA system.
7. The Veteran’s Tech Trap Guide
⚠️ Revision letters matter. Ver. F and Ver. G cards are common in surplus, but confirm the exact revision matches the chassis and software version already running. A mismatch can produce configuration errors that look like hardware failure.
PRO TIP: Always verify the common-ground arrangement before landing field wiring. Some older installations expect floating outputs; forcing a ground reference can create noise or ground loops that only appear under load.
⚠️ HART traffic adds loading. If the channel is already near the maximum loop resistance, enabling continuous HART polling can push the total burden over the limit and cause the current to sag. Check the actual load before turning HART on full-time.
8. Dynamic FAQ
Q: Is the AO4H the same as the ABB AO930N (AO4H)?
A: They share the AO4H designation and similar 4-channel 4–20 mA HART function, but the Metso D201190 is the native card for Metso DNA systems. Confirm mechanical fit and bus protocol before substituting.
Q: Does it support hot-swap?
A: Yes. The module is designed for replacement under power in compatible Metso chassis, reducing the need for a full system shutdown.
Q: What is the typical warranty on new-surplus stock?
A: Functional warranty is standard. Confirm the exact term with the supplier; many offer 60-day to one-year coverage on tested units.
Q: Can I use it for voltage outputs instead of current?
A: The primary design is current (0/4–20 mA). Voltage output normally requires an external resistor or a different module type.
Q: How many of these fit in a standard Metso I/O rack?
A: Capacity depends on the specific chassis, but the AO4H is a single-slot module. Plan channel count against available slots and power budget.
Q: Is firmware still supported?
A: Metso/Valmet continues to recognize the AO4H family in DNA systems. Verify the latest compatible revision against your engineering station software before installation.
