Description
Core Product Summary (Brand / Model / Key Attributes)
The Metso D201483 is a smart valve positioner module from the Neles product family (compatible with ND9000 / Series 2000 platforms). It receives a 4–20 mA control signal with HART communication and provides precise pneumatic control of valve actuators.
The module is designed for industrial process control applications and serves as an intelligent interface between the control system and the pneumatic actuator.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product type | Smart valve positioner module |
| Manufacturer | Metso (Neles) |
| Model | D201483 |
| Series compatibility | Neles ND9000 / Series 2000 |
| Input signal | 4–20 mA DC + HART |
| Function | Pneumatic valve positioning with diagnostics |
| Communication | HART protocol |
Detailed Product Overview
The Metso D201483 is an advanced pneumatic valve positioner module belonging to the Neles smart positioner family. It converts a standard 4–20 mA analog control signal (with superimposed HART digital communication) into a precise pneumatic output that positions the valve actuator according to the process demand.
The module continuously compares the commanded setpoint with the actual valve stem or shaft position and adjusts the air pressure to the actuator to minimize positioning error. Built-in intelligence supports configuration, diagnostics, and performance monitoring via HART.
It is intended for use with both rotary (quarter-turn) and linear (sliding-stem) control valves in process industries. The design emphasizes reliable operation in industrial environments and supports predictive maintenance through on-board diagnostics.
Because the D201483 is a system-specific component within the Neles/Metso positioner range, correct matching to the actuator type, mounting kit, and system requirements is essential. Installation, calibration, and configuration follow the procedures defined for the Neles ND9000 family.
Engineering Selection Highlights
- Smart positioner module for Neles ND9000 / Series 2000 platforms.
- Accepts 4–20 mA + HART input for closed-loop valve positioning.
- Provides precise pneumatic control of rotary and linear actuators.
- Supports HART-based configuration and diagnostics.
- Suitable as a replacement or upgrade module within compatible Neles positioner assemblies.

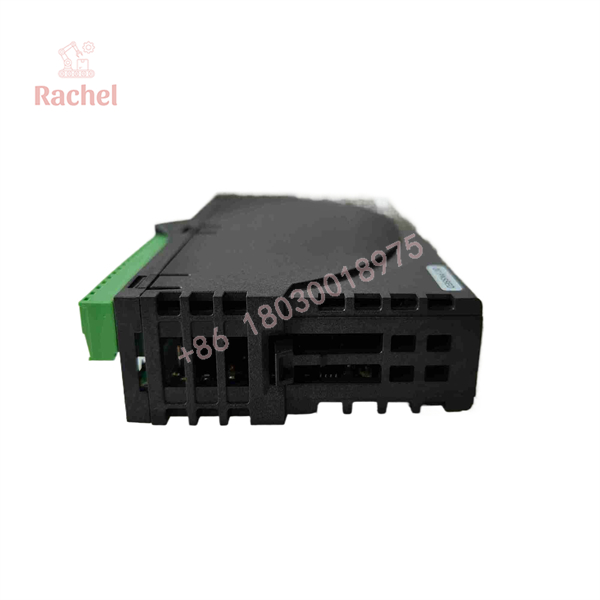

D201483
D201483
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
|---|---|---|
| Positioner family | Neles ND9000 / Series 2000 | Core compatibility |
| Input signal | 4–20 mA DC + HART | Standard process control signal |
| Actuator type | Pneumatic rotary or linear | Matching mounting kit required |
| Communication | HART protocol | For configuration and diagnostics |
| Configuration | Neles / Metso positioner tools | Follow manufacturer procedures |
Dimensions, Mounting & Connection Notes
The D201483 is designed for integration into a Neles smart positioner housing or as a replacement electronics module. Pneumatic connections, electrical wiring, and mechanical mounting follow the standards of the host positioner assembly (typically VDI/VDE 3845 or IEC 60534-6 actuator interfaces). Proper air supply filtration and electrical grounding are required.
FAQ
What is the Metso D201483?
It is a smart valve positioner module from the Neles ND9000 / Series 2000 family that provides HART-enabled pneumatic valve control.
What input signal does it accept?
4–20 mA DC with HART communication.
Which valves can it control?
Pneumatic rotary (quarter-turn) and linear (sliding-stem) control valves when fitted with the appropriate mounting kit.
Does it support diagnostics?
Yes. HART communication enables configuration and diagnostic functions.
Is it a complete positioner or an internal module?
It is identified as a positioner module, typically used as the intelligent control element within a Neles smart positioner assembly.
Verification & Troubleshooting Notes
- Confirm the module marking matches D201483 and that it is intended for a Neles ND9000 or compatible Series 2000 positioner.
- Verify the actuator type and mounting kit compatibility before installation.
- Ensure clean, regulated instrument air supply and correct 4–20 mA loop wiring.
- Use HART tools or the local interface (if equipped) to check configuration, calibration, and diagnostic status after installation.
- Follow Neles/Metso procedures for safe isolation of air and electrical supplies during maintenance.
