Mitsubishi A1SJ51T64 MELSEC-AnS MININET Interface Module

Description

Product Introduction

The Mitsubishi A1SJ51T64 functions as a dedicated MININET fieldbus interface module for the compact MELSEC-AnS PLC series. Plugging directly into the backplane of an A1S CPU rack, it manages cyclic data exchange and control commands between the local PLC processor and remote MININET I/O blocks across distributed automation cells.

Engineered to replace complex parallel wiring harnesses, this module uses a shielded twisted-pair RS-485 serial link to route up to 64 remote I/O points back to the CPU. Its rugged construction, front-panel LED diagnostic array, and isolated terminal connections keep communication stable in high-noise factory environments.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

When a legacy MININET communication board loses its receiver stage on a high-speed packaging machine, remote I/O blocks drop out instantly. The main AnS CPU throws an external I/O fault, halting conveyors, indexers, and pneumatic actuators. Finding a drop-in A1SJ51T64 card with matching switch configurations gets the communication loop running without needing an expensive, full-system controls retrofit.

• Automated Packaging Lines – Routes signals from remote sensor clusters and valve manifolds back to the main A1S PLC CPU.
• Material Handling Conveyors – Controls distributed photo-eyes, motor starters, and diverters across extended assembly lines.
• Plastic Injection Molding Cells – Connects auxiliary core-pull and part-ejector remote stations to central machine logic.

Field Case Study

A automotive plastics plant experienced intermittent “RD Error” and “PARITY” fault trips on an automated trimming cell driven by an A1SJ51T64 card. Age and vibration had degraded the receiver optocouplers on the original module, causing packet drops every time large motor contactors pulled in. The maintenance team pulled a bench-tested surplus A1SJ51T64 board from critical spares. Swapping the card, setting the station address switches, and tightening the RS-485 shield ground restored clean communications in under 20 minutes, avoiding a $180,000 shift shutdown penalty.

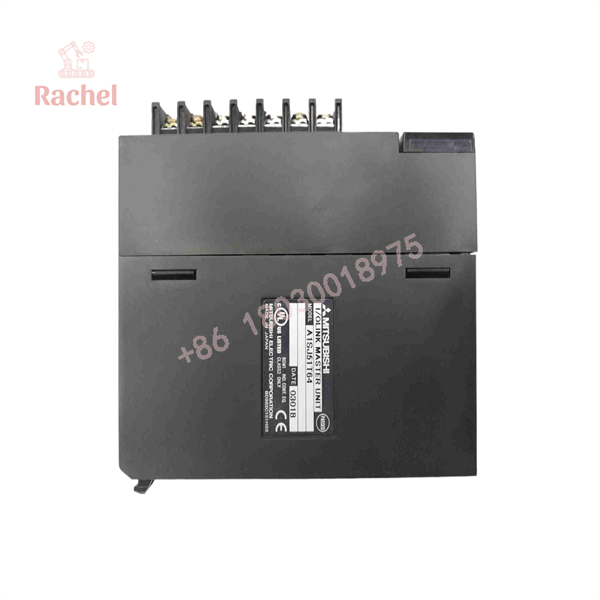

A1SJ51T64

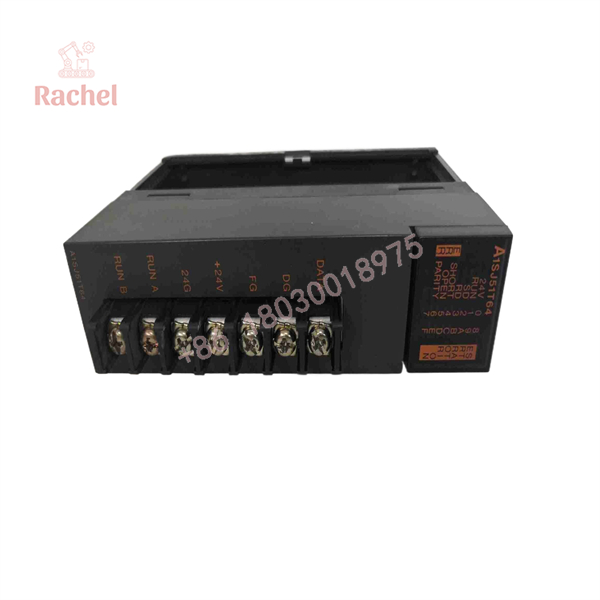

A1SJ51T64

Transparency SOP: Quality Assurance & Testing

We test our legacy Mitsubishi hardware on active PLC rack rigs before approving it for inventory.

1. Inbound Mechanical Inspection: Inspect outer casing latches, rear backplane connector pins, and check screw terminal block threads.
2. Power-On & Self-Test: Mount the module on a live AnS backplane rack, apply logic power, and verify boot LED diagnostics.
3. Loopback & Serial Comm Check: Connect the card to a active MININET remote I/O node over a 100-meter RS-485 test link to verify clean SD/RD handshakes and zero packet corruption.
4. Noise & Isolation Test: Confirm proper ground isolation on the RS-485 line driver stage to rule out noise-induced parity failures.
5. ESD Packaging: Seal in static-shielding ESD bags with fresh desiccant before placement in heavy-foam shipping boxes.

The Veteran’s Tech Trap Guide

• ⚠️ Match Your DIP/Rotary Switch Addresses Before Install: The A1SJ51T64 uses physical rotary or DIP switches behind the front cover to set network baud rates, terminal resistor settings, and station addressing. Take a high-resolution photo of the old board’s switches and replicate them on the replacement unit before plugging it in!
• ❗ Never Hot-Swap on AnS Backplanes: MELSEC-AnS card cages are non-hot-swappable. Removing or inserting an A1SJ51T64 module while 24V DC or 120V AC backplane power is active will arc the edge connector pins and fry the bus driver ICs on the CPU.
• ⚠️ Verify RS-485 Shield Grounding: Always land the cable shield drain wire on the designated FG (Frame Ground) terminal at one end of the bus loop only. Floating or double-grounded shields pick up ground loops from nearby variable frequency drives (VFDs) and flood the MININET line with noise.
• ❗ Check Terminal Screw Torque: Screw terminals on these modules can vibrate loose over years of operation. Torque the field connections to 0.5–0.8 Nm. A loose connection on the SD or RD line will trigger false PARITY and SHORT error LEDs.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the Mitsubishi A1SJ51T64 still manufactured by Mitsubishi Electric?

A: No. The MELSEC-AnS series and its associated A1SJ51T64 MININET modules are discontinued legacy products. We supply clean, bench-tested surplus stock to keep existing machine installations running.

Q: What do the “SHORT” and “OPEN” LEDs indicate on the front panel?

A: The “SHORT” LED indicates a physical short-circuit condition across the RS-485 MININET communication wires. The “OPEN” LED indicates a broken wire or missing termination resistor on the fieldbus loop.

Q: Can this module be used in newer Q-Series or iQ-R Series PLC racks?

A: No. The A1SJ51T64 is mechanically and electrically designed for the legacy AnS (small-type A-series) backplane. Newer platforms use CC-Link, CC-Link IE, or Modbus protocols.

Q: What warranty applies to this surplus module?

A: We back all clean surplus and reconditioned A1SJ51T64 modules with a full 12-month operational replacement warranty.

Q: Why buy surplus modules instead of upgrading to modern CC-Link I/O?

A: Upgrading a full fieldbus architecture requires rewriting PLC programs, replacing remote I/O blocks, and running new field cables, which can take days of downtime. A direct surplus swap gets your machine running in 15 minutes.
