Mitsubishi MR-J2M-20DU MELSERVO-J2-Super 200W Drive Unit

Description

Product Introduction

The Mitsubishi MR-J2M-20DU is a 200W compact single-axis drive unit designed for the MELSERVO-J2-Super multi-axis architecture. Engineered to plug directly into an MR-J2M-BU base unit, it draws shared 283-311V DC bus power from a centralized power supply module. This modular setup drastically reduces cabinet footprint and simplifies main wiring in high-density, multi-axis automation systems.

Unlike standalone AC servo drives that require independent 3-phase mains drops, braking resistors, and bulky line filters for every axis, the MR-J2M-20DU offloads bus rectification to a common power unit. This design allows energy regenerated during axis deceleration to be shared immediately across adjacent drives. It serves as a direct, high-value replacement module for plant managers operating legacy high-speed pick-and-place equipment or compact robotics without forcing an expensive rip-and-replace controller upgrade.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: It’s 3:00 AM on a semiconductor packaging line. A 4-axis gantry machine drops out with an AL.32 (overcurrent) fault on Axis 2. You megger the HC-KFS23 motor and check the encoder feedback cable—both are clean. The fault is isolated to a shorted internal power module inside the drive unit itself. Because this 4-axis system shares a single MR-J2M-BU base unit, you don’t need to re-wire mains power or alter network drops for all four axes. Unbolting the face retainer and sliding out the bad MR-J2M-20DU lets you slot in a bench-tested replacement card, cycle control power, and get the machine indexing again within 20 minutes.

• High-Speed Semiconductor Packaging: Controls precise lead-frame positioning and IC pick-and-place heads operating on high duty cycles.
• Small Form-Factor CNC & PCB Drilling: Powers compact X-Y table positioning axes requiring tight speed regulation and minimal position error.
• Robotic Material Handling: Sits in multi-axis articulated loader arms where rapid back-and-forth moves generate shared DC bus regeneration benefits.

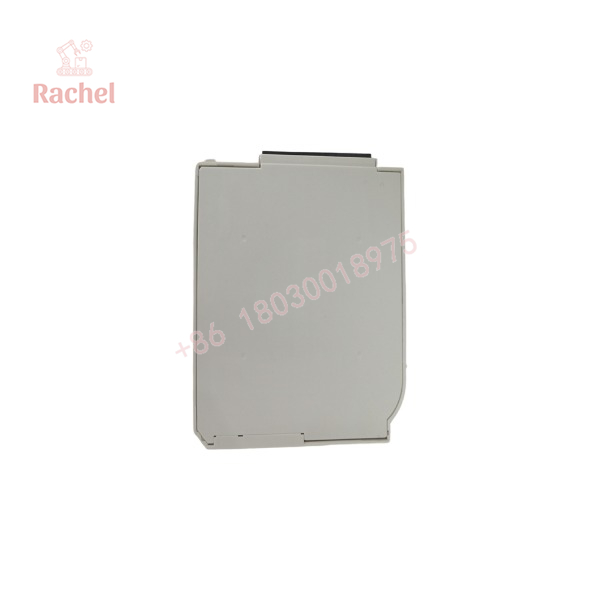

MR-J2M-20DU

MR-J2M-20DU

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Mitsubishi test racks.

1. Inbound Inspection: Inspect casing tabs, backplane edge connections, front-panel CN2/CNP2 plug housings, and check for signs of thermal stress or capacitor leakage.
2. DC Bus Pre-Check: Resistance checks across internal DC power bus pins to ground to rule out shorted IGBT modules before applying voltage.
3. Live Rig Base Installation: Slotted into an active MR-J2M-BU multi-axis base rack supplied with nominal 283V DC power and 24V control logic.
4. Closed-Loop Motor Dynamic Run: Paired with an HC-KFS23 servo motor under real-time load cycles to verify encoder decoding, current loop stability, and zero torque drift.
5. Final QC & Anti-Static Packaging: Applying serial-tracked QC labels and sealing the module in heavy-gauge ESD shielding with custom protective foam packaging.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

⚠️ Never pull the module off the base unit while the main power supply LED is lit. High-voltage DC (300V+) remains on the backplane rails for several minutes after AC power is killed. Pulling the module live will arc the backplane connectors and instantly destroy the pins on the MR-J2M-BU base unit.

❗ Verify encoder cable locking clips. The CN2 encoder connector on the front panel uses small plastic retention latches. If these clips snap or aren’t fully seated, machine vibration will cause transient encoder communication faults (AL.16 or AL.20), causing random axis drops.

⚠️ Check your motor model matching before powering up. The MR-J2M-20DU is calibrated specifically for 200W motor frames (like the HC-MFS23 or HC-KFS23). Connecting a 100W (MR-J2M-10DU capacity) or 400W motor will result in immediate current-loop imbalances and parameter mismatch errors.

❗ Watch out for backplane connector dust. In textile or woodworking environments, fine airborne debris settles into vacant base unit slots. Spray out the female edge connector on the base rack with non-residue contact cleaner before inserting the replacement drive.

Frequently Asked Questions (FAQ for Conversion)

Q: Does replacing an MR-J2M-20DU require saving drive parameters to a PC first?

A: No. In the MR-J2M system architecture, axis parameters are stored in the main positioning controller (or SSCNET master) and downloaded to the drive unit upon system boot. It is a true hardware swap.

Q: Can I replace an MR-J2M-20DU with a standard standalone MR-J2S-20A drive?

A: No. The MR-J2M series relies on a shared DC bus backplane system (MR-J2M-BU). A standard MR-J2S drive requires direct AC mains connections and has a completely different physical mounting footprint.

Q: Can I use this drive unit in a slot designed for an MR-J2M-10DU (100W)?

A: No. Each slot in the base unit is paired with a specific motor capacity and power supply sizing. You must match the 200W drive rating with the corresponding 200W motor configuration.

Q: Why buy a pre-tested surplus unit over migrating to the MR-J4 or MR-JET series?

A: Moving from MELSERVO-J2-Super to current-generation drives requires replacing the controller, updating motion software, running new feedback cabling, and replacing all servo motors simultaneously. Buying a pre-tested MR-J2M-20DU keeps your line running at a fraction of the cost.

Q: What warranty is included with this drive module?

A: Every unit is backed by our full 12-month operational replacement warranty.
