The Monico CDL-MCLE-FWM is a specialized industrial protocol converter engineered to translate proprietary Caterpillar Data Link (CDL) engine and generator set parameters into mainstream automation protocols. Housed in a DIN-rail mountable enclosure, this gateway acts as a translator between heavy-duty CAT engines—like 3500 series gensets or G3500 gas engines—and plant-wide PLC/DCS networks. It eliminates the need for expensive OEM proprietary monitoring panels by mapping engine diagnostics directly into SCADA systems.
To be honest, bridging Caterpillar’s proprietary CDL protocol into standard Modbus RTU or Ethernet/IP without this gateway is an absolute headache. The CDL-MCLE-FWM strips out the complexity by parsing raw engine parameters (engine RPM, oil pressure, coolant temperature, fault codes) into standard register maps. Instead of messing with custom RS-485 driver code, your Allen-Bradley or Siemens PLC can simply pull data straight out of pre-configured registers over Ethernet or serial connections.
Key Technical Specifications
| Parameter | Value |
| Input Protocol | Caterpillar Data Link (CDL) |
| Output Protocols | Modbus RTU/TCP, Ethernet/IP, CANopen, Profibus |
| Serial Ports | RS-232 / RS-485 (Isolated) |
| Ethernet Port | 10/100Base-T (RJ45) |
| Input Voltage | 24 VDC nominal (10-30 VDC range) |
| Current Draw | Approx. 400 mA @ 24 VDC |
| Operating Temperature | -20^\circC to 60^\circC |
| Mounting | Standard 35 mm DIN-rail mount |
| Diagnostics | LED status indicators for Power, Comm, and CDL Bus active |
| Configuration Tool | Monico Console / Software via Serial or USB |
Application Scenarios & The “Trench” Experience
Picture this: It’s 2 AM on an offshore drilling rig, and a CAT 3516 diesel engine drops an alarm on its local ECM, but your central control room operators are blind to it. The third-party bridge card failed, locking up the RS-485 bus and taking down communications for three generator sets. The rig manager is threatening downtime costs by the minute. You swap in a pre-configured CDL-MCLE-FWM module on the DIN rail, plug in the CDL twisted pair, verify the rx/tx LEDs, and watch all 40+ engine registers instantly pop back up on the SCADA screen. System online.
- Oil & Gas – Compressor Station Power Generation: Bridges CAT G3500 series gas engines directly to Emerson DeltaV or Rockwell ControlLogix DCS networks for real-time fuel and ignition tracking.
- Marine & Offshore – Main Propulsion Monitoring: Collects CAT engine operating parameters, fault codes, and exhaust temperatures to feed central vessel management software.
- Data Centers – Emergency Backup Power: Integrates CAT standby diesel generators into building management systems (BMS) over Modbus TCP to ensure instant polling during power outages.
- Mining – Haul Truck Diagnostics: Serves as a stationary diagnostic gateway on field test stands during engine overhauls.

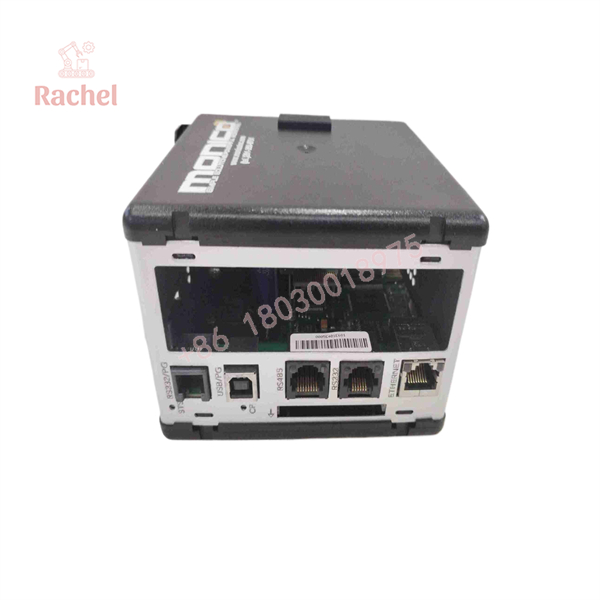

CDL-MCLE-FWM

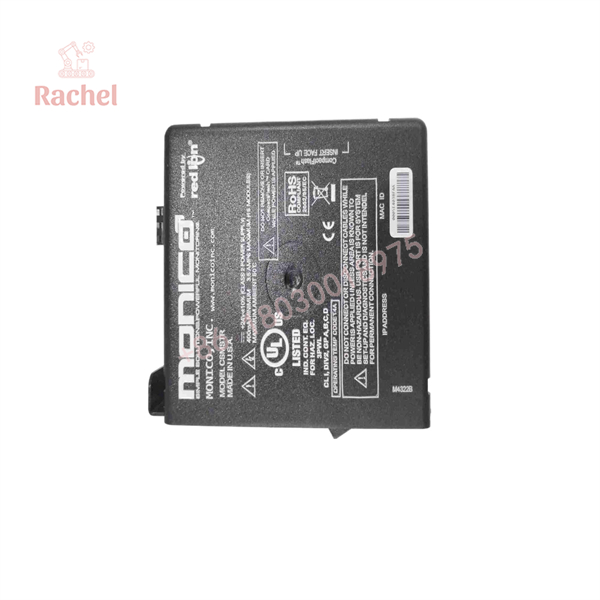

CDL-MCLE-FWM
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual Monico and CAT simulator rigs. Every CDL-MCLE-FWM unit in our inventory passes through a strict multi-step validation protocol:
- Inbound Inspection: Physical audit of terminal blocks, casing integrity, and verifying intact OEM serial tags.
- Live Rig Testing: Powered up on 24 VDC bench power and connected to a simulated Caterpillar Engine Control Module (ECM) via CDL twisted-pair wiring.
- Communication Handshake: Verified active polling over RS-485 and Ethernet ports using Modbus Master diagnostic software to confirm data integrity.
- Firmware Verification: Logging exact firmware, bootloader, and configuration file versions onboard.
- Final QC & Anti-static Packaging: Cleaning, terminal protection, and ESD-safe sealed packaging before dispatch.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ CDL Polarity Sensitivity: The Caterpillar Data Link bus is notoriously finicky. If you flip CDL+ and CDL-, the module won’t fry, but you will get zero comms and spend hours troubleshooting. Label your wires before pulling the old unit.
❗ Termination Resistor Placement: Ensure the CDL network is properly terminated with 120-ohm resistors if this gateway is sitting at the end of the line. Missing termination resistors cause signal reflections that lead to intermittent packet drops, especially on longer runs between gensets.
⚠️ Register Map Differences: Caterpillar ECMs differ by model and generation (e.g., ADEM II vs. ADEM III vs. ADEM IV). Take a backup photo or export of the Monico configuration file (.mcf) from your old gateway. Loading a default map into a new CDL-MCLE-FWM might result in misaligned register addresses in your PLC.
Frequently Asked Questions (FAQ for Conversion)
Q: Will this module work with non-Caterpillar engines?
A: No. The CDL-MCLE-FWM is specifically built with hardware and firmware designed to communicate via Caterpillar’s proprietary CDL protocol. For J1939 or CANbus-only engines (like Cummins or Detroit Diesel), a different Monico variant (like the J1939-MCLE) is required.
Q: Do I need special software to program or configure the gateway?
A: Yes, configuration is handled via Monico’s configuration software tool. You can set up IP addresses, port baud rates, and map specific CDL parameters to Modbus/Ethernet registers.
Q: Can I pull engine fault codes (diagnostic codes) as well as operational data?
A: Yes. The CDL-MCLE-FWM maps operational metrics (RPM, temperature, pressure, fuel rate) as well as active and logged Diagnostic Trouble Codes (DTCs) into standard register blocks.
Q: Why is your price lower than purchasing directly through a local dealer?
A: We source our inventory through verified industrial surplus liquidations, plant spare-parts clearances, and project overstocks. You get original, authentic Monico hardware without the standard multi-week factory lead time.
Q: What coverage comes with this unit?
A: Every CDL-MCLE-FWM module comes backed by our 12-month replacement warranty. If a hardware fault occurs under normal operating conditions, we replace the module immediately.
