Description
Product Introduction
The MTL 8202-HO-IS is an 8-channel intrinsically safe digital output module built for the legacy MTL 8200 Series distributed process I/O platform. It acts as the galvanic isolation interface between control system logic and field actuators, solenoids, or alarm indicators mounted in hazardous gas or dust environments. Plant engineers rely on this module in critical control loops where space efficiency and field-side fault containment are mandatory.
Unlike non-IS cards that force you to stuff separate galvanically isolated barriers onto a DIN rail, the 8202-HO-IS bakes intrinsic safety right into the channel architecture. This slashes panel footprint and cuts field wiring points in half. It delivers low-power switching directly to field devices without risking ignition sparks across hazardous plant areas.
Key Technical Specifications
| Parameter | Specification |
| Number of Channels | 8 isolated output channels |
| Module Type | Digital Output (Intrinsically Safe) |
| System Compatibility | MTL 8200 Series I/O backplanes |
| Hazardous Area Location | Zone 0 / Zone 1 / Class I, Div 1 |
| Field Output Capability | Low-power solenoid driving, relay energization, status lamps |
| Galvanic Isolation | Channel-to-system backplane isolation |
| Power Supply Requirements | System backplane powered (24V DC bus) |
| Diagnostics | Channel LED status indicators |
| Operating Temperature | -20°C to +60°C |
| Mounting | Carrier/Backplane mounted |
Application Scenarios & The “Trench” Experience
It is 2 AM on a rainy Tuesday. Your chemical plant’s solvent recovery unit drops offline because a batch reactor valve refuses to actuate. The DCS reports a comm hand-off, but the field valve isn’t picking up power. You trek out to the local rack box, open the enclosure, and find a dead channel on a 20-year-old output card. The process is sitting cold, costing $12,000 an hour in lost throughput. You do not need a panel overhaul; you need a drop-in replacement card right now.
- Oil & Gas Processing – Drives ESD emergency shutdown solenoids on offshore separator skids where Class 1 Div 1 compliance is mandatory.
- Chemical Batch Plants – Controls pneumatic valve pilot solenoids inside hazardous solvent distillation units.
- Pharmaceutical Synthesis – Switches local intrinsically safe alarm beacons inside explosion-proof powder mixing rooms.
Field Case Study: A Gulf Coast refinery faced a potential 48-hour shutdown on their hydrotreater unit after a power surge scorched three channels on an old 8202-HO-IS card. Because the OEM legacy series is long past active production, waiting on factory build times wasn’t an option. We pulled a pre-tested, certified new-surplus unit from our vault and couriered it to the plant gate. The instrumentation tech plugged it into the 8200 rack, cleared the rack fault, and brought the hydrotreater back online within 6 hours.

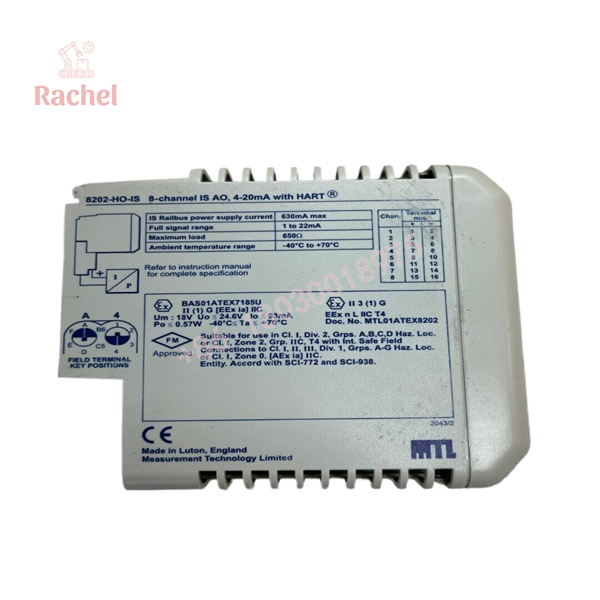

8202-HO-IS

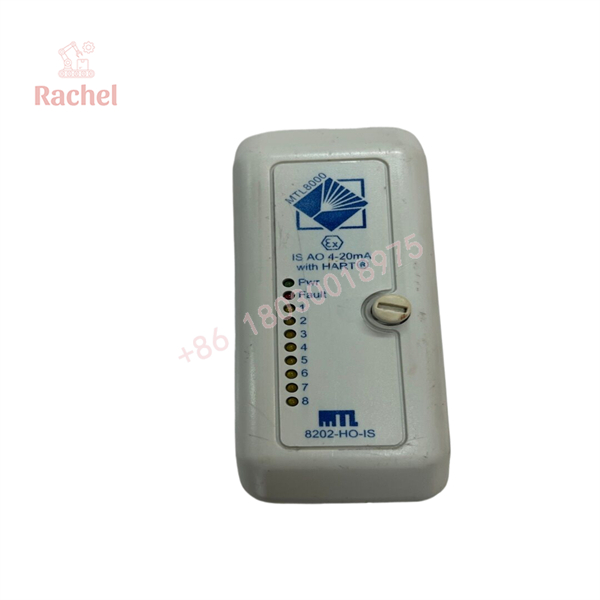

8202-HO-IS
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual MTL racks. Here is how we verify every card:
- Inbound Physical Inspection: We inspect casing integrity, connector pins, backplane edge teeth, and serial numbering for signs of strain or thermal stress.
- Anti-Counterfeit Checks: We verify OEM conformal coating pattern and component laser etchings under magnification.
- Power-On Self-Test (POST): The module is installed in a live 8200 carrier backplane to confirm power rail stability and CPU handshake.
- Channel Load & Loop Testing: Every individual DO channel is loaded with an IS load simulator to verify current delivery and clean switching thresholds.
- ESD-Safe Processing: Final clearing, sealing in static-shielding bags, and packing in custom shock-absorbing foam.
The Veteran’s Tech Trap Guide
To be honest, most field failures during card replacements happen because of human oversight. Keep these pitfall warnings in mind:
- ⚠️ Do Not Force the Card into the Carrier: The backplane pins on 8200 series racks bend easily if misaligned. If the module does not seat smoothly, pull it back and check alignment. Don’t force it.
- ❗ Verify Field Circuit Intrinsic Safety Parameters: Replacing the module does not fix a field short. If a solenoid coil shorted out and fried the old card’s internal zener/fuse arrangement, the new card will pop immediately upon insertion. Test your field wiring loop resistance before powering up.
- ⚠️ Observe ESD Safeguards: Human body static will destroy IS sensing components. Ground yourself with a wrist strap before pulling the module from its anti-static bag.
- ❗ Backplane Keying: Check the mechanical keying pegs on the base unit. If someone modified keying for a different card type in the past, forcing an 8202-HO-IS into the slot will break the guide pins.
Frequently Asked Questions
Q: Is the MTL 8202-HO-IS hot-swappable?
A: Yes, provided the host system carrier supports live insertion and local permit-to-work rules allow it. However, in hazardous gas zones, always follow your facility’s hot-work permit requirements before opening active enclosures.
Q: Is this a brand-new unit from Eaton MTL?
A: The 8200 series has legacy status. These modules are acquired through clean factory excess stock, system migration buybacks, or plant surplus. Every unit passes rigorous bench testing before sitting on our shelf.
Q: How do I know this isn’t a repaired or low-quality knockoff?
A: We verify board traces, component dates, and OEM potting materials. We do not sell units with hacked jumpers or burnt circuit board substrate. You receive a fully tested, functional card backed by a warranty.
Q: What warranty comes with this module?
A: We back all our new-surplus and reconditioned modules with a full 12-month replacement warranty. If a channel fails under normal operating conditions, we swap it out.
Q: Can I use this card to drive standard non-IS loads?
A: Technically, an IS output can switch standard low-power loads, but doing so destroys its IS rating for future use in hazardous zones once non-IS voltage levels touch the circuitry. Keep IS and non-IS loops strictly separated.
