MTL 8602-FT-ST MTL8000 Process I/O Fieldbus Terminator Module

Description

Product Introduction

The MTL 8602-FT-ST is a specialized bus termination module belonging to the Eaton MTL8000 Process I/O platform. Designed for industrial process automation and hazardous area installations, this unit provides precise transmission line impedance matching at the physical ends of an MTL8000 fieldbus network segment.

In high-speed fieldbus communications (such as PROFIBUS-DP or proprietary internal I/O buses), unterminated bus ends cause signal reflection, standing waves, and data packet corruption. The 8602-FT-ST eliminates electrical noise and signal distortion across the communication carrier, ensuring stable, jitter-free data transmission between remote I/O nodes and the host controller.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: It’s 3:30 AM in a chemical processing plant, and the main DCS starts throwing intermittent communication timeout errors across multiple remote I/O racks. Analog valve positioners are jittering, and temperature readings fluctuate wildly. The maintenance team swaps I/O cards and re-runs shield grounds, but the problem persists. The root cause? A degraded or missing bus terminator at the far end of the carrier segment causing signal reflections to bounce back through the RS-485 line. Dropping in an exact-fit, tested MTL 8602-FT-ST module instantly cleans up the waveform and brings the entire field bus back to 100% stability.

• Refinery Remote I/O Cabinets – End-of-line bus stabilization – Prevents communication packet loss on long cable runs between field carriers and main DCS interfaces.
• Chemical Batch Facilities – Hazardous area fieldbus networking – Maintains clean signal integrity across high-density MTL8000 I/O nodes.
• Water Treatment Telemetry – Distributed PLC I/O racks – Eliminates transient signal noise on RS-485/PROFIBUS trunk segments.

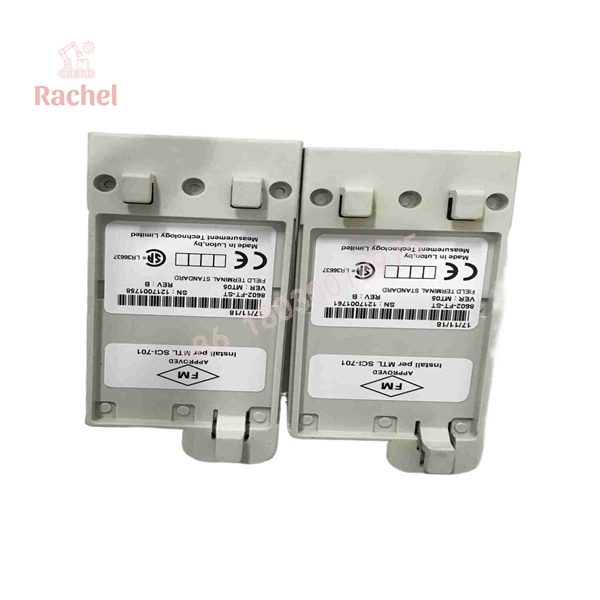

8602-FT-ST

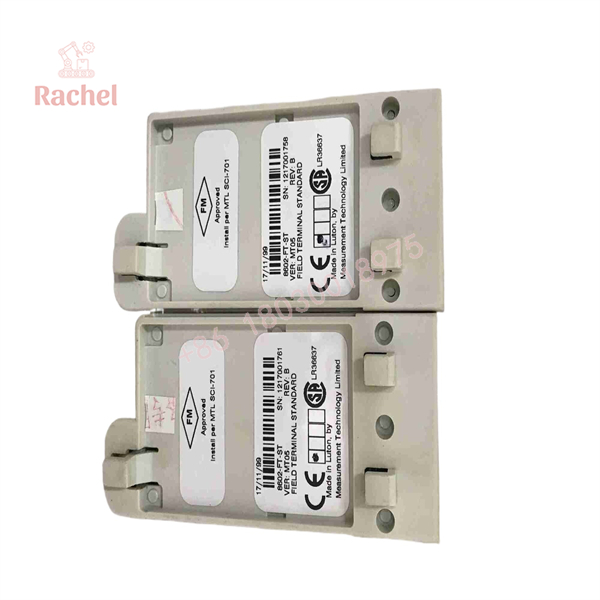

8602-FT-ST

Transparency SOP: Quality Assurance & Testing

Every 8602-FT-ST module undergoes strict testing prior to dispatch:

1. Visual & Structural Inspection: Detailed check of housing clips, terminal screws, connector pin alignment, and original OEM serialization labels.
2. Passive Resistance & Impedance Verification: Measuring internal resistor networks across signal pins to verify precise characteristic line impedance values.
3. Active Bus Load Simulation: Installing the terminator on an active test bench carrier with an MTL8000 node to measure oscilloscope signal symmetry and signal-to-noise ratio (SNR).
4. Thermal Stability Check: Verifying electrical resistance stability across standard operating temperature ranges.
5. ESD Packaging: Sealed in anti-static shielding bags with moisture absorbers, shipped in custom foam-padded boxes built for heavy transit protection.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Verify Physical Location Before Installing: Bus terminators must strictly be installed only at the two physical ends of a fieldbus segment. Installing a terminator in the middle of a carrier chain will heavily attenuate the signal, causing node dropouts across the entire network loop!
• ❗ Check Screw Terminal Torque (ST Model): The “ST” designation stands for Screw Terminals. Ensure field signal wires are tightened securely without over-torquing, which can fracture internal PCB solder pads on legacy units.
• ⚠️ Inspect Carrier Connector Pins: Always inspect the backplane carrier pins for bent contacts, oxidation, or dust before seating the module. Poor pin contact at the terminator will result in intermittent fieldbus fault alarms.
• ❗ Don’t Mix Built-in & External Termination: If your bus interface module (e.g., 8502-BI-DP) or line coupler already has an active onboard termination switch enabled, do not install a standalone 8602-FT-ST at that same node point. Double-termination causes excessive signal load.

Frequently Asked Questions (FAQ for Conversion)

Q: What does the 8602-FT-ST module do in an MTL8000 system? A: It provides line termination at the end of the fieldbus segment to prevent signal reflections, voltage spikes, and packet corruption on the communication carrier.

Q: What does the “ST” suffix stand for in part number 8602-FT-ST? A: “ST” indicates the terminal connection style—specifically standard Screw Terminals (as opposed to spring-clamp terminal variants).

Q: Is the MTL 8602-FT-ST still in active production by Eaton MTL? A: No, legacy MTL8000 series modules like the 8602-FT-ST have been discontinued or phased out by Eaton MTL. We supply bench-tested Refurbished and New Surplus inventory to support active plant operations without requiring costly rack retrofits.

Q: What happens if a fieldbus segment is missing its bus terminator? A: Without a proper terminator, signal reflections bounce back along the transmission line. This causes high bit-error rates, intermittent node communication faults, and total network dropouts.

Q: What warranty comes with this replacement unit? A: Every MTL 8602-FT-ST module includes a full 12-month functional warranty. If any operational defect occurs under normal operating conditions within one year, we repair or replace the unit promptly from stock.
