Description
Product Introduction
The MTL 8810-HI-TX is a high-integrity Analog Input / HART Transmitter Interface Module designed for the Eaton MTL8000 Process I/O family. Engineered for demanding industrial automation, safety, and process control applications, this module interfaces standard 4–20 mA field transmitters with host control systems while supporting bi-directional HART digital communications.
By facilitating high-integrity signal conversion and HART pass-through, the 8810-HI-TX allows control systems (such as DCS or PLC networks) to process continuous variable inputs while simultaneously accessing field device diagnostics, calibration data, and secondary process variables.
Key Technical Specifications
| Parameter | Specification / Value |
|---|---|
| Manufacturer | Eaton MTL Instrument Group |
| Part Number | 8810-HI-TX |
| Product Line | MTL8000 Process I/O / 8000 Series |
| Module Type | HART Analog Input Module |
| Input Channels | Multi-channel analog input (4–20 mA DC) |
| Digital Protocol | HART digital signal pass-through |
| Signal Resolution | High-accuracy A/D conversion |
| Power Supply | Backplane-powered via 24 VDC bus |
| Isolation | Channel-to-bus and channel-to-power isolation |
| Mounting Format | MTL8000 Series Backplane / Carrier Mount |
| Operating Temperature | -40°C to +70°C (-40°F to +158°F) |
Application Scenarios & The “Trench” Experience
Picture this: It’s 1:00 AM during a heavy storm at a continuous process facility. A critical pressure transmitter on a boiler system starts reporting erratic values, triggering warning flags in the central control room. Standard analog troubleshooting reveals the loop current is stable, but diagnostic data cannot be polled. The root issue points to a degraded HART modem or input stage in the carrier-mounted I/O card. Replacing the faulty 8810-HI-TX on the MTL8000 carrier immediately restores both primary 4–20 mA process variable tracking and real-time HART telemetry without disrupting the main controller segment.
- Petrochemical Plants – Critical field instrument monitoring – Captures process values and diagnostic data from hazardous area pressure and level transmitters.
- Refineries & Power Generation – High-integrity safety loops – Interfaces 4–20 mA transmitters with central control platforms requiring high reliability.
- Water & Wastewater Treatment – Remote flowmeter telemetry – Delivers primary process feedback alongside secondary diagnostic alerts over HART.

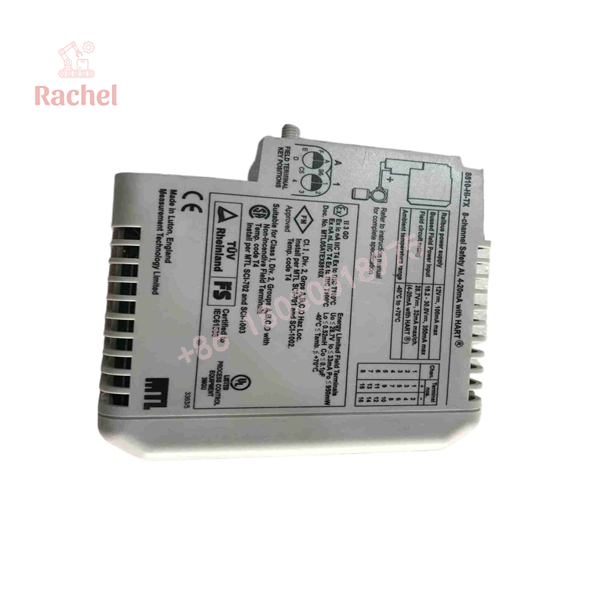

8810-HI-TX

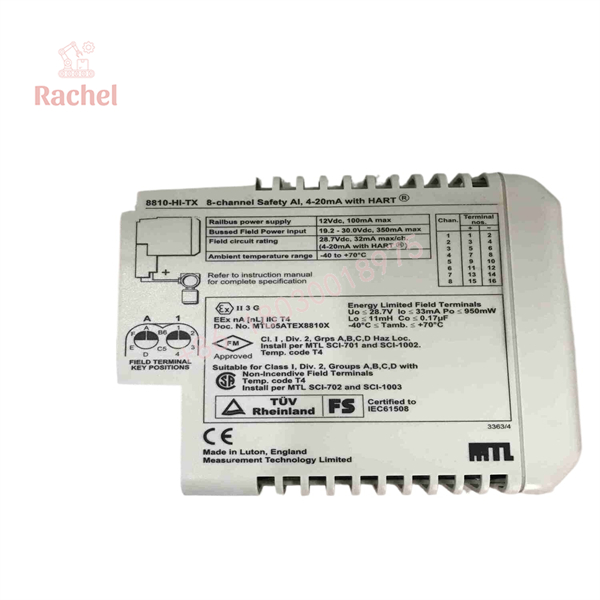

8810-HI-TX
Transparency SOP: Quality Assurance & Testing
Every 8810-HI-TX module undergoes standard hardware diagnostic and loop signal testing before dispatch:
- Visual & Mechanical Check: Inspection of backplane edge connectors, module retention clips, housing structural integrity, and OEM serial tags.
- 24 VDC Power Rail Test: Applying rated power to verify internal DC-DC converter output stability and status LED indication.
- 4–20 mA Loop Calibration Check: Injecting precise current signals across all channels to confirm analog-to-digital conversion accuracy.
- HART Pass-Through Verification: Linking a communicator or host software to verify bi-directional HART pass-through and diagnostic register reading.
- ESD Packaging: Enclosed in anti-static shielding wrap with moisture absorbers, shipped in custom foam-lined packaging built for transport safety.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Verify Field Wiring & Loop Power Configuration: Before seating the module, check whether your field transmitter requires loop power supplied from the module backplane or from an external power supply. Miswiring can short internal current-limiting circuits.
- ❗ Check Carrier Pin Alignment: Inspect backplane carrier pins for bent contacts, corrosion, or dust build-up prior to insertion. Damaged pins can interrupt fieldbus communication or channel signal loops.
- ⚠️ Confirm HART Pass-Through Settings in Host DCS: Ensure the host control system software or I/O driver is configured to enable HART communication on the corresponding card slot. Disabling HART filtering in software can cause diagnostic polling failures.
- ❗ Ensure Firm Backplane Seating: Always ensure the module side latches click securely into the MTL8000 carrier base. Incomplete seating leads to intermittent channel dropouts and system fault flags.
Frequently Asked Questions (FAQ for Conversion)
Q: What is the main purpose of the MTL 8810-HI-TX module? A: It interfaces 4–20 mA field transmitters to an MTL8000 I/O system, providing high-integrity analog input measurements along with HART digital signal pass-through.
Q: Is the MTL 8810-HI-TX still in active production by Eaton MTL? A: No, legacy MTL8000 series modules like the 8810-HI-TX have been phased out or discontinued by Eaton MTL. Tested Refurbished and New Surplus inventory is supplied to support active systems without requiring full system retrofits.
Q: Does this module support HART field devices? A: Yes, it supports bi-directional HART communication pass-through, allowing host software and handheld configurators to access smart field device diagnostics and secondary parameters.
Q: What warranty coverage comes with this module? A: Every MTL 8810-HI-TX module includes a full 12-month functional warranty. If any operational defect occurs under standard operating conditions within one year, it is repaired or replaced promptly from stock.
