Description
Product Introduction
The MTL 8851-LC-MT is a structural Loop Connection (LC) Carrier / Media Terminal base designed for the Eaton MTL8000 Process I/O platform. Built for hazardous area industrial control systems, this backplane sub-base provides the physical mounting slot, power distribution rail, internal system communication bus routing, and direct field wiring termination points for plugging in MTL8000 active I/O functional modules.
By separating field wiring terminals from the active electronics (like analog input, temperature, or digital I/O modules), the 8851-LC-MT base carrier allows permanent field cabling installation and enables seamless “hot-swapping” or maintenance of active modules without disturbing field loop wiring.
Key Technical Specifications
| Parameter | Specification / Value |
|---|---|
| Manufacturer | Eaton MTL Instrument Group |
| Part Number | 8851-LC-MT |
| Product Line | MTL8000 Process I/O / 8000 Series |
| Module Type | Loop Connection Carrier / Base Terminal Module |
| Termination Style | Screw Terminal (ST) / Media Terminal Connection |
| Backplane Integration | Interlocking internal power & bus connector rails |
| Mounting Format | Standard DIN Rail or Direct Panel Mounting |
| Conductor Size | Accepts standard field wiring up to 2.5 mm² (12–24 AWG) |
| Operating Temperature | -40°C to +70°C (-40°F to +158°F) |
| Relative Humidity | 5% to 95% Non-condensing |
Application Scenarios & The “Trench” Experience
Picture this: It’s 4:00 AM during a plant turnaround. A technician needs to replace a damaged analog input card in a high-density marshalling cabinet. Thanks to the two-part design of the MTL8000 platform, you don’t need to unscrew, label, or re-wire dozens of individual field cables. The field wiring stays permanently anchored to the 8851-LC-MT carrier sub-base. However, if physical corrosion, mechanical stress, or terminal screw stripping damages the carrier base itself, having an exact-fit replacement 8851-LC-MT ready lets you restore structural connection integrity quickly without replacing the entire mounting rack.
- Petrochemical & Chemical Plants – High-density marshalling cabinets – Modular carrier mounting for hazardous area field instrumentation.
- Offshore Platforms & Refineries – Hazardous area remote I/O nodes – Provides vibration-resistant field terminal interfaces on DIN-rail carrier runs.
- Continuous Processing Automation – Process control racks – Facilitates rapid module replacement without disconnecting field loop wiring.

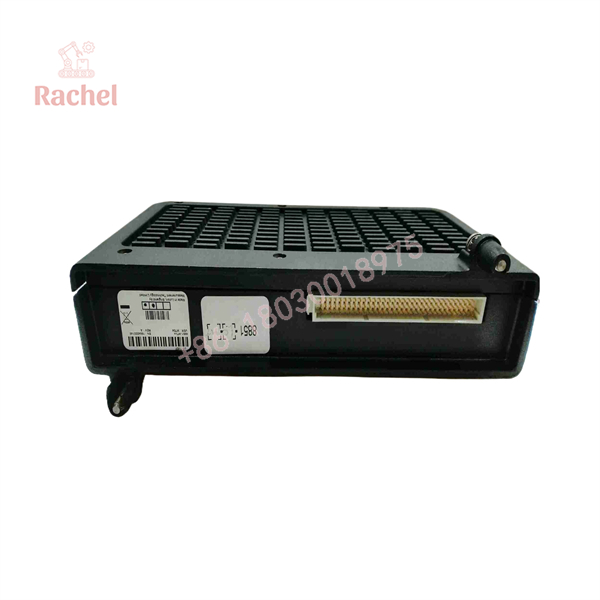

8851-LC-MT

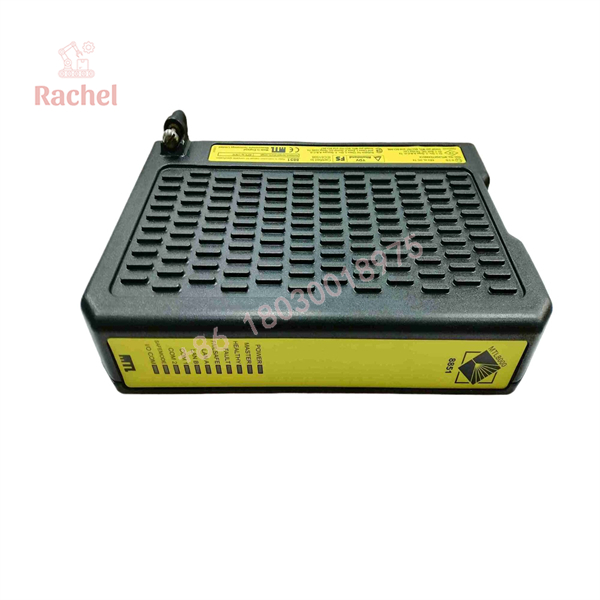

8851-LC-MT
Transparency SOP: Quality Assurance & Testing
Every 8851-LC-MT carrier base undergoes strict structural and electrical testing prior to dispatch:
- Mechanical & Housing Integrity Check: Inspection of DIN-rail mounting latches, interlocking side connectors, keying slots, and structural housing condition.
- Backplane Bus Continuity Test: Measuring trace and pin continuity across internal power, ground, and communication bus connections.
- Terminal Torque & Clamp Inspection: Checking every field wiring terminal screw mechanism to ensure smooth thread travel and secure conductor clamping.
- Module Mating Test: Inserting test MTL8000 active I/O cards to verify proper connector pin alignment, insertion force, and side latch engagement.
- ESD Packaging: Sealed in anti-static shielding wrap with moisture absorbers, shipped in custom foam-padded packaging for transit protection.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Inspect Connector Pin Receptacles for Corrosion: Before mating an active I/O module into the 8851-LC-MT base, check the internal multi-pin backplane socket for bent pins, dust accumulation, or oxidation. Corroded sockets lead to intermittent channel dropouts and bus fault errors.
- ❗ Avoid Over-Torquing Field Terminal Screws: Use an appropriately sized precision screwdriver when terminating field wiring. Over-tightening terminal screws on legacy carriers can strip internal threads or fracture underlying solder pads.
- ⚠️ Verify Interlocking Alignment on Carrier Chains: When snapping adjacent 8851-LC-MT modules together on a DIN rail, ensure the side bus connectors are fully engaged and aligned straight. Misaligned carriers cause open-circuit conditions on the internal power and fieldbus distribution lines.
- ❗ Observe Polarization & Keying Clips: Check module coding keys to ensure only the intended module type is seated into the matching carrier position, preventing inadvertent application of incorrect power levels to field instruments.
Frequently Asked Questions (FAQ for Conversion)
Q: What is the primary role of the MTL 8851-LC-MT carrier? A: It provides the physical mounting base, backplane bus interconnections, and field wire termination points for plug-in MTL8000 series I/O cards.
Q: Is the MTL 8851-LC-MT still actively manufactured by Eaton MTL? A: No, legacy MTL8000 series carrier bases like the 8851-LC-MT have been discontinued or phased out by Eaton MTL. Tested Refurbished and New Surplus inventory is supplied to maintain operating control systems without requiring full cabinet retrofits.
Q: Can active I/O modules be replaced while the 8851-LC-MT remains wired? A: Yes, the two-piece architecture allows active I/O modules to be unplugged and replaced without disconnecting field wiring from the 8851-LC-MT base terminals.
Q: What warranty coverage comes with this replacement unit? A: Every MTL 8851-LC-MT carrier module includes a full 12-month functional warranty. If any defect occurs under normal operating conditions within one year, it will be repaired or replaced promptly from stock.
