NABCO MC-004 Marine Main Engine Control Backplane Rack

Description

Product Introduction

The NABCO (Nabtesco) MC-004 is the primary backplane motherboard board designed for marine main engine remote control consoles, including the M-800 and MG-800 series control systems. Housed within the Engine Control Room (ECR) main maneuvering rack or bridge sub-rack, this multi-slot backplane serves as the central nervous system for plug-in cards like the FKC logic series, power supply modules, and signal conditioning boards.

Engineered to eliminate internal wiring harnesses that degrade under constant engine vibration, the MC-004 utilizes heavy-gauge PCB traces and rugged multi-pin socket connectors to distribute 24V DC power and system bus communication. Conformal coating shields the board against conductive carbon soot, salt-laden marine air, and condensation. By providing a clean hardware interface across expansion slots, it maintains signal integrity between bridge telegraph orders and main engine actuators.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: Your container ship is riding out a rough sea state in the North Atlantic. Suddenly, the bridge panel triggers a cascade of system alarms—telegraph failure, speed governor loss, and bus fault lights all illuminate at once. Down in the engine control room, pulling individual logic cards reveals nothing burnt, but wiggling the rack frame causes signals to drop in and out. Moisture and salt mist have corroded the gold-plated female connector contacts on the legacy MC-004 backplane board behind the cards. Swapping out the complete backplane sub-rack restores clean bus communication across all slots, clearing the alarm cascade instantly.

• Commercial Vessels – ECR Control Consoles – Serves as the central backplane bus interconnecting telegraph order cards, speed setting modules, and safety interlocks.
• Bridge Maneuvering Stands – System Racks – Provides the physical sub-rack housing for bridge-side engine control logic cards.
• Marine Automation Retrofits – Console Repairs – Replaces heat-degraded original backplanes to eliminate phantom intermittent faults without replacing the entire console housing.

Field Case Study

A 300,000 DWT VLCC experienced random main engine slow-down trips during cargo operations in the Persian Gulf. Local engineers replaced three different FKC logic cards over two weeks, but the issue persisted. Trace diagnostics showed a hairline copper fracture on the MC-004 backplane board caused by thermal cycling and cabinet strain over 15 years of operation. A tested surplus MC-004 backplane assembly was flown to the vessel’s next port call. Technicians transferred the original plug-in cards to the new backplane in under 45 minutes, successfully passing full sea-trial engine maneuvering tests.

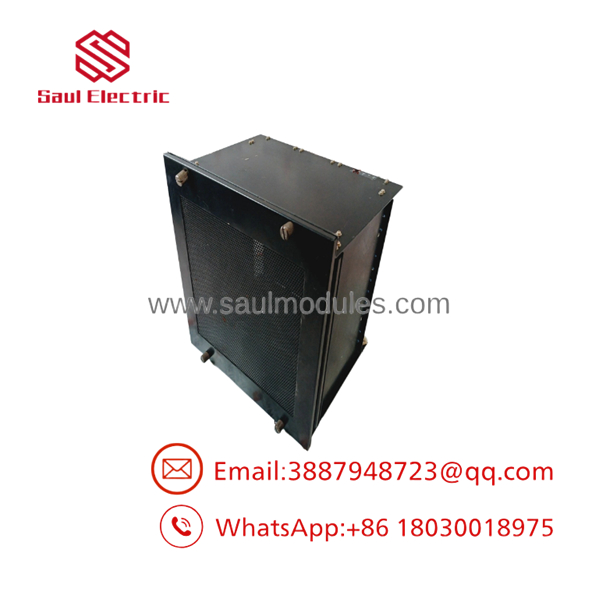

MC-004

MC-004

Transparency SOP: Quality Assurance & Testing

We test these marine backplane assemblies on physical test benches before shipping them to vessel operators or shipyards.

1. Inbound Mechanical & Visual Inspection: Check aluminum guide rails for warping, inspect edge-connector socket pins for corrosion or bending, and verify genuine NABCO silk-screening.
2. Pin-to-Pin Continuity & Isolation Checks: Perform automated point-to-point resistance checks across all backplane traces to verify zero open circuits or cross-trace shorts.
3. High-Current Power Rail Testing: Inject 24V DC across power bus traces while applying load to verify zero voltage drops across heavy ground and supply lines.
4. Card Insertion & Mechanical Fit Check: Test-fit genuine NABCO FKC series cards into every slot to verify smooth rail alignment and positive connector latching.
5. ESD Cleaning & Protective Packaging: Treat female connector contacts with electronic cleaner, seal the backplane in VCI static-shielding bags, and pack it in heavy-duty foam containers for international dispatch.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Isolate Power Buses Before Unwiring: Always tag and disconnect all 24V DC main and backup power feeds to the console before unbolting the MC-004 backplane. Accidental shorting of terminal wires against the aluminum frame can blow upstream panel fuses or damage adjacent sensor power supplies.
• ❗ Label Backplane Terminal Block Cables: The rear of the MC-004 connects to field terminal strips via heavy wiring looms. Take clear photo documentation and tag every wire marker before removal. Swapping wire terminations on the safety interlock bus can lock out engine starting commands.
• ⚠️ Do Not Force Mismatched Cards: Ensure edge-connector guide tracks align perfectly before seating sub-rack modules into the new backplane. Forcing a card into an unaligned slot will bend the female backplane pins, ruining the socket position.
• ❗ Inspect Card Latching Screws: When mounting plug-in cards into the MC-004 frame, always tighten the top and bottom card retaining screws. Leaving cards unlatched allows engine room vibration to back the edge connectors out over time, causing phantom bus dropouts.

Frequently Asked Questions (FAQ for Conversion)

Q: Does the NABCO MC-004 require software configuration or firmware setup?

A: No. The MC-004 is a passive backplane motherboard consisting of printed circuit traces, bus connectors, and structural sub-rack rails. It contains no software or microcontrollers and operates 100% via hardwired copper connections.

Q: Can I replace individual edge-connector sockets on my old MC-004 backplane instead of replacing the entire board?

A: While de-soldering multi-pin DIN sockets is theoretically possible, doing so on a marine-grade conformal-coated PCB risks lifting trace pads or damaging internal multi-layer power planes. Replacing the complete backplane sub-rack is the standard, reliable fix.

Q: Is the MC-004 backplane compatible with all NABCO M-800 series cards?

A: Yes. The MC-004 is designed specifically to accept M-800 and MG-800 series standard card formats, including logic, governor driver, and power monitoring boards.

Q: Why do backplane boards fail if they contain no active semiconductor components?

A: Marine backplanes primarily fail due to contact pin oxidation, sulfur tarnishing on silver/gold contacts, thermal expansion fractures on solder joints, or conductive salt-dust bridging across power bus traces.

Q: What warranty is provided on surplus NABCO backplanes?

A: Every NABCO MC-004 backplane assembly is covered by our 12-month functional replacement warranty.
