Description
Product Introduction
The NABCO MCA-103-01 is a specialized microcomputer control board manufactured by Nabtesco for commercial automatic sliding door operators. Mounted directly inside the header assembly, this card processes activation triggers from overhead motion radars, photoelectric safety beams, and key switches to directly control DC motor torque and deceleration profiles.
As an enhanced variant within the MCA platform, the MCA-103-01 integrates refined motor driver logic with active current-sensing obstruction protection. This hardware-level safety feedback prevents motor overheating during physical blockages, keeping high-traffic commercial entryways running smoothly without losing speed calibration points over time.
Key Technical Specifications
| Parameter | Specification |
| Manufacturer | NABCO (Nabtesco Corporation) |
| Part Number | MCA-103-01 |
| Primary Input Voltage | 100V AC (±10%), 50/60 Hz |
| Control System | Microprocessor-based Motion & Safety Controller |
| Drive Output | Direct DC Motor Output / Dynamic Braking Relay |
| Supported Inputs | Motion Radar, Safety Photocell, Key Switch, Emergency Trip |
| Safety Features | Instant Auto-Reverse on Resistance, Overcurrent Protection |
| Adjustment Trimmers | Open/Close Speed, Creep Range, Hold-Open Time, Reversing Sensitivity |
| Terminal Interface | Multi-Pin Quick-Disconnect Connector Header |
| Operating Temp Range | -10°C to +50°C (14°F to 122°F) |
Application Scenarios & The “Trench” Experience
The Trench Story
It is 3:15 PM on a freezing winter afternoon at a high-end commercial office tower. The main entrance double-sliding doors freeze mid-stroke after a voltage sag, leaving cold air rushing into the main atrium. Facilities managers face an immediate security issue and a $6,500 quote from local installers for a full operator header retrofit with a 3-week lead time. Swapping in a pre-tested, surplus MCA-103-01 board gets the sliding doors running in under 25 minutes, avoiding high replacement costs and HVAC thermal loss.
Application Scenarios
- Commercial Office Towers – High-Traffic Main Entrances – Delivers smooth acceleration and braking curves that eliminate door noise and mechanical track vibration.
- Healthcare Facilities & Lobbies – Pressurized Cleanroom & Emergency Entrances – Maintains consistent hold-open timers and instant safety reversals to preserve air locks.
- Retail Shopping Malls – Continuous Storefront Entrances – Handles thousands of daily opening cycles without drift in low-speed creep calibration.
- Transit Hubs & Airports – Secure Pedestrian Gates – Interlocks with central building alarm systems to force full-open door states during fire trips.
Field Case Study
A commercial service technician reached out after an MCA-103-01 failed due to a line voltage spike caused by a backup generator test. The failed board stopped responding to overhead radar signals, locking the door open. We bench-tested a surplus MCA-103-01 board under simulated sensor loads and shipped it overnight. The field tech isolated line power, mounted the card, matched the trimmer pot positions against the old board, and restored normal operation within 20 minutes on site.

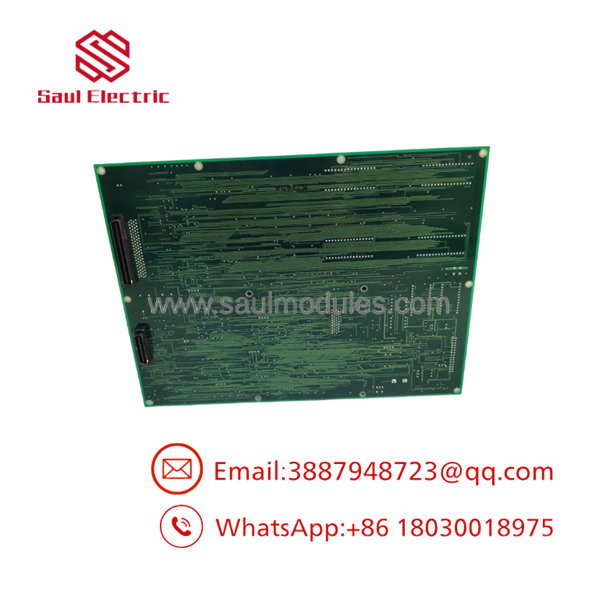

MCA-103-01

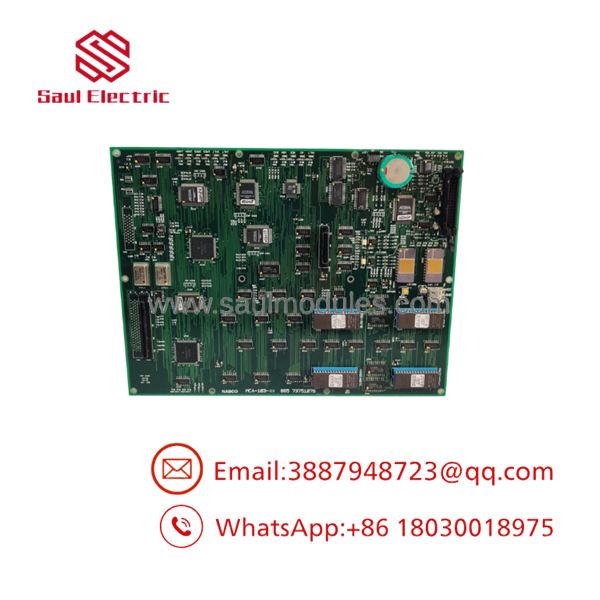

MCA-103-01
Transparency SOP: Quality Assurance & Testing
- Inbound Visual & Integrity Inspection: We inspect casing plastic for cracks, check solder traces under magnification for thermal stress, verify connector pin straightness, and confirm genuine OEM labels.
- Bench Rig Mounting: The card is mounted onto an active test bench wired to an authentic NABCO motor, optical encoder, and safety photocell loop.
- Full Functional Cycle Testing: We run the module through 50+ complete open/close sequences, checking hold-open timing, acceleration ramps, creep-speed transitions, and brake response.
- Safety & Current Load Verification: We physically block the door stroke to verify that the auto-reversing current sense trips instantly without stressing the output drivers.
- ESD Cleaning & Final Prep: Approved boards undergo non-conductive terminal cleaning before being sealed inside anti-static shielding bags with custom foam boxing.
The Veteran’s Tech Trap Guide
- ⚠️ Verify Supply Voltage First: ❗ Never hook up a replacement board without verifying primary line voltage across your step-down transformer secondary. A failing transformer putting out over 115V AC will instantly destroy the primary power stage of your new controller.
- ❗ Photograph Trimmer Dial Positions: Take a clear photo of all potentiometer dials (open speed, close speed, creep zone, hold time) on the old board before unmounting it. Matching these baseline positions on the replacement unit saves considerable time during initial ladder adjustments.
- ⚠️ Check Sensor Jumpers and Logic: The uses onboard jumpers to set sensor input polarity (Normally Open vs. Normally Closed). An incorrect jumper position will cause the door to lock open or reverse unexpectedly.
- ❗ Clean Harness Contacts: Oxidation inside female wiring harness terminals causes high resistance on low-voltage safety lines, leading to intermittent door “ghosting.” Spray the plug with contact cleaner before seating it onto the new board header.
Frequently Asked Questions (FAQ for Conversion)
Q: Is the NABCO board hot-swappable?
A: No. Always disconnect primary line power before unplugging or plugging in the terminal harness. Hot-plugging live connectors can bridge high-voltage pins and destroy the internal microprocessor.
Q: Can I use the as a direct replacement for earlier MCA-001 or MC-series controllers?
A: While they operate on similar principles, terminal pinouts and header pin counts can differ across board generations. Always cross-check the terminal board wiring diagram before applying power to an updated controller model.
Q: Why does the door stay open constantly after installing the new board?
A: This usually indicates an active safety circuit trigger or incorrect jumper logic. Verify that the safety beam sensors are aligned and that the card’s NC/NO safety input jumper matches your sensor contact configuration.
Q: Are these replacement modules brand new or surplus?
A: Since original factory production for the MCA-103 series has been phased out by the manufacturer, our stock consists of certified New Surplus (unused original stock) or rigorously bench-tested Refurbished boards sourced from controlled facility retrofits.
Q: What warranty coverage is included with this controller unit?
A: We provide a full 12-month industrial replacement warranty on every unit. If any hardware defect or functional issue occurs within 365 days of purchase, we offer an immediate exchange or refund.
Q: Why is replacing the controller far cheaper than buying a whole new operator header?
A: Swapping out the controller takes less than 30 minutes and utilizes your existing track, belt, motor, and sensors. Installing a complete new operator header requires structural alterations, major hardware costs, and days of entrance disruption.
