Description
Product Introduction & Engineering Value
A main engine remote control system depends on reliable signal handling between bridge commands, control logic, and engine-side equipment. The NABCO MCB-1202-01 is a dedicated control box PCB designed for engineers maintaining existing NABCO 800III propulsion automation systems.
This board is commonly maintained as a replacement spare for vessels operating legacy NABCO engine control installations. Accurate identification is critical because MCB-series boards can share similar mechanical formats while performing different control functions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | NABCO / Nabtesco |
| Model Number | MCB-1202-01 |
| Product Type | Printed Circuit Board (PCB) |
| Application | Main Engine Remote Control System |
| System Platform | NABCO 800III |
| Equipment Location | Main Engine Control Box |
| Board Function | Control signal processing and interface operation |
| Installation Method | Internal control box PCB mounting |
| Replacement Level | Board-level spare replacement |
| Condition Options | New surplus, refurbished, tested used |
| Storage Requirement | Anti-static protection |
| Compatibility Check | Required before commissioning |
Marine spare references identify MCB-1202-01 as an M/E Control Box PCB and associate it with NABCO 800III Main Engine Remote Control systems.
Field Application & The “Trench” Experience
A bulk carrier operating with a NABCO 800III main engine remote control system began showing intermittent command response problems during maneuvering preparation. The bridge control commands were transmitted correctly, but the engine-side control cabinet occasionally failed to respond as expected.
The maintenance team first checked external wiring, terminal connections, and field devices. After eliminating those causes, attention moved to the Main Engine Control Box PCB assemblies. The failed board was identified as an MCB-1202-01. A replacement card was inspected, installed, and verified through operational testing.
The vessel returned to normal maneuvering capability without replacing the complete remote control system.
Typical application scenarios:
- NABCO 800III Main Engine Remote Control maintenance
- M/E Control Box PCB replacement
- Marine propulsion automation spare inventory management
- Shipyard overhaul projects requiring original NABCO electronics

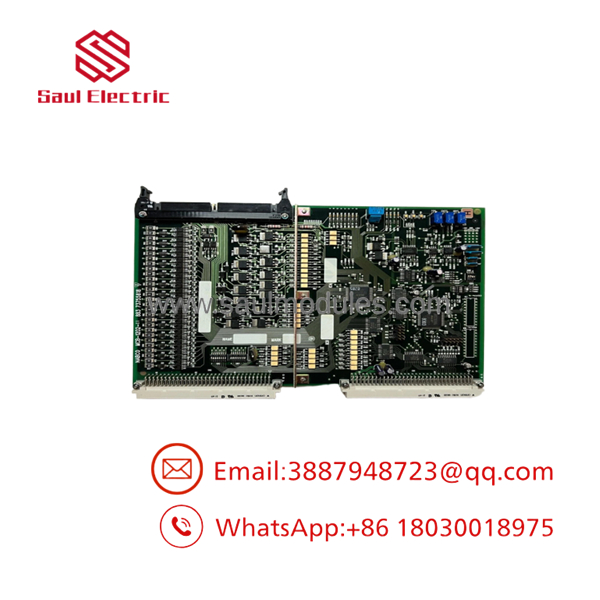

MCB-1202-01
Transparency SOP: QA & Testing
A replacement MCB-1202-01 should pass controlled inspection before being installed into a propulsion control system.
Quality verification process:
1. Identification Confirmation
- Verify NABCO/Nabtesco marking.
- Confirm MCB-1202-01 model.
- Check PCB labels and revision information.
2. Physical Condition Review
- Inspect PCB surface and components.
- Check connectors and terminals.
- Look for corrosion, contamination, or storage damage.
3. Electrical Evaluation
- Perform applicable continuity checks.
- Inspect power-related sections.
- Verify no visible component failure.
4. Final Spare Preparation
- Package using ESD protection.
- Record inspection results.
- Maintain traceable inventory records.
The Veteran’s Tech Trap Guide
⚠️ Do not confuse with MCB-1201-01.
Both belong to the NABCO MCB family, but they are separate control box boards. Replacement should follow the installed equipment documentation.
⚠️ Confirm the complete model number before purchase.
A missing digit or incorrect suffix can result in receiving a board designed for another control function.
⚠️ PRO TIP: Record all terminal and connector positions before removal.
Main engine control boxes often contain multiple harness connections. A simple photo record can prevent incorrect reconnection.
⚠️ Test the complete control sequence after installation.
A PCB that powers up correctly may still fail under actual command conditions.
Dynamic FAQ
Q1. What is the NABCO ?
The NABCO is a Main Engine Control Box PCB card used in NABCO 800III main engine remote control systems.
Q2. What system uses the ?
The is associated with NABCO 800III Main Engine Remote Control systems used in marine propulsion applications.
Q3. Is interchangeable with MCB-1201-01?
No. Although both are MCB-series boards, they may perform different functions inside the engine control architecture. Verify the original board identification before replacement.
Q4. Can a refurbished be used onboard a vessel?
Yes, provided the board has completed inspection, electrical verification, and compatibility checks before installation.
Q5. What information should be provided when sourcing an ?
Recommended details:
- NABCO model number
- Existing 800III system information
- PCB markings or revision data
- Vessel application
- Required condition: new surplus, refurbished, or tested used
Q6. How should the be stored?
Store the PCB in anti-static packaging, keep it protected from humidity and contamination, and maintain inspection records for emergency replacement readiness.
