NABCO MCB-1701-01 Marine Engine Control Circuit PCB

Description

Product Introduction

The NABCO MCB-1701-01 (Part Number 885-73757790) is a specialized marine-grade control card engineered by Nabtesco/NABCO for main engine remote control consoles, maneuvering racks, and automated governor systems. Installed directly into sub-rack card cages inside Engine Control Room (ECR) cabinets, this card provides essential signal conditioning and isolation between operator input levers, engine speed governors, and actuator feedback sensors.

Engineered to operate continuously in high-vibration, humid, and salt-air maritime environments, the MCB-1701-01 filters high-frequency electrical noise and suppresses line transients on control loops. By delivering stable, isolated reference signals to downstream microprocessor boards, it prevents maneuvering glitches and preserves precise engine speed control across all operating modes.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

The Trench Story

It is 01:15 AM on a bulk carrier navigating tight archipelagic straits. A sudden voltage spike on the 24V DC instrumentation loop trips an analog feedback channel on the primary maneuvering rack, triggering a “Governor Control Deviation” alarm on the bridge telegraph panel. The main engine drops into fail-safe slowdown mode. The chief engineer inspects the sub-rack, locates a degraded component stage on the original MCB-1701-01 signal card, and swaps in a pre-tested surplus replacement from the ship’s emergency spares cabinet. Full remote telegraph response is restored in 12 minutes, allowing the vessel to safely maintain transit speed.

Application Scenarios

• Marine Bridge & ECR Control Consoles – Conditions command signals sent from bridge telegraph handles to engine governor sub-racks.
• Main Engine Governor Systems – Isolates tachometer and position actuator feedback loops from high-frequency electrical interference.
• Engine Safety Interlock Systems – Routes critical limit switch, oil pressure, and trip feedback signals into central processor logic cards.
• Heavy Marine Generator Automation – Suppresses noise on analog sensor loops within multi-generator power management panels.

Field Case Study

A marine automation field technician was called onboard a container vessel to diagnose intermittent engine speed hunting during harbor docking maneuvers. Oscilloscope readings traced noisy reference signals back to failing filtering capacitors on the aging MCB-1701-01 board inside the ECR cabinet. We bench-tested a surplus MCB-1701-01 unit under full signal load, verified backplane pin continuity, and delivered the replacement board port-side. The technician inserted the module into the card cage slot, re-engaging clean throttle feedback immediately during post-repair sea trials.

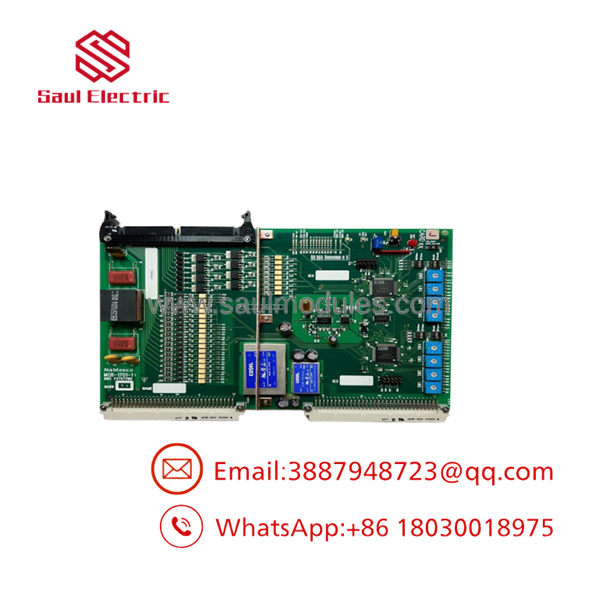

MCB-1701-01

Transparency SOP: Quality Assurance & Testing

1. Inbound Visual & Optical Inspection: We inspect all PCB traces, IC packages, surface-mount components, and solder joints under magnification for thermal stress or physical wear, confirming genuine NABCO silk-screen markings (885-73757790).
2. Backplane Connector Verification: Gold-plated DIN edge-connector pins are thoroughly cleaned and inspected for corrosion, bending, or surface degradation to ensure low-resistance socket contact.
3. Bench Rig Power-On Test: The card is installed into an active test chassis to verify internal power rail stability, bias voltages, and circuit logic integrity under simulated operating currents.
4. Signal Linearity & Noise Analysis: Variable DC setpoints are passed through input channels while monitoring outputs on an oscilloscope to confirm ripple suppression and linear scaling without drift.
5. ESD Cleaning & Protective Packaging: Approved boards undergo non-conductive terminal cleaning before being sealed inside static-shielding ESD bags with custom foam impact protection for global transit.

The Veteran’s Tech Trap Guide

• ⚠️ Confirm Full Part Number Alignment: ❗ Always verify both the model designation and the 885-73757790 part number stamped on the PCB edge. Slight revision suffixes (e.g., -11 or V.e markings) must be verified against backplane pin configurations.
• ❗ Never Pull Cards Under Power: Always isolate main AC/DC power to the sub-rack cabinet before inserting or removing the card. Hot-plugging modular cards can arc high-voltage bus pins directly into sensitive analog processing lines.
• ⚠️ Inspect Female Sub-Rack Sockets: Humidity and salt-air exposure in machinery spaces can cause invisible oxidation on female card cage contacts. Spray electrical contact cleaner into the target slot before seating the replacement PCB.
• ❗ Adhere to Strict ESD Safety: Wear a grounded wrist strap when handling replacement boards onboard to prevent static discharge from damaging sensitive IC chips during installation.

Frequently Asked Questions (FAQ for Conversion)

Q: What is the primary function of the NABCO PCB?

A: It serves as a signal conditioning and isolation module within NABCO marine engine remote control racks, filtering feedback setpoints between control handles, governors, and processing units.

Q: Is the card hot-swappable in an active control cabinet?

A: No. System power to the sub-rack must be completely switched off before removing or inserting the board to prevent electrical arc damage across backplane connector pins.

Q: Are replacement boards available brand new from the factory?

A: Original factory production for legacy NABCO MCB-1701 series components has been phased out. Replacement units are supplied as certified New Surplus (unused original stock) or thoroughly bench-tested Refurbished inventory.

Q: What should I check if a control fault persists after installing the replacement board?

A: Verify that the board is fully locked into the card cage guide rails, inspect female backplane socket pins for alignment or corrosion, and confirm that upstream DC power supply cards are delivering rated voltages.

Q: What warranty coverage applies to this surplus module?

A: Every unit comes backed by a full 12-month industrial replacement warranty. If any hardware defect or operational issue occurs within 365 days of purchase, an immediate unit exchange or refund is provided.

Q: Why choose a replacement PCB over a complete maneuvering system upgrade?

A: Replacing the individual PCB takes under 15 minutes and avoids the massive capital expenditure, extensive cabinet rewiring, and prolonged vessel downtime required for a full system retrofit.
