NABCO MT-800-S98TPE Main Engine Telegraph Unit

Description

Product Introduction

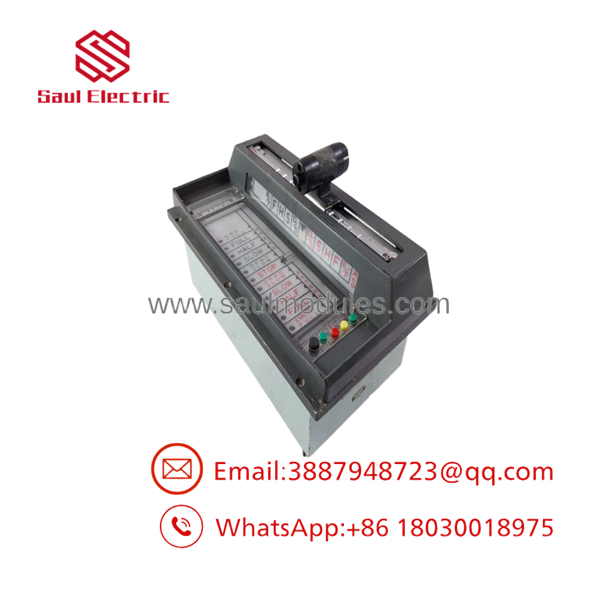

The NABCO MT-800-S98TPE (Part Number 69227) is a heavy-duty main engine telegraph unit manufactured by Nabtesco/NABCO for marine propulsion maneuvering systems. Installed on vessel bridge consoles and engine room control desks, this unit acts as the primary order-command transmitter and responder between bridge officers and marine engineers.

Built to withstand severe vibrations, high humidity, and salt-air exposure, the MT-800-S98TPE integrates rotary command switches, illuminated order indicators, and alarm bell interlock outputs. By converting physical lever/button commands into redundant electrical contacts and serial bus communications, it ensures reliable engine command acknowledgment even during total loss of automated governor control.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

The Trench Story

It is 02:40 AM during an intense storm as a commercial cargo vessel prepares to maneuver into a congested harbor channel. The main automation network experiences a localized signal freeze, rendering the remote throttle lever non-responsive. The bridge officer shifts immediately to emergency manual telegraph control, moving the MT-800-S98TPE handle to “Dead Slow Ahead.” The physical contact closure trips the engine room alarm gong instantly, allowing the duty engineer to match the order manually at the engine side and maintain vessel steerage through the channel.

Application Scenarios

• Marine Bridge Consoles – Serves as the primary bridge order transmitter for setting engine speed and direction modes.
• Engine Control Room (ECR) Consoles – Operates as the receiving sub-telegraph unit to confirm and match bridge speed orders.
• Emergency Engine Control Stands – Functions as a fail-safe mechanical/electrical command backup during automation CPU lockups.
• Vessel Alarm Systems – Triggers engine room alarm gongs until the order acknowledged on the ECR telegraph matches the bridge request.

Field Case Study

A marine service technician was called out to resolve a persistent “Telegraph Mismatch” alarm on a container ship’s propulsion desk. Inspection revealed cracked contacts and internal oxidation inside the original MT-800 telegraph housing, caused by decades of tropical sea air ingress. We pulled a clean, bench-tested surplus MT-800-S98TPE unit from inventory, verified switch contact resistance, and dispatched it via port-side courier. The field engineer swapped the heavy-duty unit, wired the harness headers, and verified full order-matching functionality during departure trials.

MT-800-S98TPE

Transparency SOP: Quality Assurance & Testing

1. Inbound Mechanical & Electrical Inspection: We inspect the cast alloy chassis for housing cracks, check lever detent action, verify illumination lamps, and confirm genuine NABCO serial tags (MT-800-S98TPE / 69227).
2. Contact Resistance & Switch Testing: Every rotary position contact (Full Ahead through Full Astern) is tested with a digital multimeter to guarantee zero-resistance switching without contact bounce.
3. Alarm Bell Relay & Interlock Loop Verification: We power the internal alarm circuit to confirm that command-mismatch relays close and open reliably across all detent stops.
4. Insulation & Dielectric Testing: High-voltage insulation testing is performed between live terminal contacts and the ground frame to ensure marine safety compliance.
5. ESD & Protective Packaging: The 12.8 kg unit is cleaned with electrical contact solvent, wrapped in ESD anti-static barrier film, and secured in custom foam-lined wooden/heavy-corrugated export packaging.

The Veteran’s Tech Trap Guide

• ⚠️ Match Part Numbers Carefully: ❗ Always verify the full designation MT-800- and sub-part number (69227). Similar-looking MT-800 units (like MT-800-S98TPB) may feature different internal switch contact logic or terminal block layouts.
• ❗ Never Force Lever Detents: If the control handle feels stiff or jammed, do not force it. Hard forcing can strip the internal mechanical shaft gearing or break microswitch contact arms.
• ⚠️ Verify Supply Voltage Across Bells: Before connecting internal alarm wiring, verify whether your vessel’s telegraph alarm loop operates on 24V DC or 100V AC to prevent blowing internal relay coils.
• ❗ Seal Cable Glands Securely: When mounting the heavy unit into the bridge or ECR console cutout, ensure all bottom marine cable glands are sealed tight to block ambient moisture and salt air.
