Product Introduction & Engineering Value
Pain-Point First: Few things stall a test-cell commissioning run faster than a high-resolution sensor channel showing noise floors that swallow low-amplitude millivolt signals. High-precision testing demands hardware that does not buckle under electrical noise.
The NI PXI-6052E solves this with a highly accurate hardware architecture that features onboard temperature drift protection and advanced noise floor rejection. Using legacy E Series ASIC timing chips, this module ensures tight synchronization over the PXI backplane without exhausting your host PC resources.
Technical Specifications
- Analog Input Channels: 16 single-ended or 8 differential inputs (software selectable)
- Resolution: 16-bit analog input, 16-bit analog output
- Sample Rate: 333 kS/s maximum single-channel rate
- Analog Outputs: 2 voltage outputs with DC coupling
- Digital I/O: 8 TTL/CMOS-compatible bidirectional lines
- Counter/Timers: Two 24-bit counters with 20 MHz maximum source frequency
- Bus Interface: PXI backplane system with Real-Time System Integration (RTSI) synchronization
- I/O Connector: 68-pin male SCSI-II type connector
- Internal Buffers: 512-sample FIFO buffer with 3 scatter-gather DMA channels
- Power Requirements: +4.65 VDC to +5.25 VDC at 1 A available at I/O connector
Field Application & The “Trench” Experience
The “Trench” Story: A Legacy Test Stand Savior
We received a frantic call from an aerospace components lab where a legacy hydraulic actuator endurance test bench had locked up. The bench relied on an old PCI DAQ card that finally failed, and they could not afford to rebuild the custom LabVIEW 7 software application. We recommended migrating the test system to a PXI rack utilizing a refurbished PXI-6052E card.
Because this E Series card maintains strict backward driver compatibility with classic NI-DAQ, we slipped it into the slot, routed the 68-pin SCSI cable to their signal-conditioning block, and had the system compiling and capturing actuator strain data under an hour. The lab avoided a multi-week software rewrite.
Targeted Applications:
- Turbine Blade Deflection Analysis: High-frequency, 16-bit dynamic strain gauge sampling on developmental turbine test beds.
- Substation Battery Bank Testing: Monitoring transient DC voltage drops across isolated cells using SCXI signal conditioning front-ends.
- Automotive Engine Dynamometer Control: Synchronous capture of crank angle and fuel-injection pulse widths utilizing the dual onboard 24-bit counters.

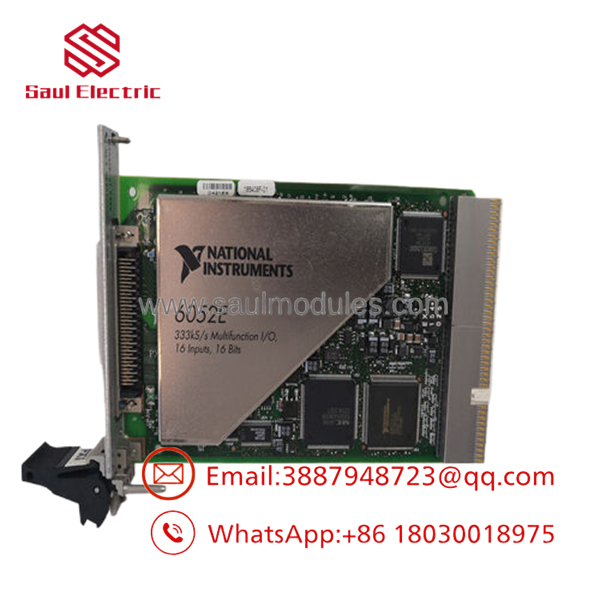

- PXI-6052E

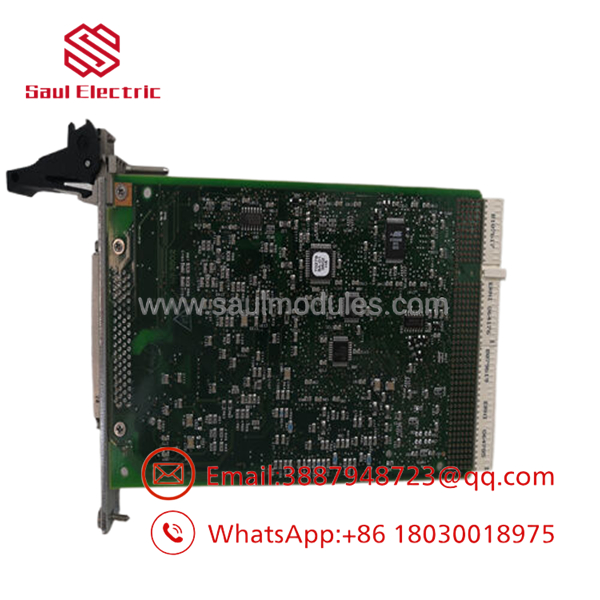

- PXI-6052E
Transparency SOP: QA & Testing
Every NI PXI-6052E unit that passes through our lab is subjected to a strict hardware test routine. We mount the card into a standard PXI chassis and launch interactive NI MAX software diagnostics. Our technicians inject precise reference voltages from an ultra-stable calibrator across all 16 analog channels to verify 16-bit linearity and confirm the onboard self-calibration circuitry operates without error. We then run a loopback test using a calibrated SH68-68-EP cable, driving the analog inputs directly from the dual onboard analog outputs while checking for waveform distortion. Finally, the card undergoes a multi-hour data-logging stress test to ensure zero thermal drift issues or DMA channel drops.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ DRIVER COMPATIBILITY HOLE: The PXI-6052E is a legacy E Series card. While it works perfectly under older NI-DAQ (Traditional) and early NI-DAQmx drivers, modern 64-bit operating systems running NI-DAQmx 19.0 or higher no longer support E Series hardware. If your plant is running Windows 10/11 64-bit, you must ensure your system design accommodates older compatible driver versions (such as NI-DAQmx 15.5) or run a legacy Windows 7 x86 test machine.
PRO TIP on Cabling: Do not use cheap, unshielded 68-pin SCSI cables. The 16-bit resolution of the makes it highly susceptible to cross-talk if you are running fast analog signals next to digital lines. Always specify a shielded SH68-68-EP cable for low-noise performance.
⚠️ DIFFERENTIAL VS SINGLE-ENDED SETUP: Setting your input channels incorrectly in software will ruin your readings. If your NI MAX is configured for Single-Ended (RSE) but your field sensors are wired Differentially, your signals will drift and likely saturate to the power rails. Double-check your hardware configuration file before launching automated scripts.
Dynamic FAQ
- Q: Can I use this card with modern NI LabVIEW versions?
- A: Yes, provided the installed NI-DAQmx driver version supports both your specific LabVIEW version and the legacy E Series hardware. In general, LabVIEW 2018 or 2019 is the sweet spot for maintaining this compatibility on legacy Windows systems.
- Q: Does the card support external hardware triggering?
- A: Absolutely. You can route external digital trigger signals directly through the 68-pin front connector (PFI lines) or synchronize measurements via the PXI backplane star trigger lines.
- Q: Is self-calibration possible without sending the card back to a lab?
- A: Yes. The features onboard self-calibration utilizing a highly stable internal voltage reference. This is completely software-controlled via NI MAX or programmatically in your code, meaning you can adjust for minor temperature-induced drifts without potentiometers or external reference meters.
- Q: Are replacement units guaranteed to be original OEM parts?
- A: Yes. All of our New Surplus and Refurbished modules are genuine National Instruments hardware. Our refurbished stock goes through a rigorous diagnostic validation, cleaning, and static testing cycle before shipping, and includes our 12-month replacement warranty.
