Description
Product Introduction
The NI cFP-AIO-600 combines four analog input channels and four analog current output channels in one Compact FieldPoint module. It is designed for industrial systems that need to read voltage or current signals from transmitters and sensors while sending current-reference signals to control valves, actuators, and other field devices.
With 12-bit resolution and a 1.7 kHz hardware update rate, the module supports established measurement and control applications built around the FieldPoint platform. Before replacing a failed unit, confirm the installed network interface, connector arrangement, channel configuration, and output-loop power requirements.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | National Instruments |
| Model | cFP-AIO-600 |
| Product family | Compact FieldPoint / FieldPoint |
| Analog inputs | 4 channels |
| Input signal types | Voltage or current |
| Input ranges | Multiple software-configurable ranges; up to ±36 V or ±24 mA with overranging |
| Analog outputs | 4 channels |
| Output signal | 0–20 mA or 4–20 mA |
| Resolution | 12-bit |
| Hardware update rate | 1.7 kHz |
| Operating temperature | −40°C to +70°C |
| Diagnostics | Output open-current-loop indication |
| Isolation | 2,300 Vrms bank-level dielectric withstand rating; not channel-to-channel isolation |
| Hot swapping | Supported under the specified FieldPoint installation procedures |
| Platform requirement | Compatible FieldPoint or Compact FieldPoint backplane and network interface |
Specifications are based on NI operating instructions and the module datasheet. Input ranges are configurable rather than a single fixed range; check the manual for the exact range options and wiring limits.
Application Scenarios & Field Experience
Where the cFP-AIO-600 fits
- Process instrumentation: Reads transmitter outputs and sends current-reference signals to process-control equipment.
- Valve and actuator control: Supplies 4–20 mA or 0–20 mA commands to compatible current-loop devices.
- Industrial test systems: Combines analog measurement and control in a distributed data-acquisition installation.
- Oilfield and equipment skids: Supports legacy FieldPoint-based monitoring and control systems where compact mixed I/O is useful.
- Retrofit maintenance: Replaces a failed module in an existing Compact FieldPoint rack when the original configuration must be retained.
NI has documented the module family for industrial measurement and control applications, including oilfield equipment requiring predictable I/O update timing.
Field troubleshooting example
Illustrative scenario, not a verified customer case: A process skid shows a valve command in the control software, but the valve position does not respond.
A technician should not assume the module is defective immediately. Check the configured output range, external loop supply, field wiring, terminal connections, and actuator input requirements. Then measure the output current under a controlled test. If the output-loop diagnostic indicates an open circuit, inspect the loop wiring and load before replacing the module.

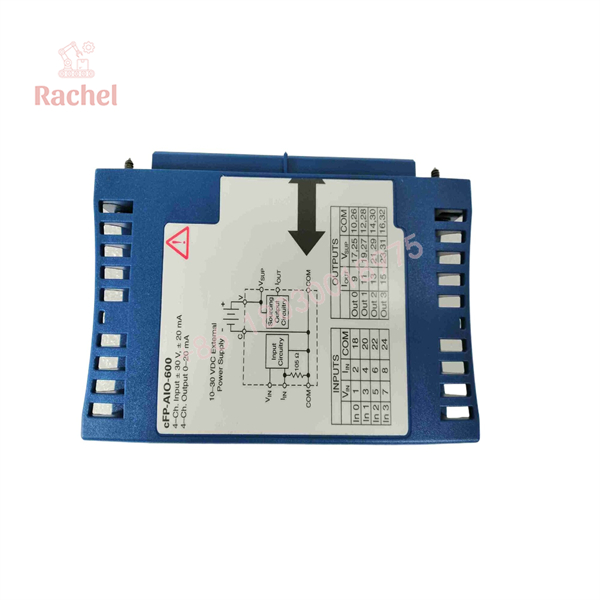

cFP-AIO-600

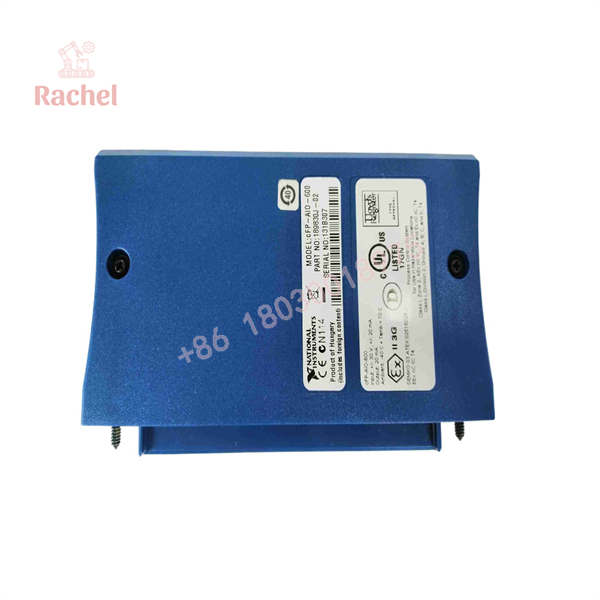

cFP-AIO-600
Quality Assurance & Testing SOP
The following is a recommended inspection procedure for a used, refurbished, or surplus cFP-AIO-600. It does not imply that any particular unit has already passed these tests.
- Visual inspection: Check the housing, terminal interface, contacts, labels, and mounting features for damage, corrosion, or signs of overheating.
- Electrical inspection: Verify that the module is suitable for the intended backplane and that field wiring and external loop power comply with the manual.
- Input-channel test: Apply known voltage and current signals within the selected ranges. Compare the reported values with calibrated test equipment.
- Output-channel test: Command representative 0–20 mA and 4–20 mA values, then measure each output with a suitable meter and load.
- Diagnostic test: Confirm that the status indicators and open-loop diagnostics respond as expected under controlled test conditions.
- Configuration check: Verify channel ranges, software scaling, network-module compatibility, and the host application’s configuration.
- Final QC record: Document the unit’s condition, test equipment, measured results, faults found, and final disposition.
Acceptance requirement: Do not return the module to service solely because it powers up. Validate every channel used in the application and confirm that the connected equipment responds safely.
Veteran’s Tech Trap Guide
- ⚠️ Input and output are not interchangeable. The four input channels accept configured voltage or current signals; the four output channels provide current. They are not four voltage outputs.
- ⚠️ Check the output-loop power supply. A correct software command does not guarantee the required current will reach the load. Confirm the external supply, wiring polarity, and load resistance against the manual.
- ⚠️ Do not assume channel-to-channel isolation. The specified bank-level isolation rating does not mean every channel is individually isolated. Review the installation’s grounding and isolation requirements before wiring.
- ⚠️ Hot-swappable does not mean risk-free. Although the module supports hot swapping, follow the manufacturer’s procedures and assess the consequences of losing the affected input and output signals during removal.
Frequently Asked Questions
Q1: Can the NI cFP-AIO-600 be hot-swapped?
Yes. NI lists hot swapping as a supported feature. Follow the relevant FieldPoint operating instructions and plant procedures, especially where loss of an output could affect a control loop.
Q2: Does this module provide both analog input and analog output?
Yes. It has four configurable voltage/current input channels and four current output channels. The outputs support 0–20 mA and 4–20 mA operation.
Q3: Can I replace it with a newer CompactRIO module directly?
Not as a simple plug-in replacement. NI’s migration guidance states that there is no direct single-module replacement for the cFP-AIO-600; a migration may require multiple CompactRIO C Series modules and changes to the hardware and application configuration.
Q4: Will it work with my existing FieldPoint controller?
Compatibility depends on the installed FieldPoint or Compact FieldPoint platform, network interface, backplane, software version, and application configuration. Confirm the exact hardware combination before purchasing.
Q5: Is the cFP-AIO-600 discontinued?
It is a legacy product. Check NI’s current support and migration information and confirm the seller’s actual stock status. Do not assume that a listing marked “available” means new factory production.
Q6: Can I buy a used or surplus unit?
Yes, specialist industrial-automation suppliers may list surplus or refurbished units. Ask for the exact model label, condition, test report, warranty terms, and return policy. A seller’s general warranty statement is not proof that a specific unit has been tested.
Q7: What should I provide when requesting a replacement quote?
Provide the model cFP-AIO-600, a photo of the nameplate, the installed platform or backplane model, the required quantity, preferred condition (new surplus, used, or refurbished), and your delivery location. If the module is replacing a failed unit, include the fault symptoms and the channels used.
