3. Product Introduction & Engineering Value
Pacific Scientific’s VM series has a long history in motion control, and the low-inertia rotor design is the whole point — these motors were built to accelerate and reverse direction fast without the rotor mass fighting the control loop, which matters a lot in indexing, pick-and-place, and web-handling equipment.
The 33VM52-000-4 is a low-voltage DC unit (18–36 VDC rated) rated for 3.1–5.7 A continuous current, with no forced-air cooling and no factory-attached tachometer or optical encoder — meaning feedback, if used, was typically handled by a separate device mounted or specified at the system level rather than built into this exact motor variant.
4. Technical Specifications
Descriptive/verified parameters:
- Motor type: Permanent Magnet DC (PMDC), brush-type
- Rated voltage: 18–36 VDC
- Rated current (continuous): 3.1–5.7 A
- Cooling: No provision for forced-air cooling (natural convection only)
- Feedback device: No analog tachometer attached; no optical encoder attached (this exact variant)
- Series/family: VM Series, low-inertia design class
- Manufacturer lineage: Originally Pacific Scientific; later marketed under Honeywell and, at various points, Danaher/Pacific Scientific Motion Control branding
- Product status: Discontinued/legacy — sourced almost exclusively as used/surplus or repaired stock in the current market
Not independently verified — flagging rather than guessing: peak torque, rated speed (RPM), rated power (kW/HP), physical dimensions, and weight for this specific -000-4 suffix. Numbers exist online for adjacent suffixes (e.g., -000-29, -000-20) in this family, but suffix changes on Pacific Scientific VM-series motors typically denote different windings, connectors, or feedback options — so torque/speed figures from a different suffix should not be assumed to carry over. If you have the motor’s actual nameplate or a PDF datasheet, I’ll fill these in accurately instead.

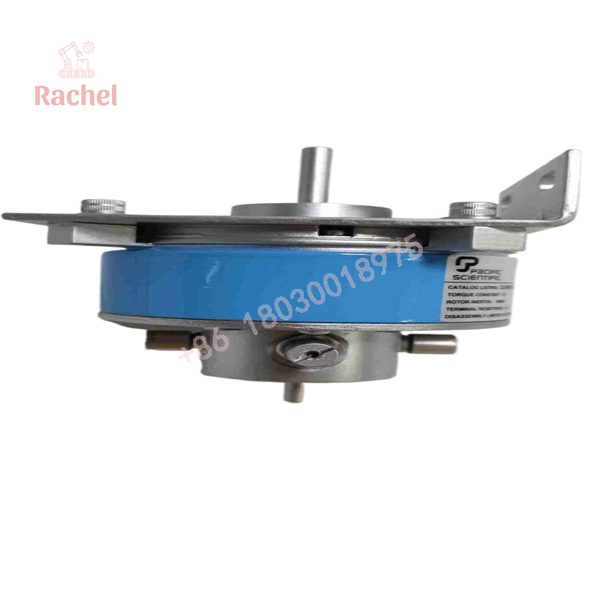

33VM52-000-4

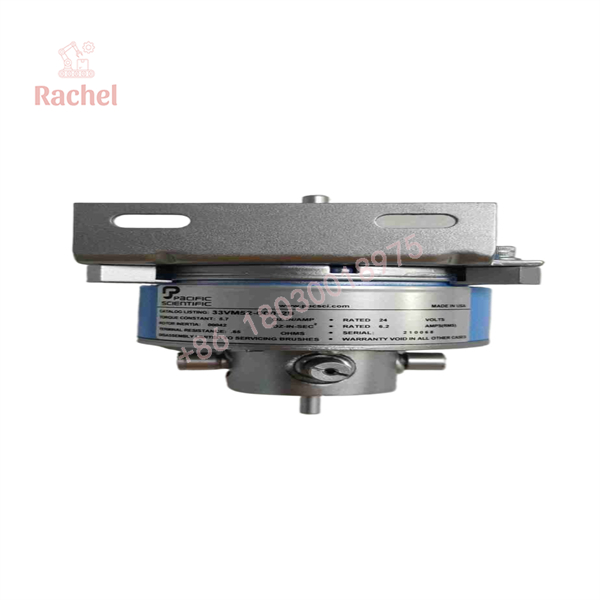

33VM52-000-4
5. Field Application & The “Trench” Experience
Illustrative scenario — not a specific reported incident:
A common situation with legacy Pacific Scientific VM-series motors: a facility running an old indexing table or labeling machine needs a replacement after decades of service, and the tech orders based on the base part number alone — “33VM52” — without checking the full suffix. Because these suffixes commonly indicate different winding configurations or feedback provisions, a motor that looks right on the shelf can turn out to have the wrong voltage/current characteristics for the drive it’s paired with, or lack a tachometer the original system depended on for velocity feedback. Nothing wrong with either motor — it’s a suffix-matching problem that a careful nameplate comparison would catch.
Specific application scenarios:
- Servo-driven indexing tables on legacy packaging lines, where fast reversal and low rotor inertia matter more than raw horsepower
- Web-tension control axes on older converting or laminating equipment, where PMDC servos were the standard before brushless AC servo retrofits became common
- Retrofit/repair support for machine tools still running original 1980s–1990s Pacific Scientific motion systems where full system replacement isn’t in the budget
6. Transparency SOP: QA & Testing
Generic verification framework for a used/refurbished brush-type DC servomotor like this:
- Visual and mechanical inspection — brush wear, commutator condition, bearing play, connector/lead condition
- Insulation resistance (megohm) test — confirms winding insulation hasn’t degraded from age or moisture
- No-load run test — confirms free rotation, checks for unusual noise, vibration, or brush arcing
- Nameplate/suffix verification — confirm exact part number and suffix match the listing before shipment, given how suffix-sensitive this family is
(General framework — substitute your actual documented process where it differs.)
7. The Veteran’s Tech Trap Guide
⚠️ The suffix is not cosmetic. On Pacific Scientific VM-series motors, the trailing suffix (-000-4, -000-20, -000-29, -008-4, etc.) commonly denotes different windings, connector types, or feedback device provisions. Ordering “a 33VM52” without matching the full part number is asking for a voltage/current mismatch or a missing tachometer your drive expects.
⚠️ Brush-type PMDC means brush wear is a real maintenance item, unlike brushless replacements. If you’re buying used stock, ask specifically about brush condition — it’s the most common wear item on motors like this after years of service.
PRO TIP: Because this motor has no forced-air cooling, don’t assume it can be pushed harder in a retrofit application than the original duty cycle called for. Continuous current ratings on convection-cooled DC servos are usually the real ceiling, not a conservative estimate.
⚠️ ESD and connector handling: If your feedback device connectors are exposed during any diagnostic work, treat them with standard ESD precautions — encoder and tachometer interfaces on legacy systems are not always as protected as modern equivalents.
8. Dynamic FAQ
Q: Does this motor include a tachometer or encoder?
No — per verified listings for this exact suffix, no analog tachometer and no optical encoder are attached. Confirm what your system’s feedback loop expects before ordering.
Q: What’s the rated voltage and current?
18–36 VDC rated voltage, 3.1–5.7 A rated continuous current, consistent across multiple independent sources for this part number.
Q: Is this motor still in production?
No — this is a discontinued/legacy Pacific Scientific part, sourced today primarily as used, refurbished, or repaired stock.
Q: What warranty applies to a used unit?
Warranty terms vary by seller — one verified listing shows a 30-day warranty on used stock; confirm the specific term with whoever you’re purchasing from.
Q: Can I get exact torque and speed specs for this suffix?
Not from consistently verified public sources — request the nameplate photo or original Pacific Scientific datasheet for the -000-4 suffix specifically, since adjacent suffixes in this family carry different ratings.
