Description
Product Introduction

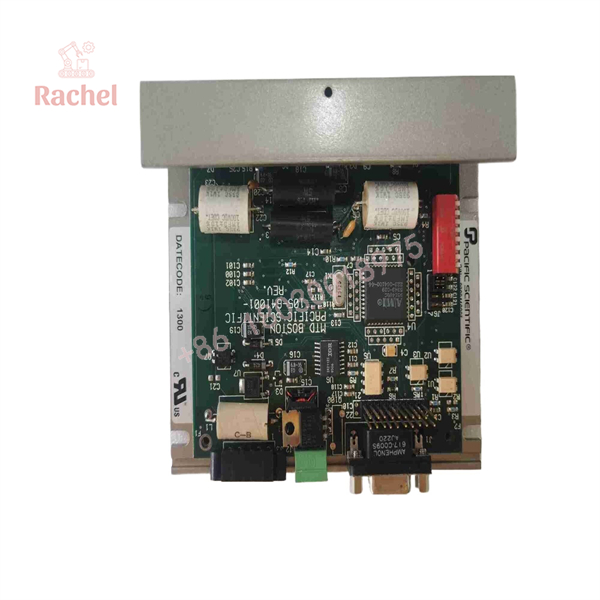

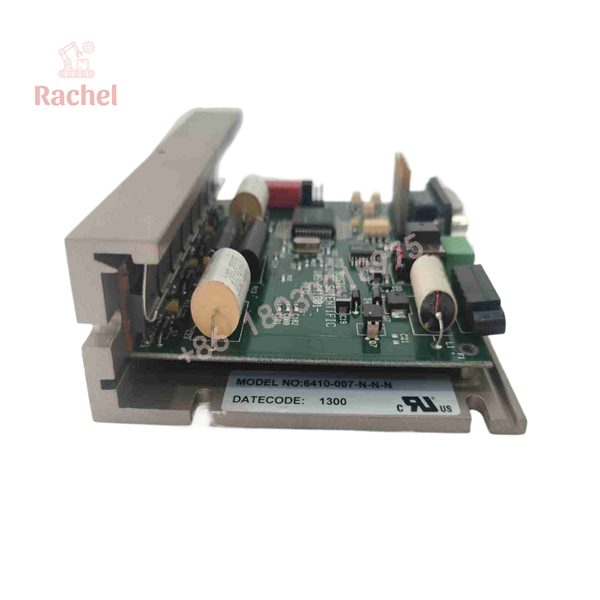

The Pacific Scientific 6410-009-N-N-N is a compact, high-efficiency microstepping drive built to control two-phase hybrid stepper motors in demanding motion control environments. Operating off a flexible 24 to 75 VDC bus, this drive acts as the muscle between your indexer or PLC and the physical motor.
Unlike basic unipolar or poorly regulated stepper controllers, the 6410-009-N-N-N uses a high-frequency MOSFET bipolar PWM chopper design that squeezes maximum torque out of low-inductance motors without running them boiling hot. Its sub-module architecture fits seamlessly into tight control enclosures while providing reliable optical isolation to protect upstream control cards from electrical noise.
Key Technical Specifications
| Parameter | Specification |
| Input Supply Voltage | 24 to 75 VDC nominal |
| Continuous Current Output | 5.0 A RMS (7.1 A Peak) |
| Drive Technology | Bipolar PWM Chopper (20 kHz PWM frequency) |
| Step Resolution | Selectable microstepping (Full step up to 50,000 steps/rev) |
| Control Logic Interface | Optically isolated Step, Direction, and Enable inputs |
| Cooling Requirement | Natural convection (Chassis temp must stay below 60°C) |
| Protection Features | Over-temperature, phase-to-phase short circuit, over-voltage |
| DIP Switch Settings | Adjustable phase current, idle current reduction, and resolution |
| Operating Temperature | 0°C to 50°C ambient |
Application Scenarios & The “Trench” Experience
It’s 2:15 AM on a Sunday, and line 3 goes dark. The pick-and-place gantry is sitting motionless because a 20-year-old stepper drive threw a dead short, taking down the entire packaging cell. Finding a drop-in replacement for legacy Pacific Scientific hardware isn’t easy, and every hour of downtime bleeds money. Having an exact 6410-009-N-N-N swap on the shelf gets the line back up before the morning shift even arrives.
- Packaging & Labeling Machinery – High-speed indexing belt control – High peak current torque keeps bottle feed timing locked in without dropping steps.
- Semiconductor Handling – Precision wafer gantry positioning – Microstepping capability eliminates mechanical resonance during micro-positioning steps.
- CNC & Milling Retrofits – X/Y axis feed drives – Bipolar chopping delivers high torque at higher RPMs where standard drives stall out.
- Automated Medical Centrifuges – Variable speed liquid separation – Thermal efficiency prevents heat soak into surrounding sensitive lab enclosures.
6410-009-N-N-N
6410-009-N-N-N
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual Pacific Scientific racks. Every unit goes through our five-stage bench validation process:
- Inbound Inspection: Visual audit for physical casing integrity, PCB corrosion, pin damage, and OEM label verification.
- Live Rig Testing: Mounted to a test chassis, hooked up to a 48VDC power supply and paired with a Pacific Scientific Powerpac motor to run full speed/direction profiles.
- Electrical Parameter Checks: High-potential insulation testing and phase-to-phase short verification across the power MOSFET stage.
- Firmware & Switch Audit: Rotary and DIP switch resistance checks to ensure current-limit and microstep settings toggle clean.
- Final QC & Anti-Static Packaging: Cleaned, sealed in ESD-shielded bags, and packed with custom foam to survive rough freight transit.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ DIP Switch Misconfigurations: Don’t assume the replacement drive comes pre-configured. Take a clear photo of the DIP switch bank on the old 6410 card before pulling it out. Setting the phase current switches too high will cook your motor windings in under 10 minutes.
- ❗ Floating Grounds and Noise: These drives use optically isolated inputs, but if you tie signal ground directly to power ground right at the drive terminals, you’ll inject motor chopping noise straight back into your PLC’s pulse train card. Keep signal grounds isolated.
- ⚠️ DC Power Supply Inrush & Sizing: If you run multiple 6410 drives off one transformer/rectifier bank, verify your bus capacitors can handle the regenerative energy when motors decelerate. A sudden dump of back-EMF can blow the output transistors on a drive configured without an external shunt.
- ❗ Hot-Plugging Motor Leads: Never disconnect motor phase leads (A, A\setminus, B, B\setminus) while the 24–75 VDC power bus is live. The inductive kickback will instantly blow the internal MOSFET bridge.
Frequently Asked Questions (FAQ)
Q: Is the 6410-009-N-N-N hot-swappable?
A: No. Pulling this drive while powered will pull an arc on the DC bus connector and damage the backplane or drive terminals. Always drop main DC power before pulling the terminal blocks.
Q: Can I use this drive with non-Pacific Scientific stepper motors?
A: Absolutely. As long as it is a standard 2-phase hybrid stepper motor (4, 6, or 8 lead) rated within the drive’s current capability (up to 5A RMS / 7.1A Peak) and safe for up to 75VDC bus levels.
Q: What does the “N-N-N” suffix stand for in the model code?
A: The trailing letters represent factory-designated options such as specific connector styles, heatsink configurations, and custom factory switch defaults. “N-N-N” indicates standard options without custom non-standard modifications.
Q: How do I handle idle current reduction?
A: The 6410 series features an automatic idle current reduction setting via DIP switches. Enabling this drops the motor current by 50% when no step pulses are detected for more than 50 milliseconds, significantly cutting down motor heat while stationary.
Q: Is this drive brand new or surplus, and what is the warranty?
A: Because the 6410 series is a mature product line, these are supplied as high-grade New Surplus or fully bench-tested Refurbished stock. Every unit includes a full 12-month warranty from the date of purchase.
