AK-BX556M DISCO Pack Driver Stepper Motor Drive

Description

Product Introduction

The AK-BX556M is a Pack Driver stepper-motor drive used in DISCO semiconductor dicing and cutting equipment, commonly associated with Y-axis or Z-axis motion stages. It converts motion-command signals into controlled phase currents for a two-phase hybrid stepper motor, supporting repeatable positioning in a precision cutting environment.

Its value is not general-purpose motion control; it is equipment-specific. In a DISCO dicer, the AK-BX556M provides the known drive behavior, connector layout, and axis integration required to restore an existing motion axis without redesigning the machine’s drive architecture. Verify the exact motor current setting, connector pinout, and machine wiring against the OEM documentation before installation.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

A dicing machine faults out mid-lot. The Z-axis will not settle, the operator sees a drive alarm, and production is down. The first instinct is to blame the stepper motor; in practice, the failed item is often the Pack Driver. With an obsolete DISCO drive, waiting on a factory repair can cost more downtime than the replacement itself.

• Semiconductor manufacturing – DISCO dicing saw Y-axis feed control – Required because the drive is an OEM Pack Driver matched to the machine’s stepper axis.
• Semiconductor back-end processing – DISCO cutter Z-axis depth positioning – Required for repeatable blade-position motion and restoration of the original drive architecture.
• Legacy equipment maintenance – Replacement of a failed AK-BX556M after drive alarm, loss of phase current, or erratic axis motion – Required because the exact OEM model avoids uncertain retrofit work.
• Semiconductor spare-parts programs – Critical-spares stocking for DISCO dicing equipment – Required because the part is legacy and availability is inconsistent across suppliers.
• Repair depots – Bench diagnosis of dicing-machine axis faults – Required to separate motor, cable, encoder/reference, and Pack Driver failures.

Field case study: A packaging house running an older DISCO dicer lost its Z-axis during a wafer lot. The axis stalled, the machine stopped, and the lot was held. Maintenance swapped the suspected motor first—no improvement. A tested AK-BX556M was installed, the axis powered normally, and the machine returned to production the same shift. The real cost was not the drive; it was the hours of held production and operator idle time.

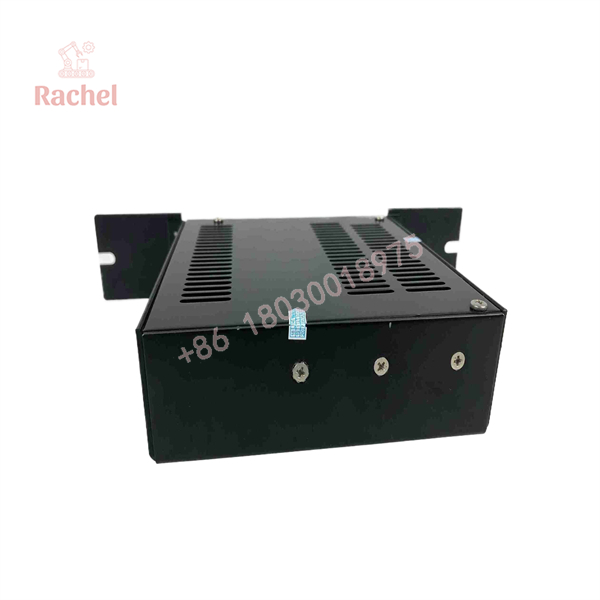

AK-BX556M

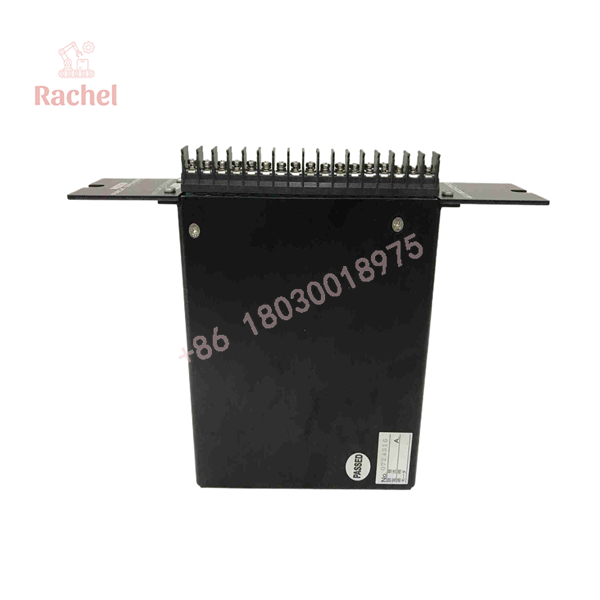

AK-BX556M

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on the appropriate Pack Driver/DISCO setup where possible.

• Inbound inspection: Verify model marking, serial number, connector condition, PCB damage, burnt components, and signs of prior repair.
• Anti-counterfeit check: Compare label format, construction, and hardware against known OEM examples; reject units with inconsistent markings.
• Live rig testing: Apply the specified 24 VDC supply, confirm power-up behavior, and exercise phase-output/control signals with a compatible stepper load or test rig.
• Communication and command checks: Verify input-command response and axis-drive behavior; do not assume every surplus unit has retained its original configuration.
• Electrical checks: Measure supply polarity protection, output phase continuity, and insulation where the unit’s construction permits safe testing.
• Firmware/configuration verification: Record any identifiable hardware revision and configuration; do not claim firmware compatibility without OEM documentation.
• Final QC and packaging: Photograph the actual unit, discharge static safely, protect connectors, and pack in anti-static material.

The Veteran’s Tech Trap Guide

• ⚠️ Do not assume it is a generic stepper drive. The AK-BX556M is tied to DISCO machine architecture and Pack Driver usage; a visually similar third-party drive may not preserve limit, alarm, enable, or command behavior.
• ❗ Take photos before removal. Photograph connector orientations, wire numbers, DIP/jumper positions, grounding, and the old unit’s label. Surplus drives can arrive with different configuration settings.
• ⚠️ Check the motor current setting. A drive set too high can overheat the stepper; too low and the axis loses torque under acceleration. Confirm against the DISCO axis documentation and motor nameplate.
• ❗ Inspect the cable and connector before condemning the drive. On dicing equipment, flexing cable bundles and contaminated connectors cause intermittent axis faults that look exactly like a bad Pack Driver.
• ⚠️ Use ESD precautions. These are legacy power-electronics boards. A wrist strap and grounded bench are cheaper than a second failed drive.

Frequently Asked Questions

Q: Is the AK-BX556M hot-swappable?
A: No. Treat it as a powered-off replacement. Disconnect machine power, verify DC bus/supply decay, and follow DISCO lockout procedures before removing connectors.

Q: Can I flash or change its firmware?
A: We do not recommend field firmware changes. Public listings identify it as a DISCO Pack Driver, but do not provide a verified field firmware-update procedure. Use the OEM configuration and documentation for the specific machine.

Q: Is this the same as a normal two-phase stepper drive?
A: Electrically it drives a two-phase hybrid stepper motor, but it is an OEM Pack Driver intended for DISCO equipment—not a drop-in general-purpose drive.

Q: Does it replace AK-BX511?
A: Not automatically. They belong to the same Pack Driver family, but axis requirements, connectors, current range, and machine integration can differ. Match the exact installed model before ordering.

Q: What condition is available?
A: Suppliers commonly offer it as refurbished or new surplus; availability changes frequently because it is a legacy semiconductor-equipment spare.

Q: Why is surplus stock cheaper than direct OEM supply?
A: Surplus and refurbished channels source retired machine spares, decommissioned equipment, and excess inventory. The trade-off is variable cosmetic condition and limited factory support, which is why functional testing matters.

Q: What warranty should I expect?
A: For a tested refurbished or surplus unit, a 12-month functional warranty is reasonable. Confirm whether it covers only replacement or also labor, and whether it excludes misuse, incorrect supply voltage, or connector damage.
