Description
Product Introduction & Engineering Value
A failed safety input module can stop an entire machine cell even when the main controller remains healthy. The PILZ 301130 restores field signal acquisition by providing 16 digital input channels within the PSS SafetyBUS p architecture.
Built for legacy PILZ PSS installations, the module helps maintenance teams keep existing safety systems operational without replacing complete control cabinets. It is commonly sourced as a lifecycle spare for installed machinery and specialized automation equipment.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | PILZ GmbH & Co. KG |
| Model Number | 301130 |
| Product Name | PSS SB DI16 |
| Module Type | Safety digital input module |
| System Platform | PILZ PSS Safety PLC |
| Communication Interface | SafetyBUS p |
| Supply Voltage | 24 VDC |
| Number of Digital Inputs | 16 |
| Test Pulse Outputs | 4 |
| Protection Rating | IP20 |
| Operating Temperature | 0 to +60 °C |
| Connection Type | Plug-in screw terminal / cage clamp terminal |
| Dimensions (H × W × D) | Approx. 140 × 170 × 65 mm |
| Weight | Approx. 448 g |
The manufacturer specifications identify the 301130 as a PSS SB DI16 module with 24 VDC supply, 16 digital inputs, four test pulse outputs, and IP20 housing protection.

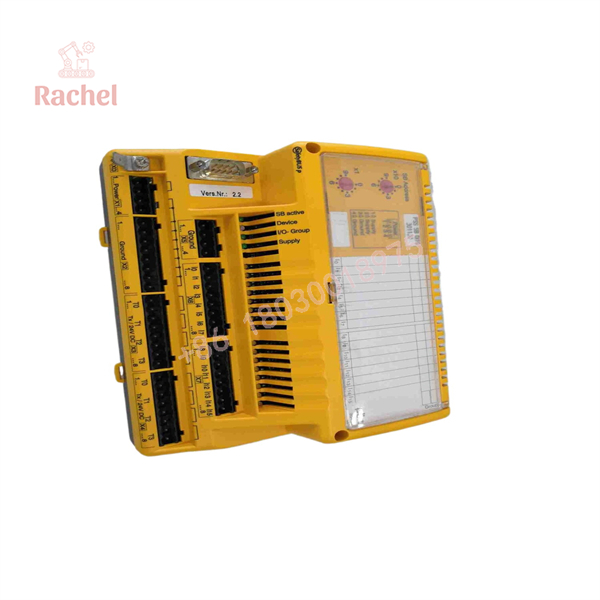

301130

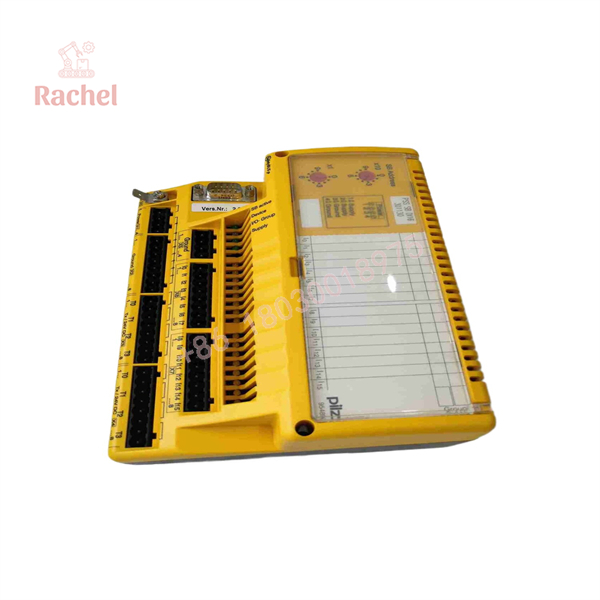

301130
Field Application & The “Trench” Experience
A packaging machine manufacturer operating a high-speed filling line experienced intermittent safety faults after more than a decade of operation. Operators reported random safety circuit interruptions, but diagnostics showed the central PSS controller was still functioning normally.
During troubleshooting, the maintenance engineer traced the problem to the aging digital input module responsible for monitoring multiple emergency stops, access doors, and light curtain signals. A tested PILZ 301130 replacement was installed, the SafetyBUS p communication was checked, and each safety input channel was verified before returning the machine to production.
Common application scenarios include:
Machine safety monitoring
- Emergency stop pushbutton circuits
- Safety gate switches
- Two-hand control monitoring
Industrial production equipment
- Packaging machines
- Printing equipment
- Automated assembly cells
Specialized automation systems
- Legacy PILZ PSS installations
- Retrofit safety cabinets
- Existing SafetyBUS p networks
Transparency SOP: QA & Testing
A professional inspection process for PILZ 301130 replacement units should include:
1. Hardware inspection
- Check enclosure condition
- Inspect terminal connections
- Review PCB condition
- Verify product label and identification
2. Electrical testing
- Confirm 24 VDC power behavior
- Check input channel response
- Verify test pulse output operation when applicable
3. System validation
- Confirm SafetyBUS p compatibility
- Verify communication with the PSS controller
- Record final inspection results
For refurbished units, buyers should request information regarding previous usage condition, test scope, and warranty coverage.
The Veteran’s Tech Trap Guide
⚠️ PRO TIP: Verify SafetyBUS p configuration before replacement.
The module may physically install correctly but fail to communicate if the network addressing or system configuration does not match the existing project.
⚠️ Do not ignore input channel mapping.
When replacing a safety input module, incorrect terminal assignment can create false safety trips or prevent machine restart.
⚠️ Watch firmware and hardware versions.
Legacy PILZ PSS systems may contain version-specific compatibility requirements. Confirm the replacement module matches the existing installation documentation.
Dynamic FAQ
Q1: What is the PILZ 301130 used for?
The PILZ 301130 is a PSS SB DI16 safety digital input module used with PILZ PSS safety PLC systems for acquiring digital safety signals through SafetyBUS p.
Q2: How many inputs does the PILZ 301130 provide?
The module provides 16 digital input channels and four test pulse outputs.
Q3: Is the PILZ 301130 still available as a new production item?
The official PILZ product page lists the 301130 as no longer available as a current product, so replacement demand is typically handled through surplus and refurbished automation inventory channels.
Q4: Can the 301130 replace another PILZ digital input module?
Only when the replacement matches the existing PSS system configuration, SafetyBUS p network setup, and application requirements. Engineers should confirm compatibility before installation.
Q5: What should be provided when requesting a PILZ 301130 quotation?
Recommended information:
- Full part number: 301130
- Existing PSS controller model
- Current module version
- Application type
- Required condition: New Surplus or Refurbished
Q6: Are refurbished PILZ 301130 modules tested before shipment?
Testing procedures depend on the supplier, but professional automation spare-part providers generally perform visual inspection, electrical checks, and functional verification before shipment.
Q7: What warranty is normally available for a PILZ 301130?
Warranty terms depend on supplier policy and stock condition. Confirm warranty duration, return conditions, and test documentation before purchase.
