Pilz 773602 PNOZ m1p Safety Controller Base Unit

Description

Product Introduction

The Pilz 773602 (PNOZ m1p) is a configurable safety controller base unit belonging to the flagship PNOZmulti family. Built to bridge the gap between hardwired safety relays and complex safety PLCs, it manages emergency stops, safety gates, light curtains, and two-hand controls across industrial production lines.

Unlike hardwired safety relays that require extensive panel wiring to change logic, the 773602 processes customizable safety functions configured via the PNOZmulti Configurator software tool. Its integrated chip card slot stores system parameters directly on-module, allowing rapid hardware replacement without connecting a programming PC in the field.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: It’s 2 AM on an automated automotive assembly line. A forklift bumps a perimeter fence, tripping an interlock safety gate. After clearing the area, the cells refuse to reset. Diagnostic LEDs on the old PNOZ m1p reveal an internal semiconductor fault on output 2. Production is halted, car bodies are backed up, and every minute of downtime costs thousands in lost throughput.

In our field experience, keeping a bench-tested Pilz 773602 in your maintenance store saves the shift. Pull the old module off the DIN rail, pop the original SIM-style smart card out of the failed unit, insert it into the fresh 773602, snap the plug-in terminal blocks home, and power up. System logic restores automatically in under five minutes.

• Automotive Stamping & Welding Cells – Interlocks light curtains and perimeter safety gates with dual-channel shutdown logic.
• Packaging Machinery – Coordinates multiple E-stop buttons and door switches across high-speed cartoning lines.
• Material Handling & Palletizers – Monitors mute sensors and light grids for continuous conveyor feed zones.
• Metal Forming & Power Presses – Manages two-hand controls and safety valves to comply with strict press-safety standards.

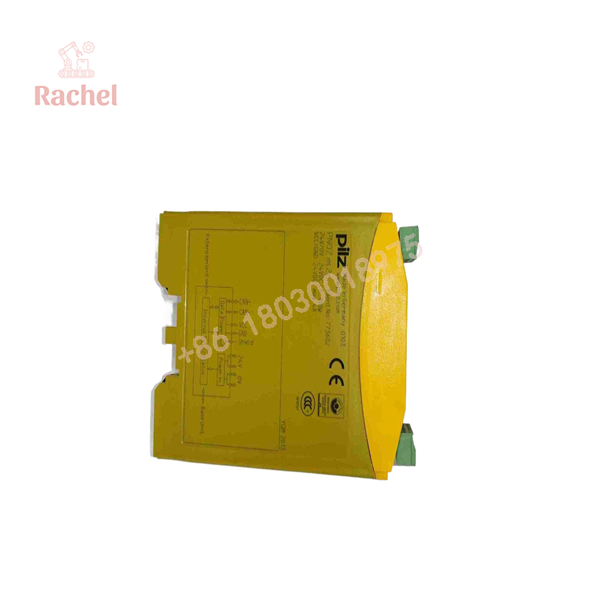

773602

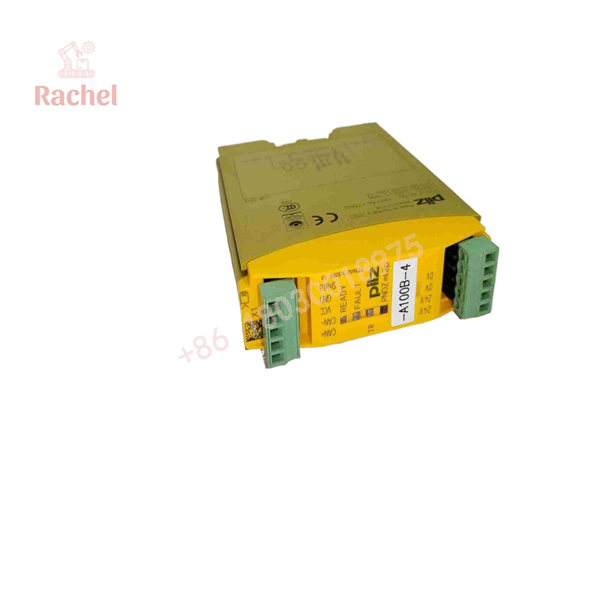

773602

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Pilz test rigs. Here is how we verify every 773602 module before it leaves our facility:

1. Inbound Visual & Mechanical Inspection: Check DIN rail latches, terminal housing clips, card slot contacts, and verify genuine Pilz serial labels and tamper seals.
2. 24VDC Power-On Self-Test: Power up the base unit to verify boot sequence, internal self-diagnostics, and green POWER/RUN LED status.
3. Smartcard Reader Verification: Insert a test memory card to confirm read/write function and parameter upload integrity.
4. Input & Output Channel Validation: Exercise all 20 safe inputs and actuate semiconductor/relay outputs using a dedicated test rig to verify response time and cross-circuit monitoring.
5. Final Clean & ESD Packaging: Treat connection points with contact cleaner and vacuum-seal the card inside anti-static shielding with fresh desiccant.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Don’t Forget the Memory Card! The 773602 stores its safety logic on a removable smart card (chip card). If you plug in a brand-new surplus base unit without inserting your plant’s programmed chip card, the module will sit in a fatal configuration error state (FAULT).
• ❗ Never Pull Terminal Blocks Under Load! While the plug-in screw terminals are convenient, yanking live 24V power or 6A relay load terminals can cause arc flashes across adjacent pins, damaging onboard optocouplers.
• ⚠️ Watch Out for Test Pulse Wiring! When wiring dual-channel mechanical switches, ensure you use the dedicated test pulse outputs (T0–T3) for cross-circuit detection. Wiring inputs directly to static 24VDC bypasses short-circuit monitoring and drops your safety rating below SIL 3.
• ❗ Match Software Version Configurations: If creating a new program, verify your PNOZmulti Configurator software version matches the hardware revision printed on the side label of the 773602. Upgraded hardware revisions may reject project files compiled on very old software builds. Trust me.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the Pilz 773602 hot-swappable on the DIN rail?

A: No. You must isolate 24VDC supply power and output load circuits before removing or installing the base unit to prevent electrical damage and unexpected machine movement.

Q: Does this unit come with plug-in terminal blocks included?

A: Yes, our New Surplus and Refurbished 773602 units are supplied complete with the requisite plug-in terminal sets ready for panel mounting.

Q: Can I expand the I/O capacity of the 773602 base module?

A: Yes. The PNOZ m1p supports side-by-side expansion modules (such as PNOZ m EF 8DI4DO or fieldbus modules like PROFIBUS/PROFINET) connected via the right-hand side backplane bus connector.

Q: What warranty coverage do you provide on surplus Pilz modules?

A: We provide a full 12-month replacement warranty from the invoice date on all New Surplus and Refurbished Pilz hardware.

Q: Why buy surplus Pilz modules instead of ordering through factory distribution?

A: Factory lead times for safety controllers can stretch into several weeks. We ship fully bench-tested, genuine Pilz surplus hardware same-day to resolve critical plant safety downtime immediately.
