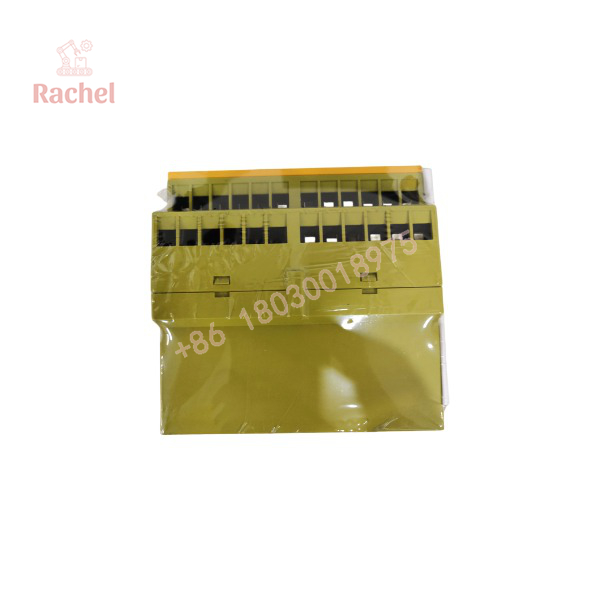

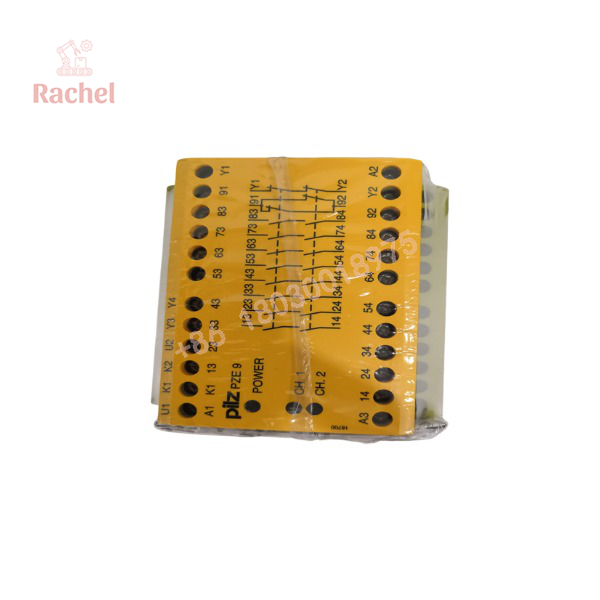

Pilz 774150 PZE 9 Safety Relay Expansion Module

Description

Product Introduction

The Pilz 774150 (PZE 9 24VDC 8n/o 1n/c) is a DIN-rail mounted safety relay contact expansion module designed to scale up the switching capacity of base safety evaluation units. Operating on a 24V DC control voltage, it is widely utilized across automated manufacturing cells, stamping lines, and packaging machinery to control multiple safety-critical actuators simultaneously.

What sets the PZE 9 apart from standard control relays is its positively guided force-led contacts, ensuring highest-level functional safety compliance. Rather than running redundant safety evaluation hardware, integrating the Pilz 774150 allows engineers to multiply available N/O safety circuits while looping back diagnostic feedback (Y1-Y2) directly to the master PNOZ unit. This layout maintains SIL 3 / Performance Level e integrity without cluttering panel real estate.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: It is 2:15 AM on a high-throughput automotive stamping line. A secondary contact on an aging expansion relay welded shut during a emergency stop sequence. The master safety controller detected the feedback mismatch and locked down the line, costing $3,200 per minute in idle overhead. Scrambling to bypass the safety system is an absolute non-starter for compliance reasons. Dropping in a pre-tested, direct-fit OEM replacement module gets all 8 safety zones back online in under twenty minutes.

• Automotive Stamping & Body-in-White: – Multi-Axis Servo Stop Circuits – Required to simultaneously isolate power to multiple servo drives and hydraulic drop-locks when a light curtain is tripped.
• Packaging & Conveying Systems: – Zone E-Stop Expansion – Used to interlock lengthy conveyor line contactors where a standard master relay lacks sufficient physical pole count.
• Robotic Welding Cells: – Safety Gate & Peripheral Interlocks – Provides dedicated, force-guided safety outputs to multiple weld timers, robot motion enables, and safety fences from a single master relay.
• Plastics Injection Molding: – Hydraulic Valve & Motor Isolation – Guarantees positive separation of high-power motor contactors without dropping safety performance ratings.

774150

774150

Transparency SOP: Quality Assurance & Testing

We do not just ship boxes; we test them on actual Pilz test rigs. Every unit passes a 5-step verification process before leaving our warehouse:

1. Inbound Physical Inspection: Verification of anti-counterfeit details, housing integrity, terminal block screw threads, and original factory seals.
2. Power-On & Logic Handshake: Unit mounted on a DIN chassis powered at 24.0 VDC to verify control coil energization and LED state indicators.
3. Contact Resistance & Megger Test: Insulation resistance testing between isolated safety poles and contact resistance verification across all 8 N/O contacts using low-impedance meters.
4. Feedback Loop Verification: Simulation of feedback loop continuity (Y1-Y2) to ensure the auxiliary monitoring circuit drops instantly upon contact state changes.
5. Anti-Static (ESD) Packaging: Sealed in anti-static protective bags with customized foam padding to prevent mechanical shock during transit.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Forget the Y1-Y2 Feedback Loop and You Will Lock Out: To maintain PL e / SIL 3 ratings, the N/C auxiliary contact (Y1-Y2) must be wired in series with your master relay’s reset/start feedback circuit. If you land your wires on the 91-92 terminals instead or leave Y1-Y2 floating, your base safety unit will fail its startup self-test every single time.
• ❗ Watch Out for Inrush Current on Heavy DC Loads: The N/O contacts are rated for 8A resistive, but inductive loads (like large brake coils or hydraulic solenoids) can create massive arc strikes upon drop-out. Always install appropriate arc suppressors (varistors or flyback diodes) across external inductive loads to prevent premature contact welding.
• ⚠️ Do Not Mix Single and Dual-Channel Drive Logic: If your primary relay drives the expansion module via dual channels (U_1/K_1 and U_2/K_2), ensure the short-circuit detection jumper settings match. Mismatched channel resistance between U_1 and U_2 can cause internal channel skew and trip cross-fault monitoring inside the base unit.

Frequently Asked Questions (FAQ)

Q: Can I use the Pilz 774150 as a standalone safety relay?

A: No. The PZE 9 is strictly a contact expansion module. It lacks internal reset logic, E-stop monitoring inputs, and time-delay processors. It must be driven by a master safety controller (such as a Pilz PNOZ X, PNOZ sigma, or safety PLC output card).

Q: Is the 774150 module hot-swappable?

A: Absolutely not. Pulling terminal connectors or dismounting the unit while 24V DC coil power or main 230V line power is applied to the output contacts risks severe arcing, equipment damage, and immediate loss of safety function. Always isolate power before servicing.

Q: What is the difference between terminals Y1-Y2 and 91-92?

A: Terminals 91-92 represent the standard 1 N/C auxiliary contact used for external signal/PLC input. Terminals Y1-Y2 are dedicated feedback contacts designed specifically to be wired into the base unit’s reset circuit for monitored contact tracking.

Q: Can I replace a legacy 774150 with a newer PNOZsigma expansion unit?

A: Yes, but it is not a direct drop-in swap. The 774150 uses a 90mm housing with traditional fixed screw terminal geometry. Newer PNOZsigma modules are narrower (22.5mm–45mm) and utilize different expander ribbon connectors or wiring topologies. Stick with the 774150 to avoid panel rewiring and drawing updates.

Q: Why buy New Surplus instead of ordering directly from factory lead-times?

A: Supply chain disruptions often push factory lead times out by weeks or months. Our surplus stock consists of genuine, factory-sealed or fully tested unused units sourced from canceled project inventories, giving you instant availability without compromising on OEM quality or safety standards.
